Dehler 34 - Electrical Devices in Hull

D E H L E R 3 4


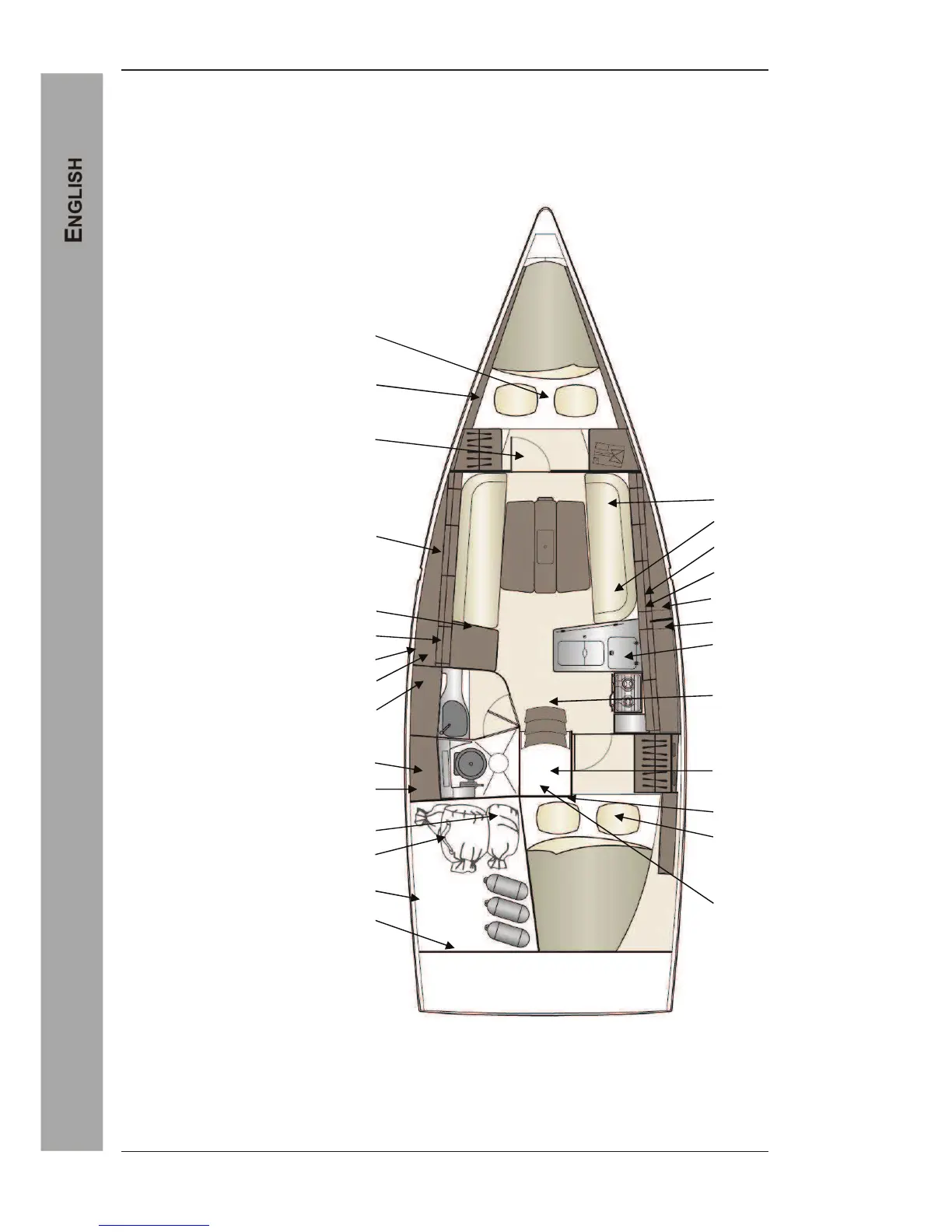

Overview electrical devices hull
1. speaker
2. 220V socket
3. refrigerator
4. elec. bilge pump
5. 90Ah engine battery
6. fuse voltmeter
7. fuse to service battery
8. main switch engine battery
9. fuel sensor
10. vent engine room
11. heater
12. galvanic isolator
13. computer autopilot
14. earth leakage circuit breaker
15. 220V socket boiler
16. Fluxgate-compass
17. shower pump
18. sensor black water
19. DC-panel
20. VHF
21. radio
22. panel heater
23. plotter
24. Powerboard
25. battery charger
26. inverter
27. AC-panel
28. main switch service-battery
29. service-battery
30. main fuses
31. relay charging current
32. disconnection point mast
33. log / echo sounder
34. fresh water pump
35. sensor fresh water
1
27
3
19-23
4
5-7
9
10
8
12-14
11
16
17
24
1
33
34
35
25 & 27
29-31
18
28
26
32
2
15
2
