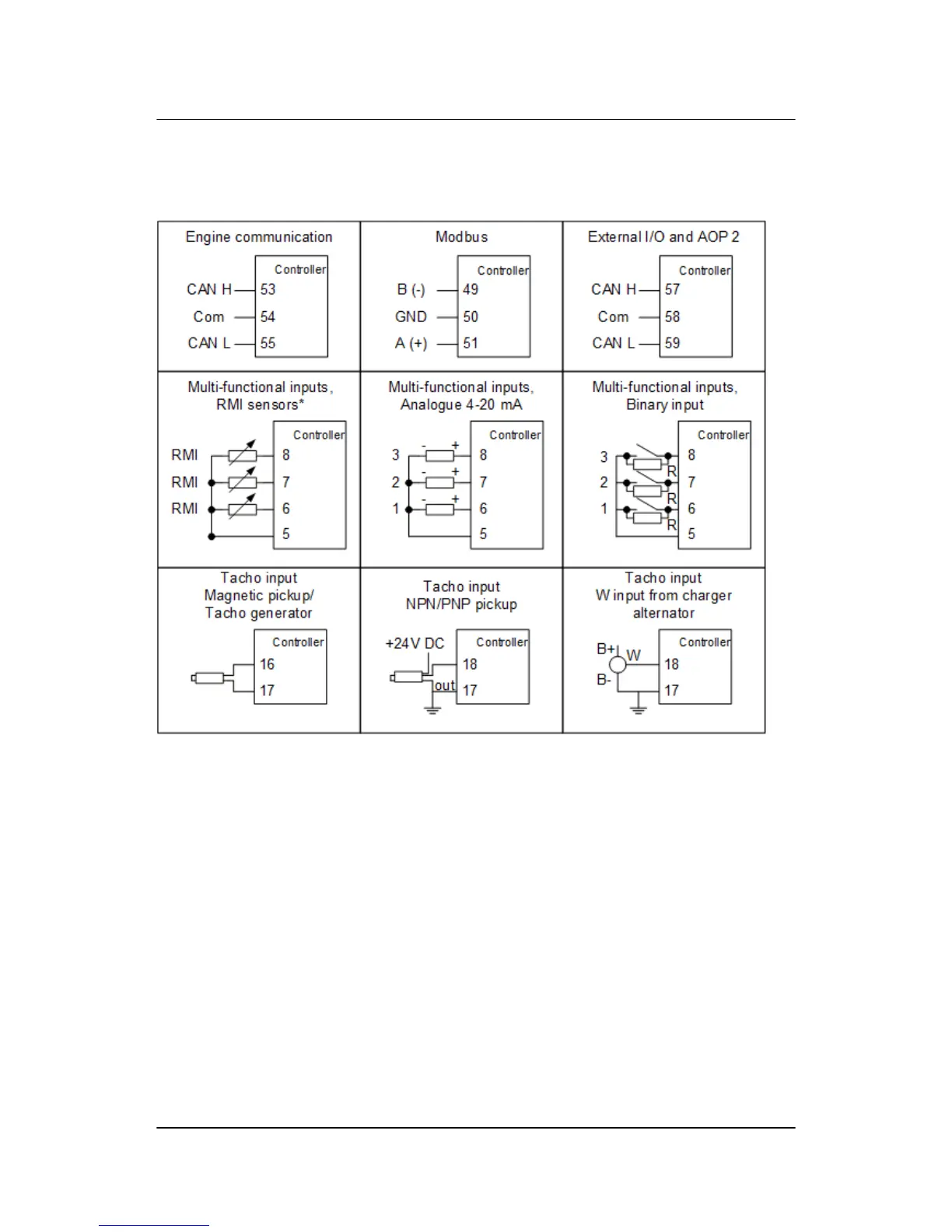

4.2 DC connections
* The illustration for the RMI sensors also apply to Pt1000 - but note that only multi-inputs 6 and 7 support
Pt1000.
AGC 100 installation instructions
4189340752 UK
Wiring
DEIF A/S Page 12 of 28
