Deif AGC 100 Installation Instructions

2.1.2 Tightening torques
Unit panel door mounting: 0.3 Nm, 2.7 lb-in (see diagram in "Unit dimensions and panel cutout")
Plug connections (terminals): 0.5 Nm, 4.4 lb-in

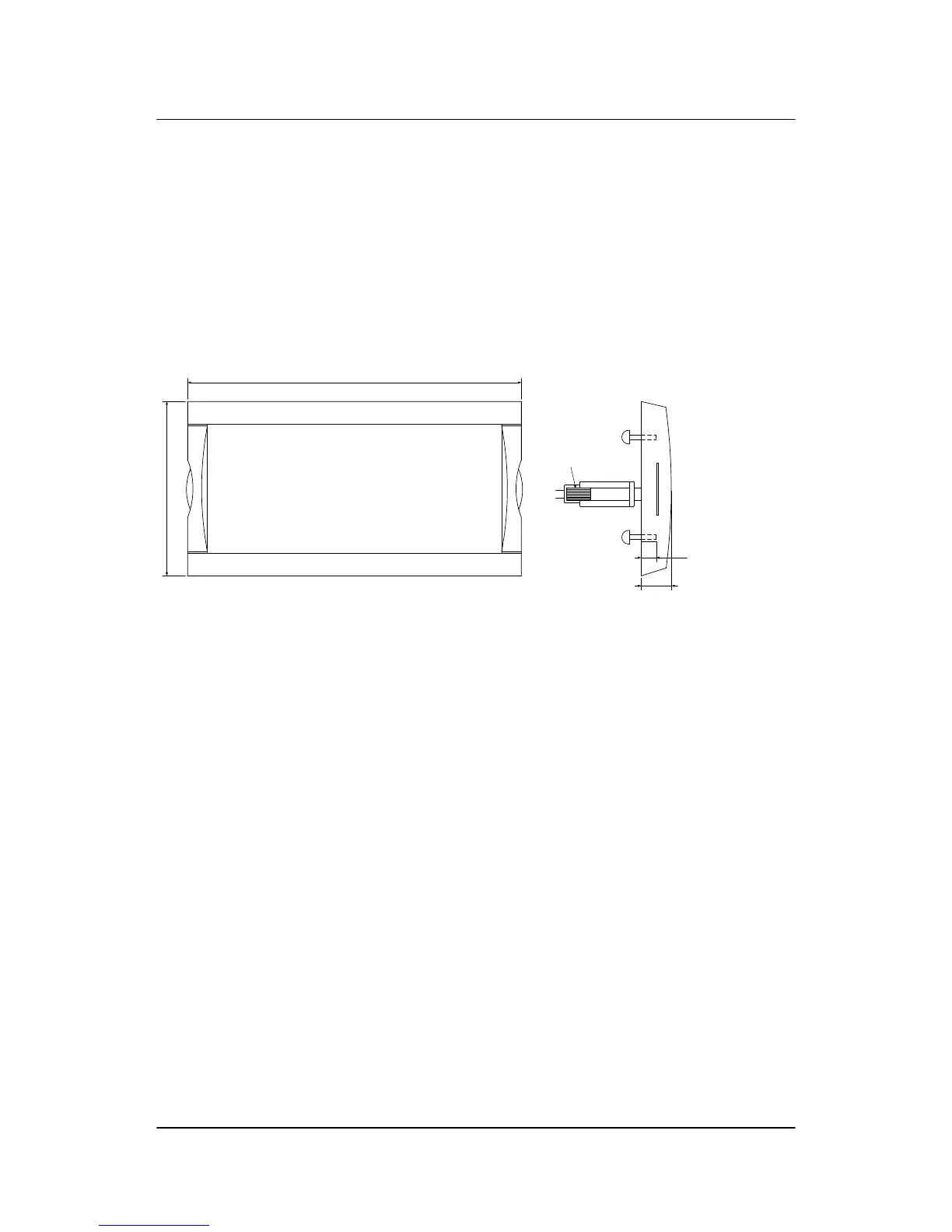

AOP-1 and AOP-2 (see diagram below)
Panel door mounting: 0.7 Nm, 6.2 lb-in
Sub-D screw: 0.2 Nm, 1.8 lb-in
DC-DC converter terminals: 0.5 Nm, 4.4 lb-in
220.0 (8.661)
115.0 (4.528)
Display
20.0 (0.787)
0.7 Nm
Screw M3
Bossard BN5687
or similar
0.2 Nm
9P Female
Sub 0
connector
Max. 10 mm
Min. 6 mm
AGC 100 installation instructions
4189340752 UK
Mounting
DEIF A/S Page 6 of 28
