2. Mounting
2.1 AGC 100 mounting
The unit is designed for flush mounting by means of eight fixing clamps (IP52), which are included at delivery.
To have IP65, the unit must be ordered with option L (12 fixing clamps and a gasket).

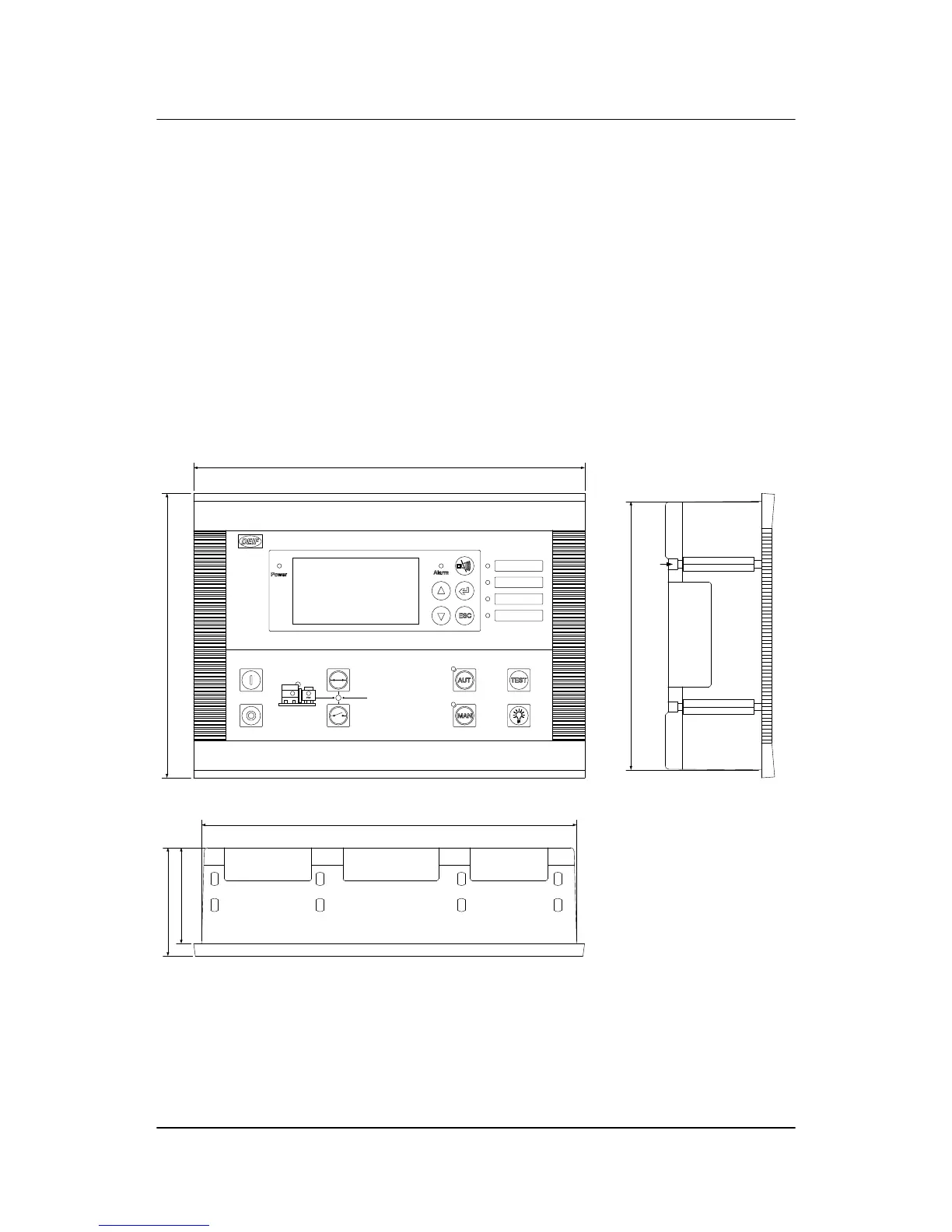

2.1.1 Unit dimensions and panel cutout
The unit is designed for mounting in the panel front.
In order to ensure optimum mounting, the panel door must be cut out according to the following measure-
ments:
H × W = 151.00 × 211.00 + 1.00 mm
H × W = 5.94" × 8.31" + 0.04"
Alarm 1
Alarm 2
Alarm 3
Alarm 4
160.0 (6.30)
220.0 (8.66)
151.0 (5.94)
211.0 (8.30)
61.0 (2.40)
54.0 (2.13)
Multi-line AGC 100
0.3 Nm
AGC 100 installation instructions
4189340752 UK
Mounting
DEIF A/S Page 5 of 28
