MIB Installation Instructions and Reference Handbook
DEIF A/S
Page 14 of 50

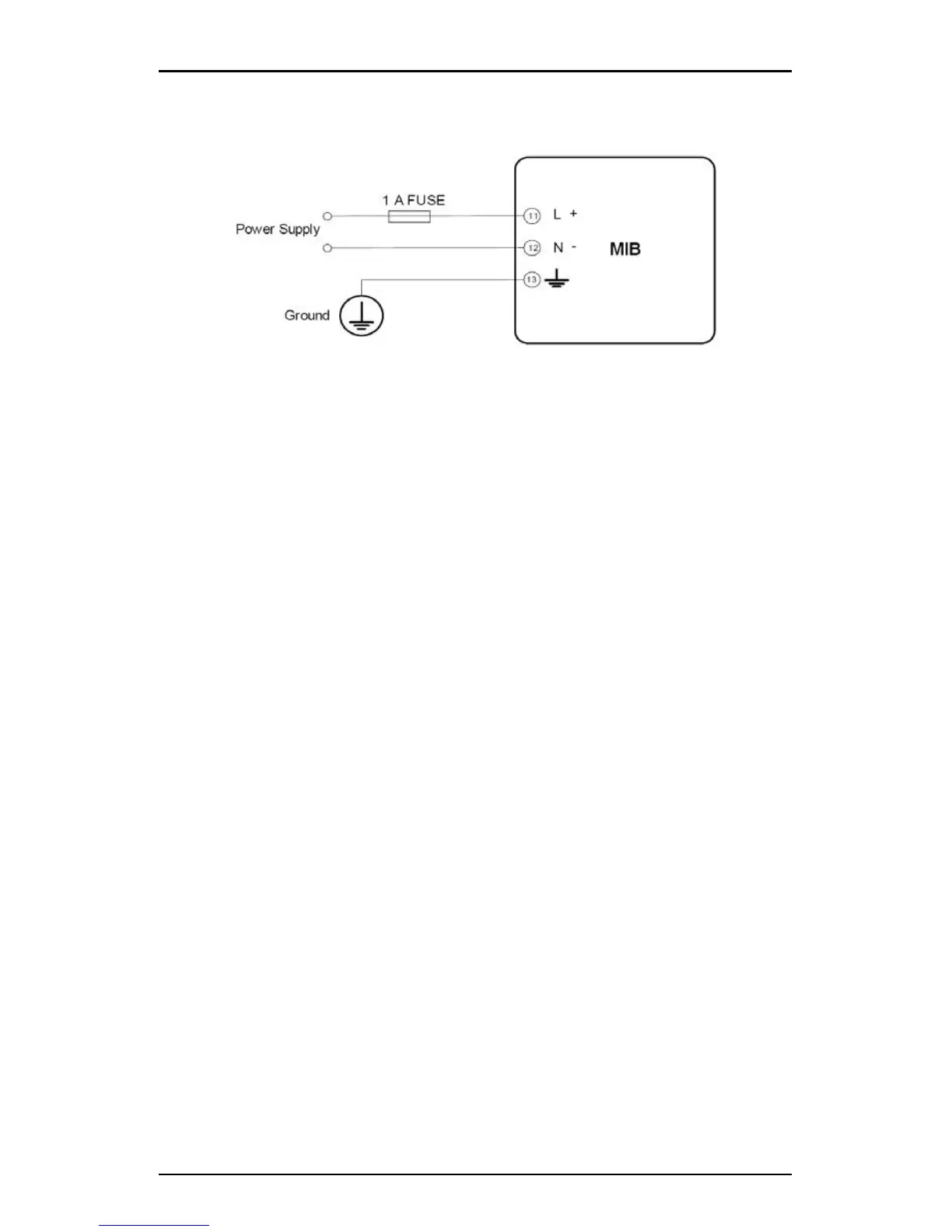

Auxiliary power supply
100~415V AC, 50-60Hz (100~300V DC).
The wire of the power supply could be AWG22-16 or 0.6-1.3mm
2
. A fuse
(typically 1A/250V AC) should be used in the auxiliary power supply loop.
For safety reasons we recommend to connect terminal no. 13 to the safety
earth systems of switchgear.
