MIB Installation Instructions and Reference Handbook
DEIF A/S
Page 21 of 50
Most used wiring method

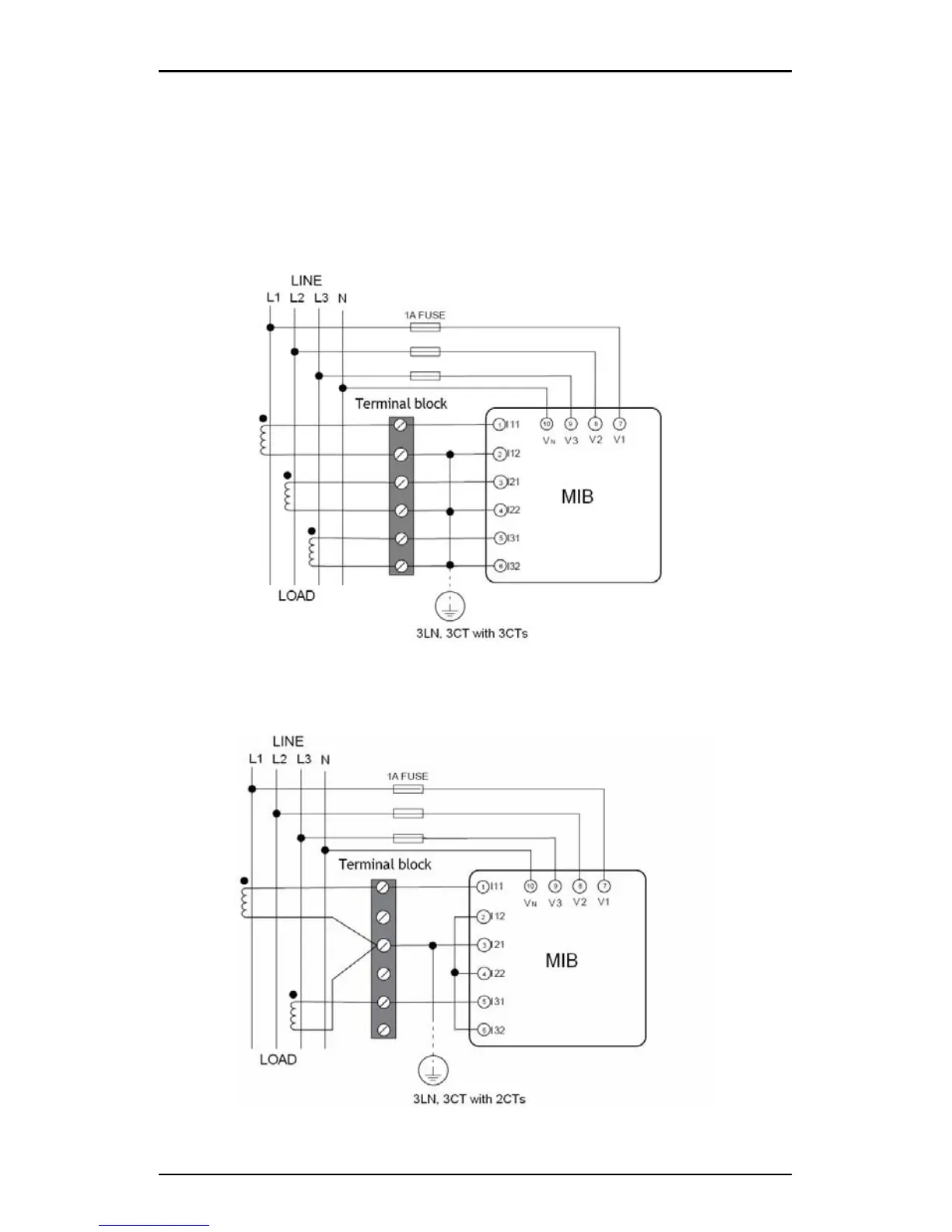

The voltage and current wiring methods are shown in one drawing. The MIB
meter will only give correct readings if the settings of the meter and the
wiring are correct.
3LN, 3CT with 3 CTs: Selected wire mode 3LN, 3CT
3LN, 3CT with 2 CTs: Selected wire mode 3LN, 3CT
