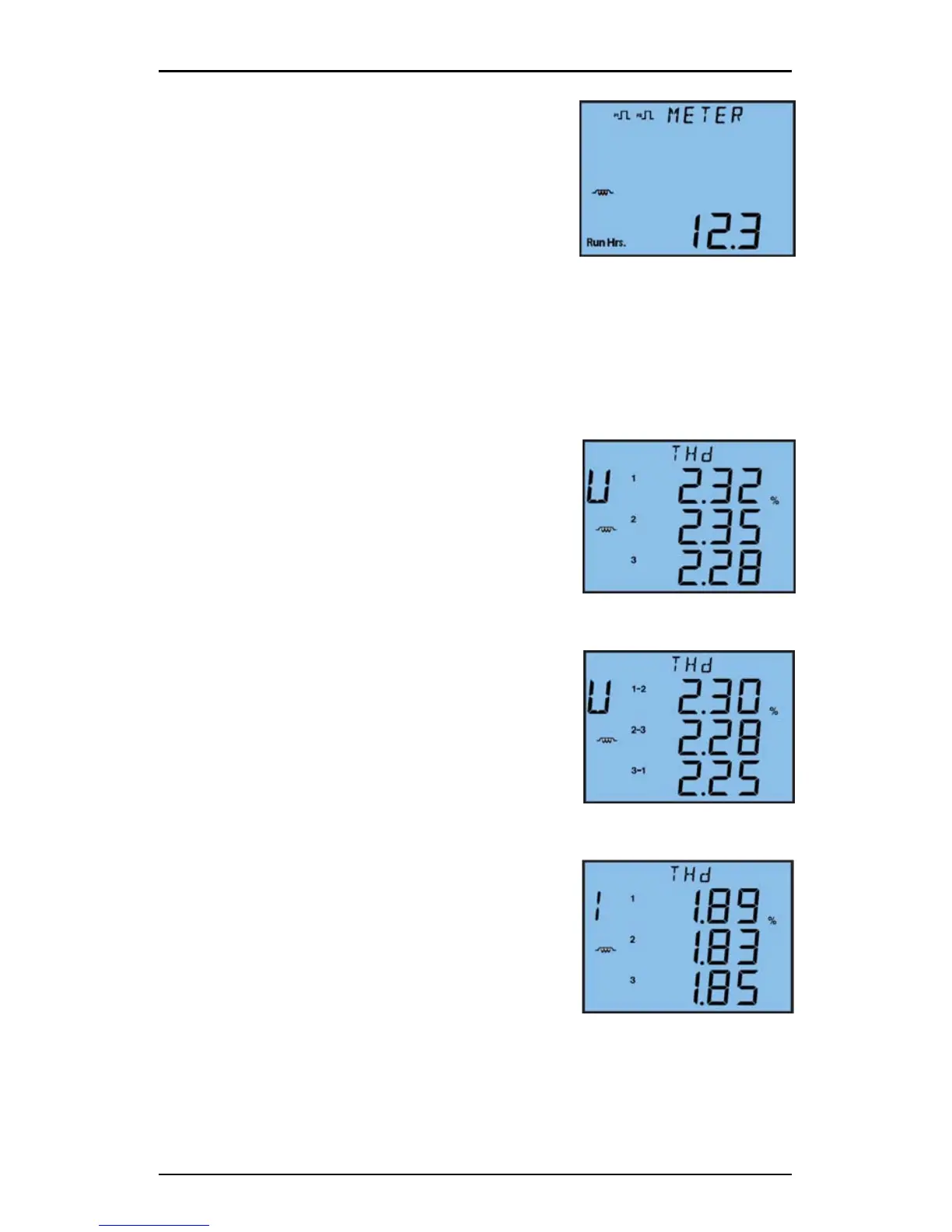

Screen no. 7
Run time: Run_Hour
► E to get back to the first screen
Power quality data
Press the H key to display power quality data.
Screen no. 1 (voltage wiring 2LN or 3LN)
THD of phase-neutral voltage THD_U1
THD of phase-neutral voltage THD_U2
THD of phase-neutral voltage THD_U3
or
Screen no. 1 (voltage wiring 2LL or 3LL)
THD of phase-phase voltage THD_U12
THD of phase-phase voltage THD_U23
THD of phase-phase voltage THD_U31
► H
Screen no. 2
THD of phase current THD_I1
THD of phase current THD_I2
THD of phase current THD_I3
► H to get back to the first screen
