Baud rate settings (only MIB 7000C):
Communication setting of the MIB 7000C is 8 bit,
no parity, 1 start bit and 1 stop bit.
The Baud rate can be set as follows:
1200, 2400, 4800, 9600, 19200, 38400.
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen

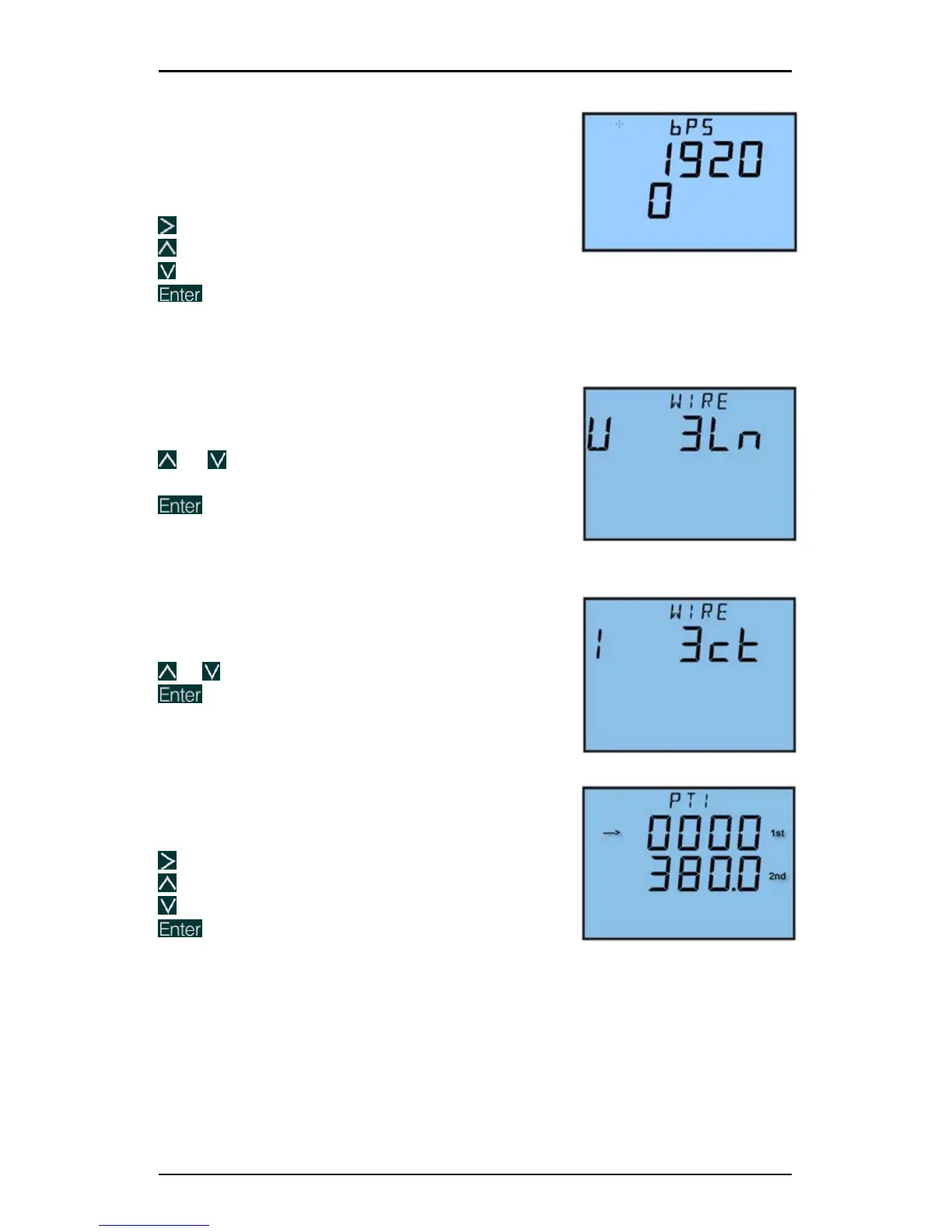

Example: 19200
Screen no. 1
Voltage input wiring:
Voltage input wiring can be one of five modes:
3LN (normal), 1LN, 2LN, 2LL and 3LL
or to select from 3LN, 2LN, 1LN, 2LL and
3LL
to accept changes and move to next screen
Example: 3LN
Screen no. 2
Current input wiring:
Current input wiring can be one of three modes:
3CT, 2CT and 1CT
or to select from 3CT, 2CT and 1CT
to accept changes and move to next screen
Example: 3CT
Screen no. 3
Primary value of voltage transformer:
PT1 value is an integer from 50 to 1000000. Unit
is Volt.
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: 380V
Note: The display is divided into 2 lines. Count from the arrow in the left hand
side.
