Maintenance an calibration
The following points are important to sustain
correct dosing of etergents. Note that
these two tasks should be performed by an
authorised DeLaval service engineer.
• The tubes in the peristaltic pumps should
be replaced at least two times a year.
• The dosing volume (P6-P8) of the
detergent pumps should be checked
every third month. The dosing capacity
(P32-P34) may need to be adjusted.
Starting cleaning or rinsing
from the touch screen
Note: Any ongoing backflush process must
first be finished before cleaning or rinsing
can be started.
1. Ensure that the milking station is in
manual mode.
2. Remove any cow that might be in the
milking station.
After treatment window
Note: Both gates should be closed to
prevent a cow from entering before the
system cleaning has been started. Closing
and opening gates is done in the Stall
control window.
3. Press the tab After Treatment on the
touch screen to display the After treatment
window.
4. In the After treatment window, press the
Cleaning and Rinsing button. This will open
the Cleaning and rinsing window.
1.9.3 Additional rotation
Note! The retention bar is used for keeping cows
in the rotary platform for an additional rotation,
automaticaly accorting to farm settings or man-
ually. Press the additional rotation button to tog-
gle the position of the retention between high and
low position.

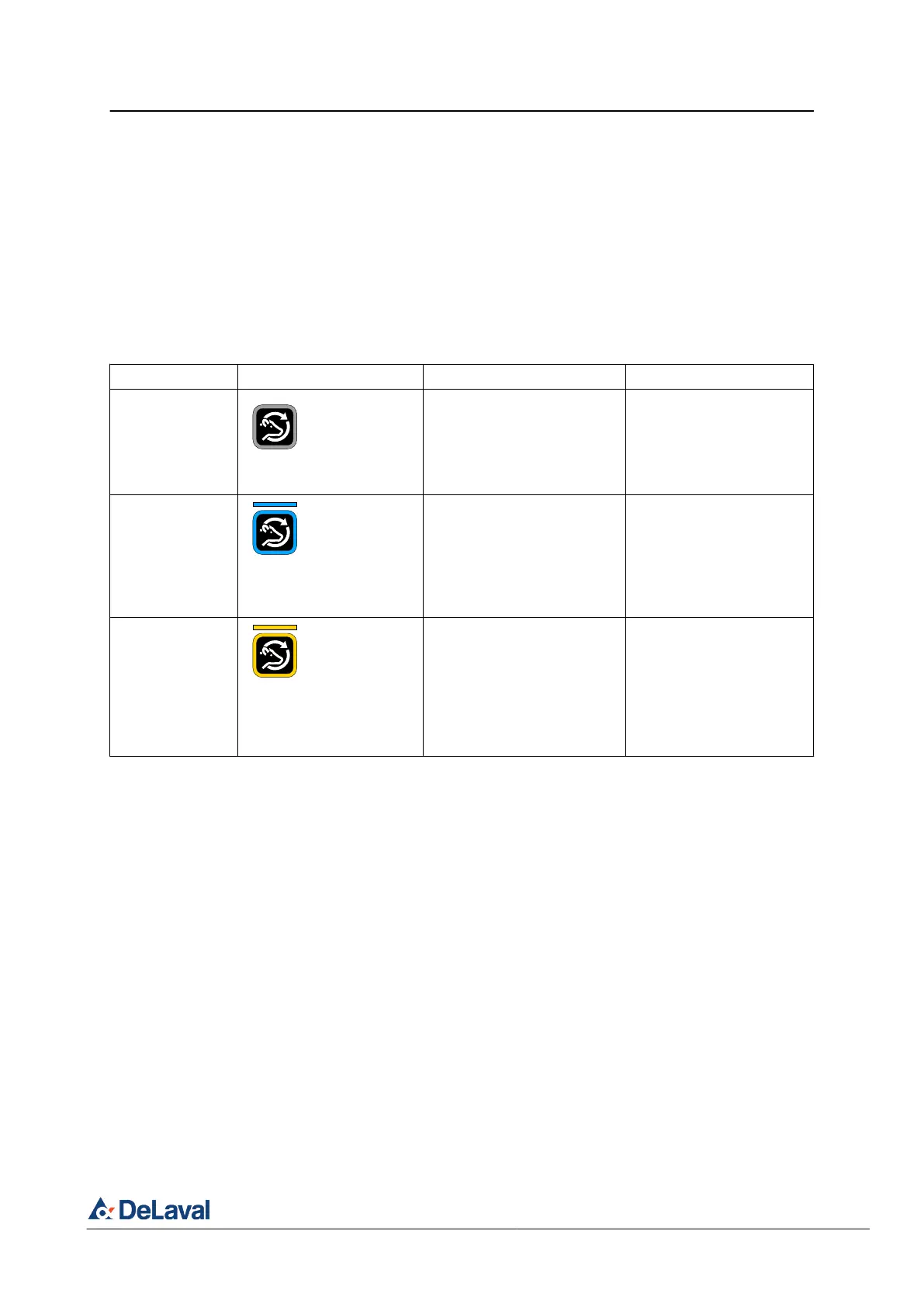

Status Indication Description Possible actions
No additional
rotation (Reten-
tion bar is in High
position)
The indicator is off.
The animal will exit the plat-
form.
Press:
Retention bar is lowered.
Press and hold:
N/A
Second Rotation
(Retention bar is
in Low position)
The indicator is steady
cyan.
The retention bar has been
automatically or manually
lowered and the animal will
continue an additional round
on the platform.
Press:
Retention bar is raised.
Press and hold:
N/A
Voluntary Addi-
tional rotation
(Retention bar is
in high position)
The indicator is steady
yellow.
The animal has voluntarily
remained on the platform for
an additional rotation.
Press:
Retention bar toggles
between high and low
position.
Press and hold:
N/A
1.9.4 Separate animal
Note! The separate animal function is used to
separate an animal from the rest of its group and
in the predefined sorting area after milking pass.
