4.4 Reattaching a cluster
Note! Always check the udder to see if the animal
is milked out or if a reattach is necessary.
Note! When reattaching a cluster to an animal;
according to farm settings, different parameters
will be applied.
Note! If a cluster must be reattached near the exit
of a rotary parlour without retention bar it is nec-
essary to stop the platform rotation, reattach the
cluster, and manually position a chain behind the
animal for a second rotation.

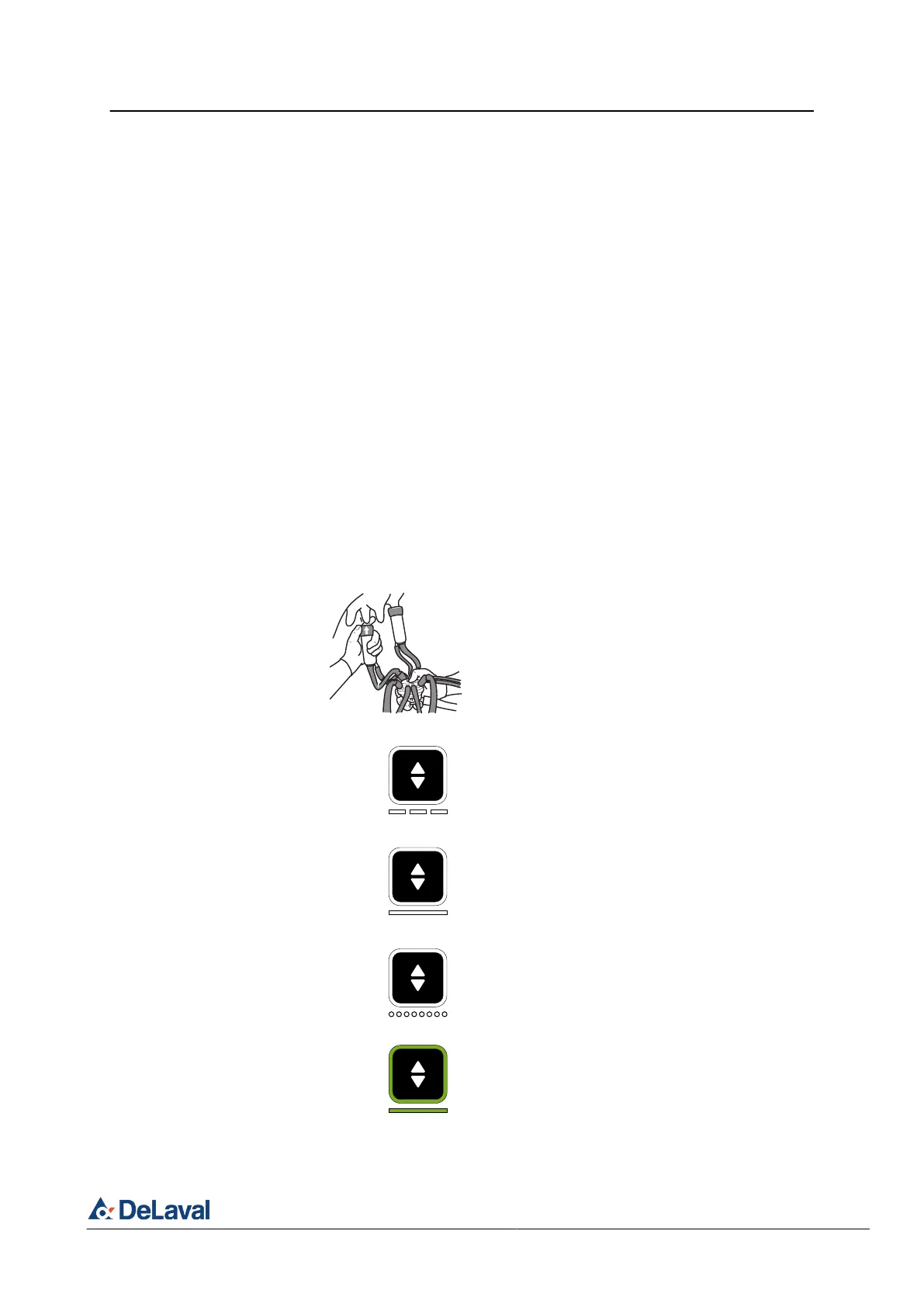

1. Press the large button to release the clus-
ter.
Note! With comfort start there is no need to
push the button, vacuum is applied to the
cluster when it is lifted.
Note! If the animal is incorrectly blocked for
milking, see Ä Chapter 4.2 "Overriding a
blocking" on page 42.
2. Attach the cluster to the udder of the cow.
Note! Avoid that air enters the cluster
before the actual attachment.
Note! The 2
nd
pre-milking time, which is
active at a reattach, is shorter than the 1
st
pre-milking time.
ð
The large button indicator light flashes
slowly in white until the milk flow is
above the low flow limit.
When the milk flow is above the low
flow limit, the large button indicator light
turns into a solid white.
When the flow is below the take-off
limit, the large button indicator light
flashes slowly in white until the cluster
is retracted.
The large button indicator light turns to
solid green at normal take-off.
