No. Name Range Default Description/optionsNo. Name Range Default Description/options
0 = no acidic cleaning0 = no acidic cleaning
1 = one alkaline, one acidic cleaning1 = one alkaline, one acidic cleaning
2 = two alkaline, one acidic cleaning2 = two alkaline, one acidic cleaning
3 = etc.3 = etc.
Maintenance an calibration
The following points are important to sustain
correct dosing of etergents. Note that
these two tasks should be performed by an
authorised DeLaval service engineer.
• The tubes in the peristaltic pumps should
be replaced at least two times a year.
• The dosing volume (P6-P8) of the
detergent pumps should be checked
every third month. The dosing capacity
(P32-P34) may need to be adjusted.
Starting cleaning or rinsing
from the touch screen
Note: Any ongoing backflush process must
first be finished before cleaning or rinsing
can be started.
1. Ensure that the milking station is in
manual mode.
2. Remove any cow that might be in the
milking station.
After treatment window
Note: Both gates should be closed to
prevent a cow from entering before the
system cleaning has been started. Closing
and opening gates is done in the Stall
control window.
3. Press the tab After Treatment on the
touch screen to display the After treatment
window.
4. In the After treatment window, press the
Cleaning and Rinsing button. This will open
the Cleaning and rinsing window.
4.5 Manually sorting a cow once to a pre-
defined sorting area
This section describes how to manually sort an
animal to a predefined area when exiting the par-
lour after a milking session.
Note! Manually sorting an animal once to a pre-
defined area can also be done from the IDD or
rotary controller.
n

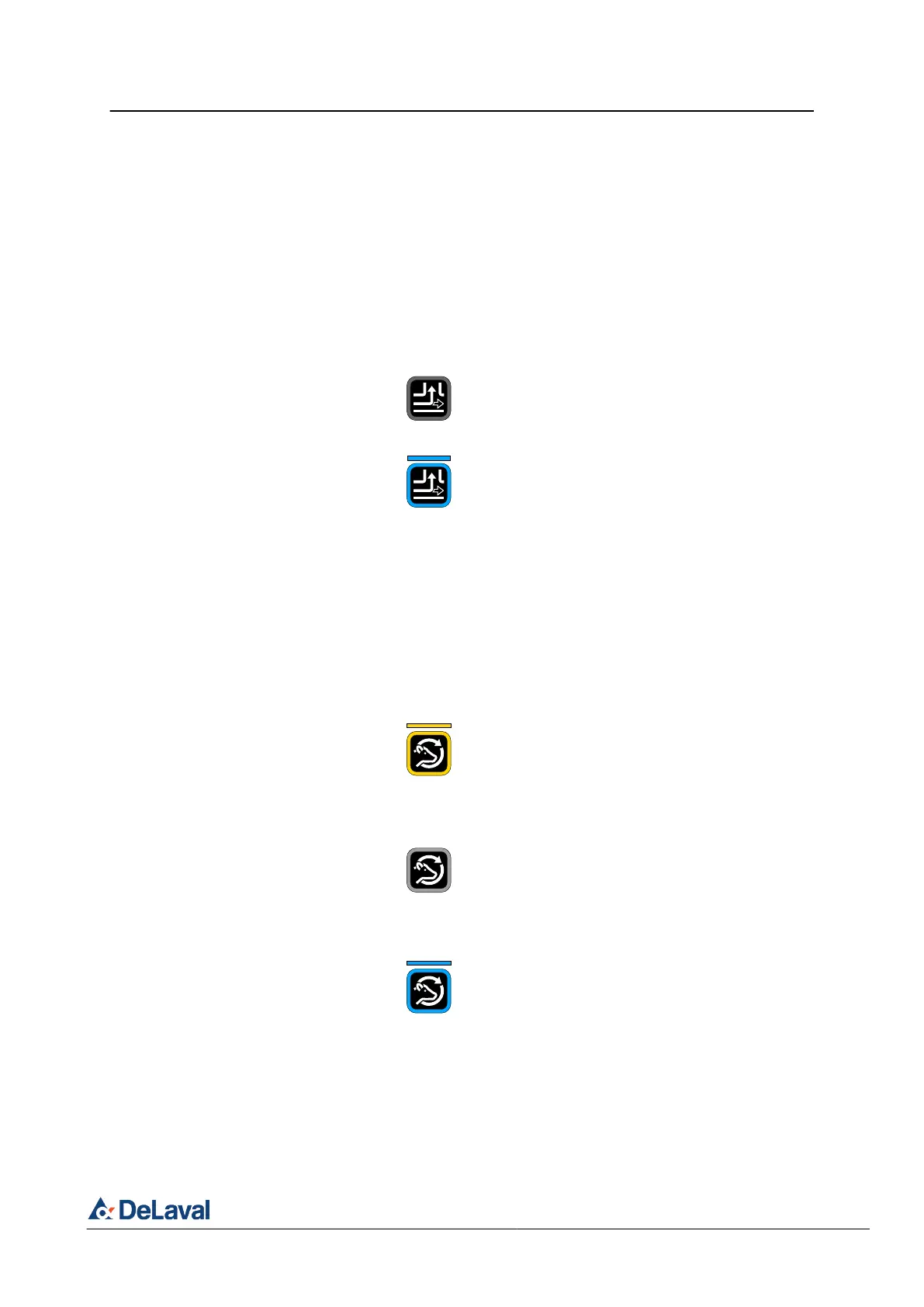

Press the [Sort] button to activate the sep-
arate animal.
Note! Pressing [Sort] again cancels the
sorting of the animals.
ð
The indicator light is steady cyan indi-
cating that the animal will be separated,
from the rest of its group, to the prede-
fined sorting area that has been set
according to the farm settings.
4.6 Manually raising / lowering the reten-
tion bar
The retention bar is used for keeping cows in the
rotary parlour for a second rotation. The retention
bar can be raised or lowered manually as descri-
bed in below.
If the indicator light is solid yellow, the animal has
voluntarily remained on the platform for an addi-
tional rotation.
n
Press [second rotation] to lower the reten-
tion bar.
Note! Pressing the [second rotation] again,
raises the retention bar and the indicator
light turns off indicating that the retention
bar is raised.
ð
The indicator light is steady cyan to
indicate that the retention bar is low-
ered to keep the animal for a second
rotation.
269169
Fig. 12: Voluntary second rotation.
