Delem
V1204, 2.26
Parameter 59:
Angle AD max
Range : 0 - 255
Unit : AD value
Default : 255
Function
The AD value corresponding with the maximum angle. Only valid when angle option enabled.
Parameter 60:
Angle prestop positive
Range : 0 - 99
Unit : AD value
Default : 0
Function
Due to the inertia of the Angle system there can be some overshoot after the control output
has been switched off. To prevent such overshoot, the 'Angle prestop' can be programmed.
This parameter can be regarded as a programmable offset. The control will take this offset
into account when positioning the Angle. When the Angle system approaches the
programmed position, the control output is switched off at a certain distance (Angle prestop)
before the Angle has reached position. The ‘Angle prestop positive’ must be programmed for
Angle movement in the positive direction.

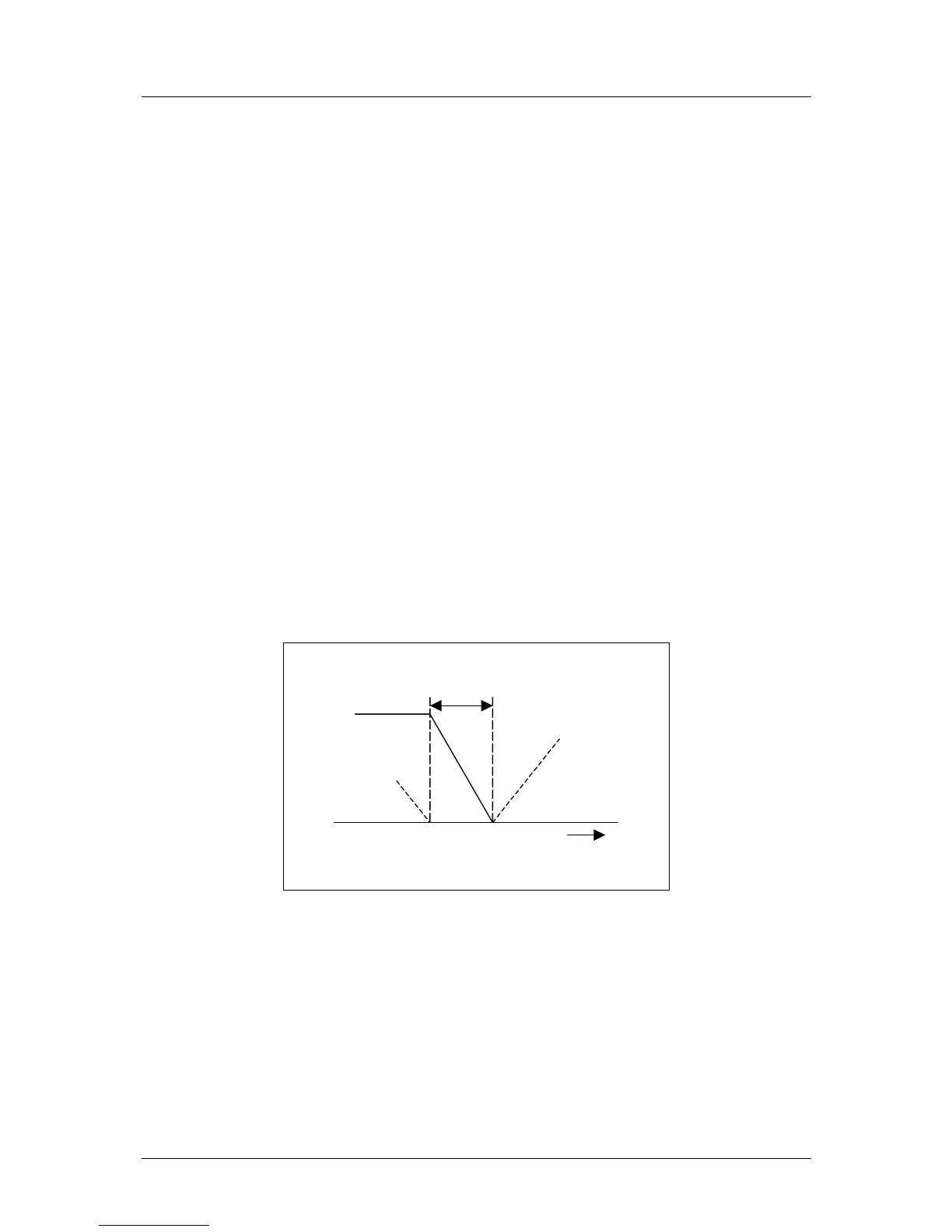

position
Angle prestop
programmed
position
control output
is switched off
The value is programmed in AD-points: a converted digital value of the position feedback
voltage of the potentiometer.
