Part Number: 9291458 REV00 12/19 17
Section 2 Installation

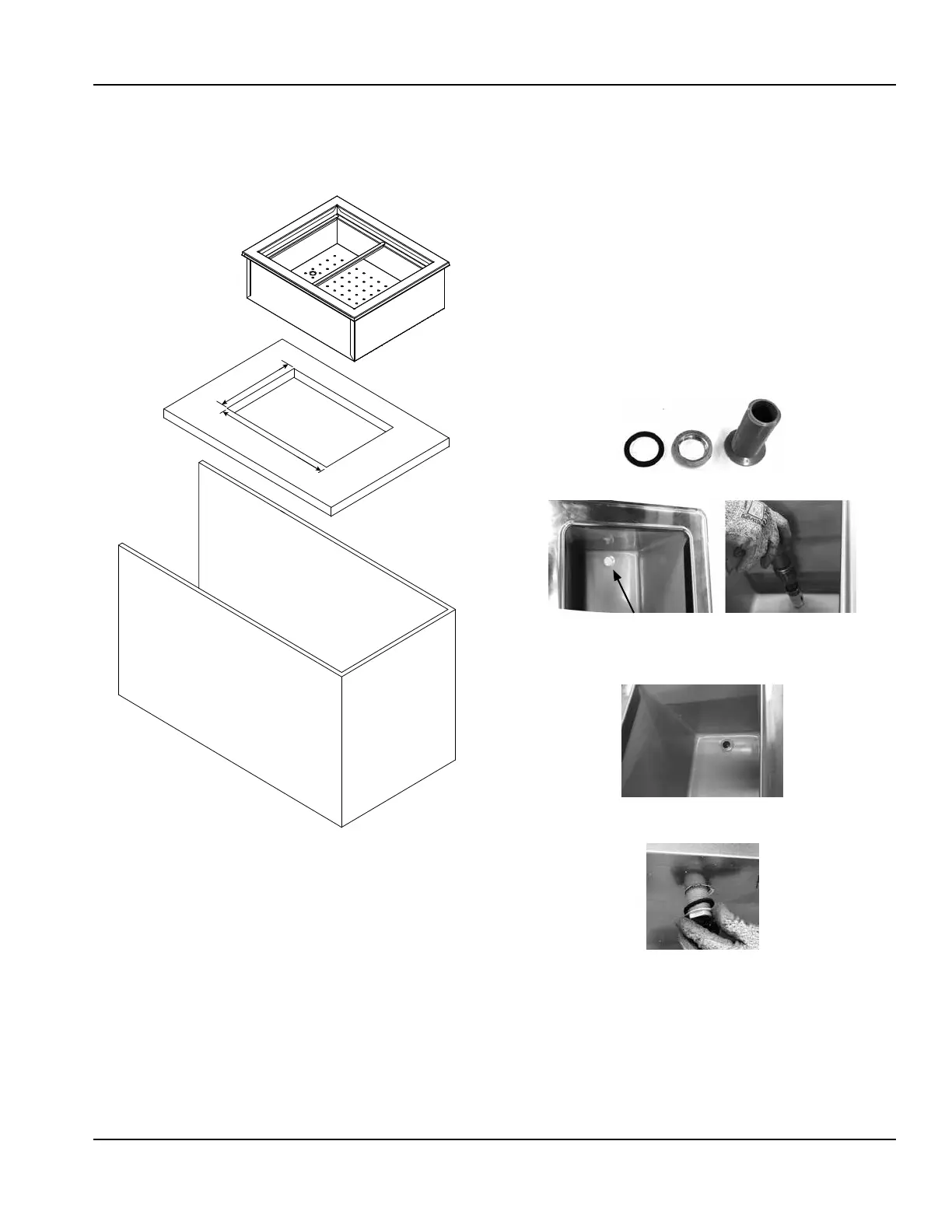

Drop-In Counter Installation
ICE COOLED DROPIN UNITS
N8000, N8000N, N8000-R
Counter Cutout Dimensions
Are Model Specic
1. Place the ice cooled drop-in unit through the counter
cutout.
2. A gasket is installed in the flange of each unit.
The weight of the unit on the gasket forms a seal
preventing liquids from seeping into the cut-out
opening.
3. The 1” diameter drain on N8000, N8000N, N8000-R
models is shipped loose and must be connected during
installation.
A. Provided 1” (25mm) drain, nut and washer must
be field installed to an appropriate container or
floor drain following local code requirements.
Sinks come standard with 1-1/2” basket strainer
assemblies.
B. Remove/drill foam out of drain hole.
C. Apply thin ring of plumbers putty around the
drain.
D. From the inside drop the drain into the drain hole.
E. From the outside secure the drain with the washer
and nut.
F. Tighten the nut with channel locks, use a fork to
hold the drain in place if necessary.
G. Clean up excess plumbers putty.
