Delfield N8143B-E - 8600 P Self-Contained Combo Hot;Cold Drop-In Units

26 Part Number: 9291458 REV00 12/19
Installation Section 2
SELFCONTAINED COMBO HOT/COLD DROPIN UNITS
N8600P
For any non-standard installation consult the factory.

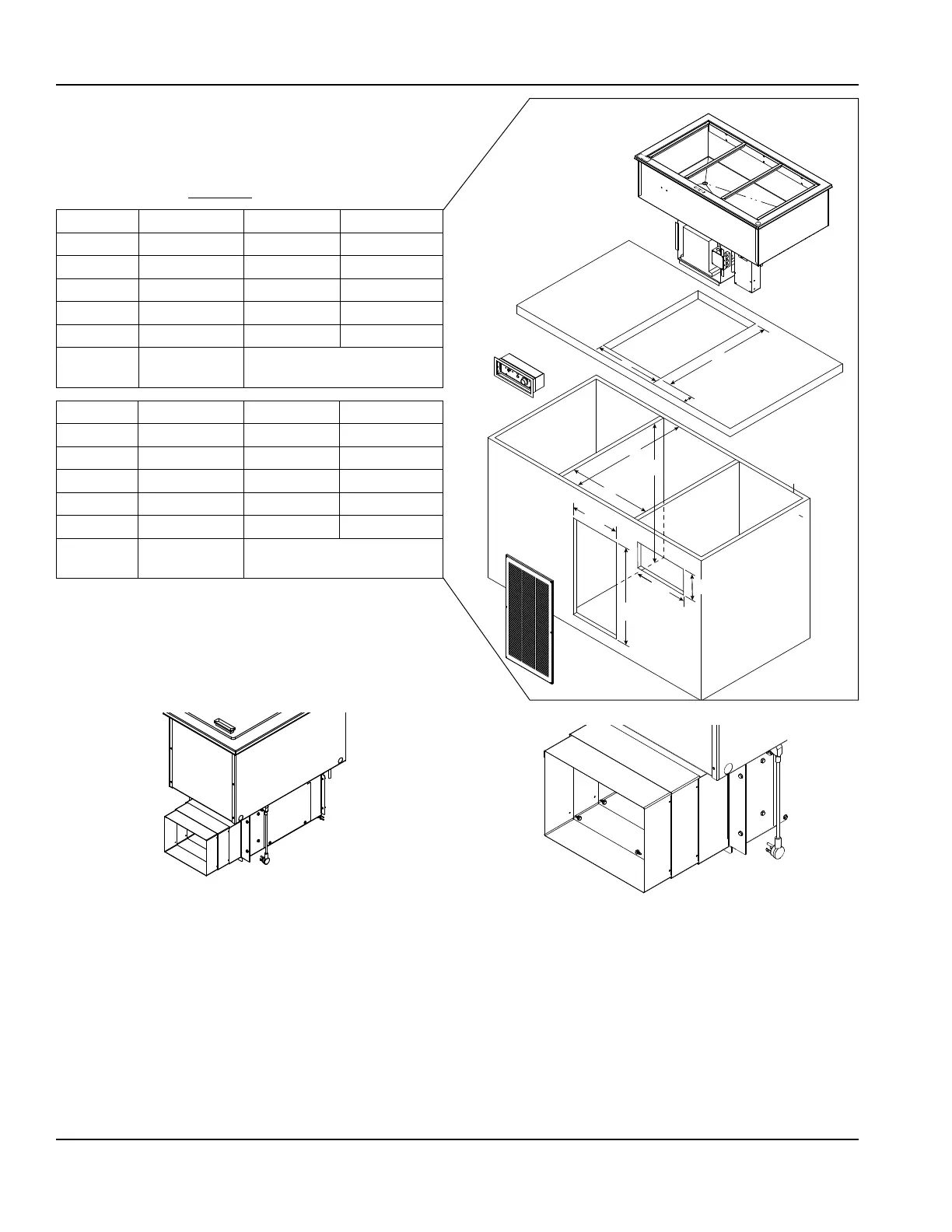

1. Cabinet interior minimum dimensions:
Dimension N8630P N8643P N8656P
A 29.75"/76cm 42.5"/108cm 55.25"/140cm
B 29"/74cm 29"/74cm 29"/74cm
C 28"/71cm 28"/71cm 28"/71cm
D 29.75"/76cm 42.5"/108cm 55.5"/140cm
E 25"/64cm 25"/64cm 25"/64cm
F 4.75”/12cm Min. 2.75”/7cm -
Max. 4.75”/12cm
Dimension N8669P N8681P N86120P
A 68"/173cm 80.75"/205cm 101.75"/258cm
B 29"/74cm 29"/74cm 29"/74cm
C 28"/71cm 28"/71cm 28"/71cm
D 68"/173cm 80.75"/205cm 101.75"/258cm
E 25"/64cm 25"/64cm 25"/64cm
F 4.75”/12cm Min. 2.75”/7cm -
Max. 4.75”/12cm
2. Place the condensing unit through the counter cutout.
3. Extend the telescoping duct from the front of the
condensing unit to the back of the louver. This will
prevent recirculation of discharge air. Export models do
not have a telescoping duct, skip to step 6.
4. Put eight provided screws through the telescoping
duct side walls to hold it at the desired depth.
22.50”
(57cm)
C
E
D
A
B
18.50”
(47cm)
F
12.25”
(31cm)
4.25”
(11cm)
Use Screws to Secure Desired Depth
3 of 8 Screws Shown
5. Partitions must fully extend front to back and top to
bottom.
6. Louver cutout must extend to bottom of cabinet and
align with condenser face.
NOTE: The louver provided must be installed in front of
