Dell EMC Unity Series Installation Guide

Install the disk processor enclosure
There are two types of DPE(s). Each is 2U. One utilizes 3.5" disks, while the other
utilizes 2.5" disks. The installation procedure is identical, no matter which one you
have in your system.
The DPE has a Product Serial Number Tag (PSNT) attached to the front of the
chassis. On a DPE with 12 horizontal 3.5" drive slots, the tag is located on the top
edge near the right side, see Figure 1 on page 18.

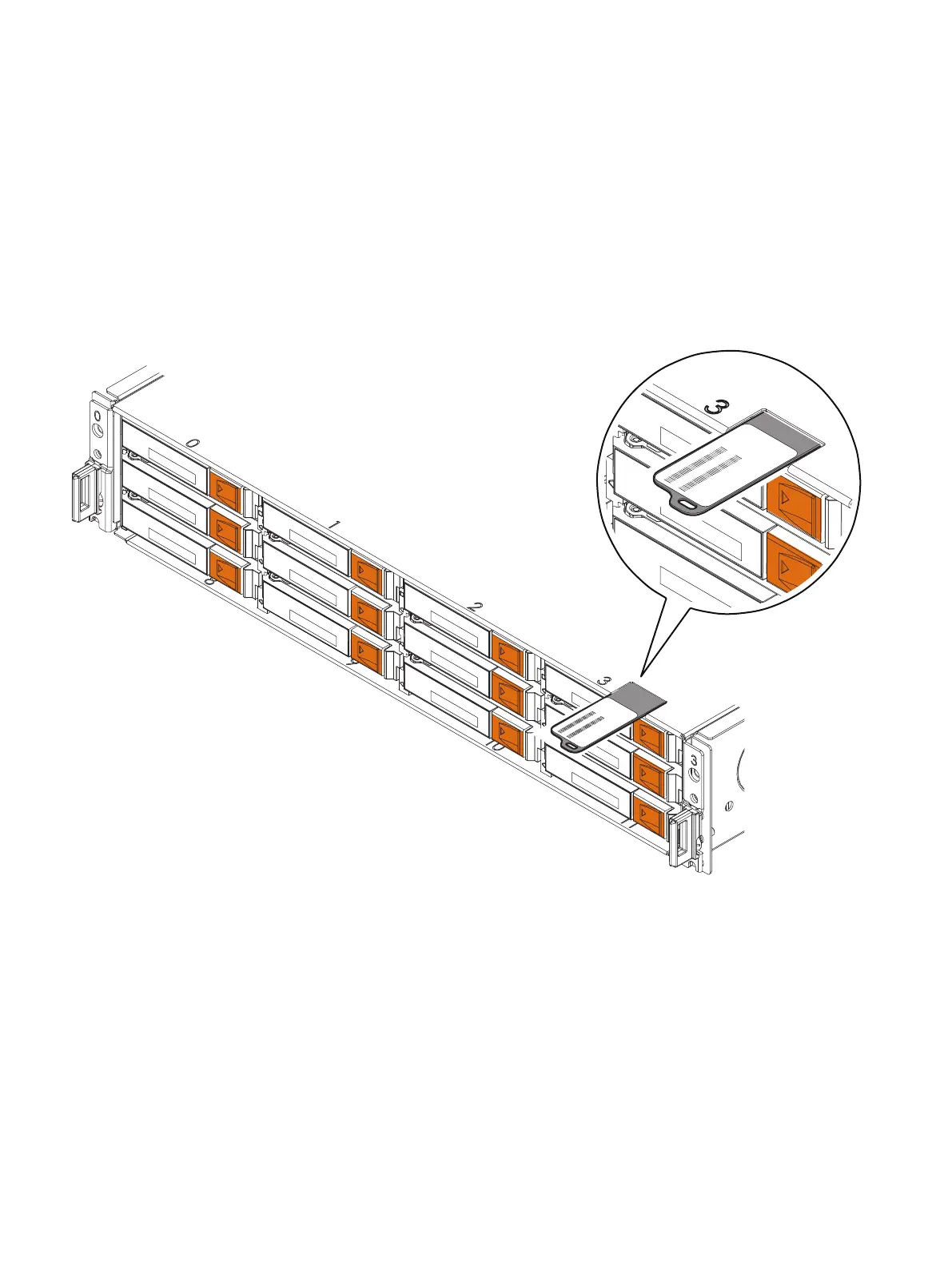

Figure 1 PSNT location on DPE with 12-drive slots
P
ROD ID/SN: FNM01234567891
P
N: 123-456-
7
89 (OBERON)
PR
OD ID/SN: FNM
0
1
2
3
4
5
6
7
8
9
1
PN: 1
2
3
-456-789 (O
BERO
N)
CL5779
On a DPE with 25 vertical 2.5" drive slots, the tag is located below the DPE power
status LED between drive slots 16 and 17, see Figure 2 on page 19.
Install your storage system components into a rack
18 Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
and Unity 650F Installation Guide

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
