Dell EMC Unity Series Installation Guide

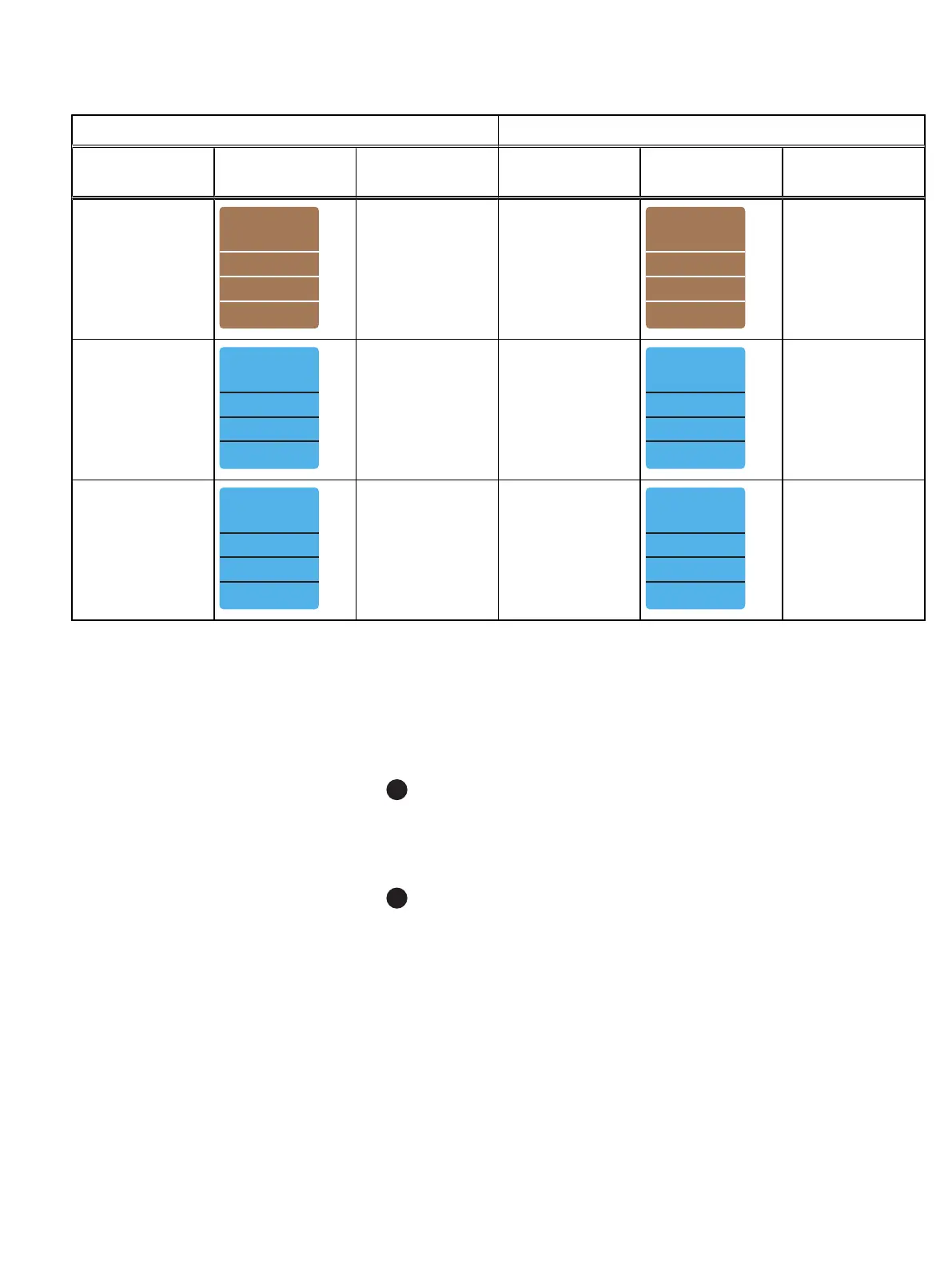

Expansion port cable labeling details Primary port cable labeling details
Label part
number
Label Port Label part
number
Label Port
046-004-467
B BE4
046-004-467_xx
B BE4
B BE4
B BE4
LCC B Port B 046-004-467
B BE4
046-004-467_xx
B BE4
B BE4
B BE4
LCC B Port A
046-004-460
A BE5
046-004-460_xx
A BE5
A BE5
A BE5
LCC A Port B 046-004-460
A BE5
046-004-460_xx
A BE5
A BE5
A BE5
LCC A Port A
046-004-468
B BE5
046-004-468_xx
B BE5
B BE5
B BE5
LCC B Port B 046-004-468
B BE5
046-004-468_xx
B BE5
B BE5
B BE5
LCC B Port A
2. Connect the existing DAE to the expansion DAE to extend that back-end.
If you have additional DAEs, add labels to the mini-SAS HD to mini-SAS HD
cables and use those cables to extend the bus. For more information about
cabling additional DAEs, see the associated Hardware Information Guide .
a. Connect port B on the link control card A (LCC A) of the lower-numbered
DAE to port A on the link control card A (LCC A) of the higher-numbered
DAE. [
1
]
LCC A is located on the lower portion of the DAE.
b. Connect port B on the link control card B (LCC B) of the lower-numbered
DAE to port A on the link control card B (LCC B) of the higher-numbered
DAE. [
2
]
LCC B is located on the upper portion of the DAE.
Connecting power to the DAE
Procedure
1. Verify that the cabinet circuit breakers are in the On position and that power is
connected to the cabinet.
2. Connect the power cables to the optional DAEs.
Cable and power up your DAE components
Connecting power to the DAE 65

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
