Dell EMC Unity Series Installation Guide

Cabling the first optional DAE to create back-end bus 1
Connect the first optional expansion DAE to port 1 of the DPE to create back-end bus
1 (BE1) and designate this DAE as enclosure 0 of this bus. We refer to the address of
this enclosure as BE1 EA0 (1_0).
Before you begin
To prepare for this cabling task:
l
Locate the mini-SAS HD cables to be used to connect to the newly installed
expansion DAE.
Typically these cables are 2-meters long. You use longer cables, typically 5-meters
or 8-meters, to connect enclosures located in different racks. Cables are shipped
without labels attached. The cables and ports are not colored.
l
Locate the sheet of cable labels provided.
Orient the cable connectors as described in the procedure that follows, making sure
that you do NOT connect:
l
A DAE expansion port 0 to another expansion port 0.
l
Any A-side ports to B-side ports.

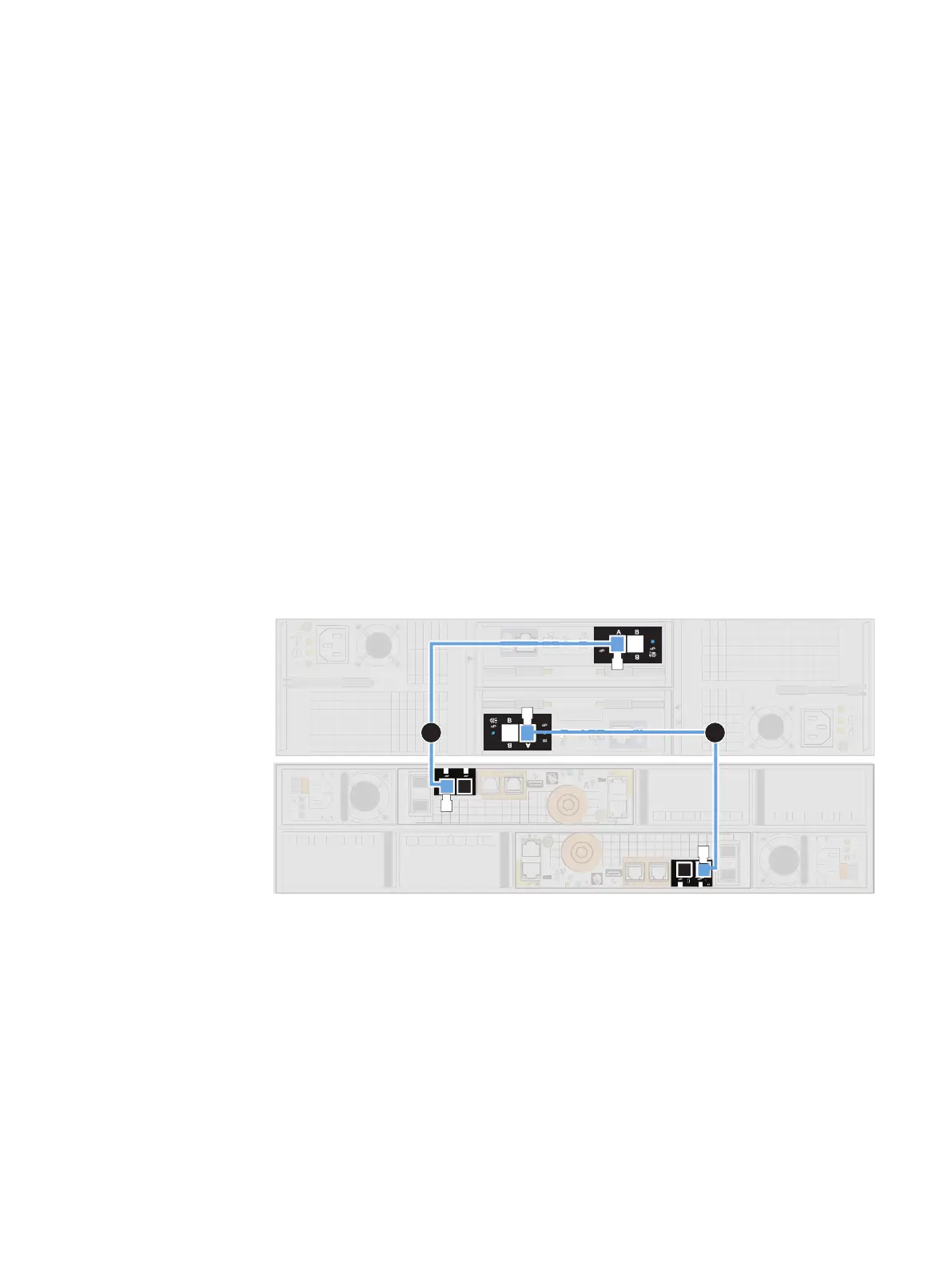

Use the following illustrations to complete this cabling task:
Figure 26
Example: DPE to DAE BE1 enclosure 0
DPE to 25-drive DAE SAS cabling
B
A
x4
x4
x4
AC
DC
AC
DC
0
1
x4
3
1 GbE
4
5
x4
MAC:
1
1
4
5
4
5
4
5
0 1
0
1
x4x4
x4
x4
0 1
x4
0 1
x4
12
DPE to 15-drive DAE SAS cabling
Cable and power up your DAE components
Cabling the first optional DAE to create back-end bus 1 55

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
