Dell EMC Unity Series Installation Guide

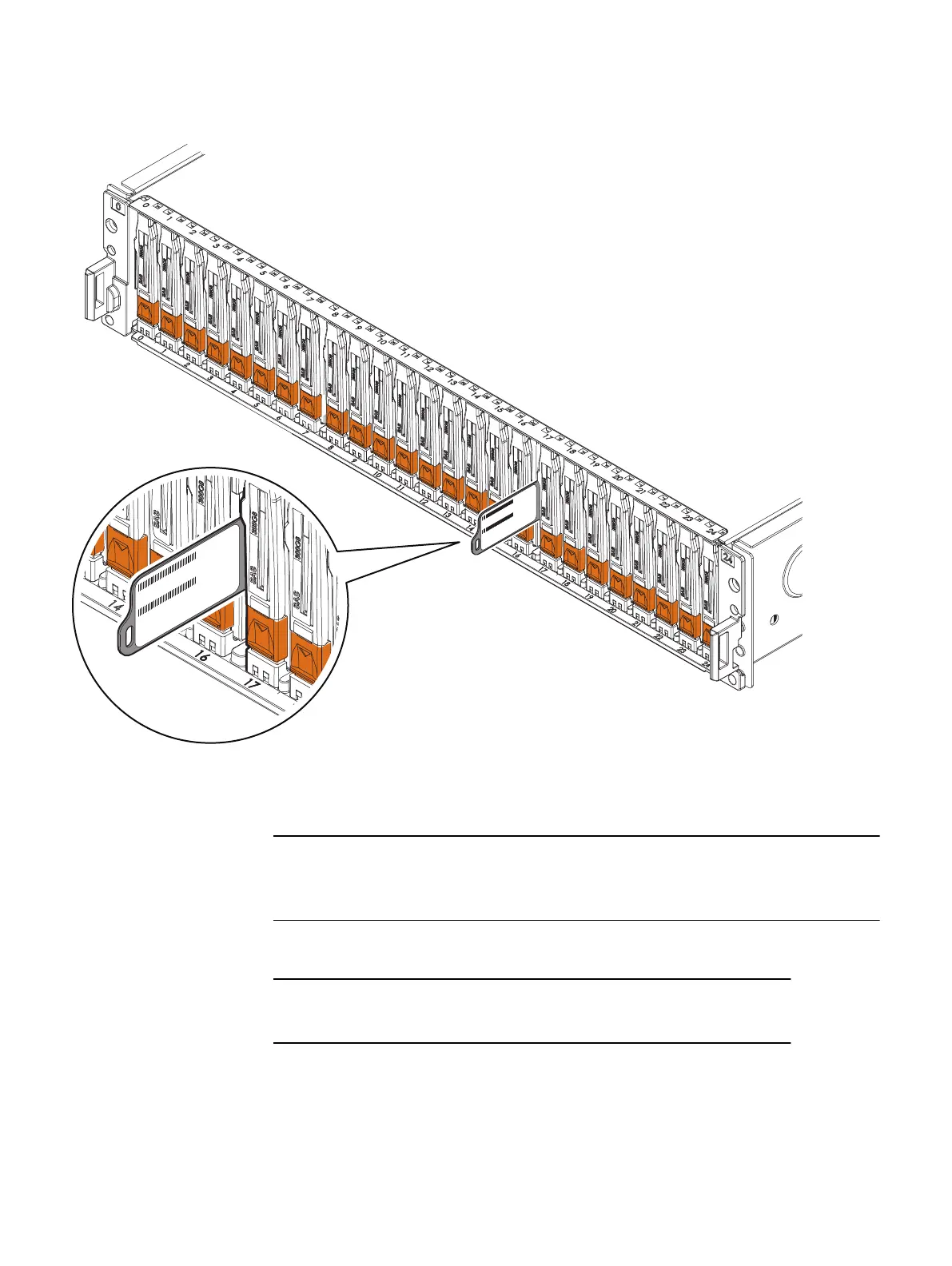

Figure 2 PSTN location on a DPE with 25-drive slots
P
R
O
D
ID
/
S
N
: FNM01234567891
P
N: 123-456-789
(OBE
R
ON)
PROD I
D/SN: F
NM01234
5
6
7
8
9
1
PN: 123-456-789 (OBERON)
CL5780
Before installation of the chassis, pull the tag outward and record the information from
the tag on the Configuration Worksheet. After recording the information, return the
tag to its inserted position.
Note
Before installing the DPE, watch the Unity Quick Start Installation Video at http://
bit.ly/unityinfohub.
Installing the rails in the cabinet
Note
The snap-in rails are dedicated left and right, and cannot be interchanged.
Procedure
1. First, orient the rails. Face the front of the cabinet when orienting the left and
right rail placement. The front edge of each rail is stamped L or R.
2. From the rear of the cabinet, insert the adapters into the holes on the rear rack
channel with the rail extended as shown in Push rail into rear channel mounting
holes.
Install your storage system components into a rack
Installing the rails in the cabinet 19

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
