Dell EMC Unity Series Installation Guide

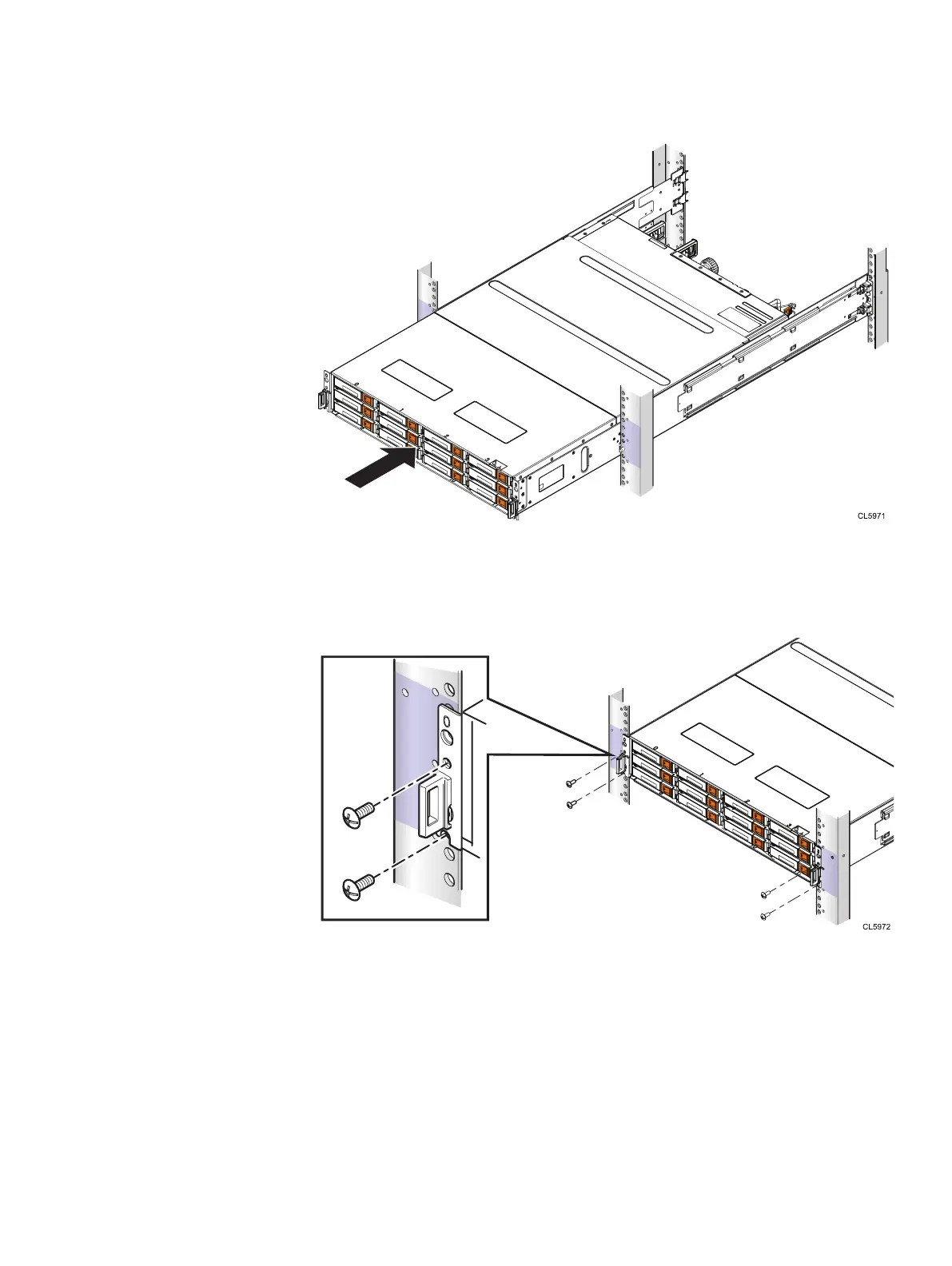

Figure 6 Sliding the enclosure onto the rails
2. Secure the front of the enclosure to the front vertical channels of the cabinet
using four screws (two per side) by installing all four screws, and then
tightening them.
Figure 7
Securing enclosure to the front of the cabinet
Install your storage system components into a rack
Installing the DPE on the rails 23

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
