Dell EMC Unity Series Installation Guide

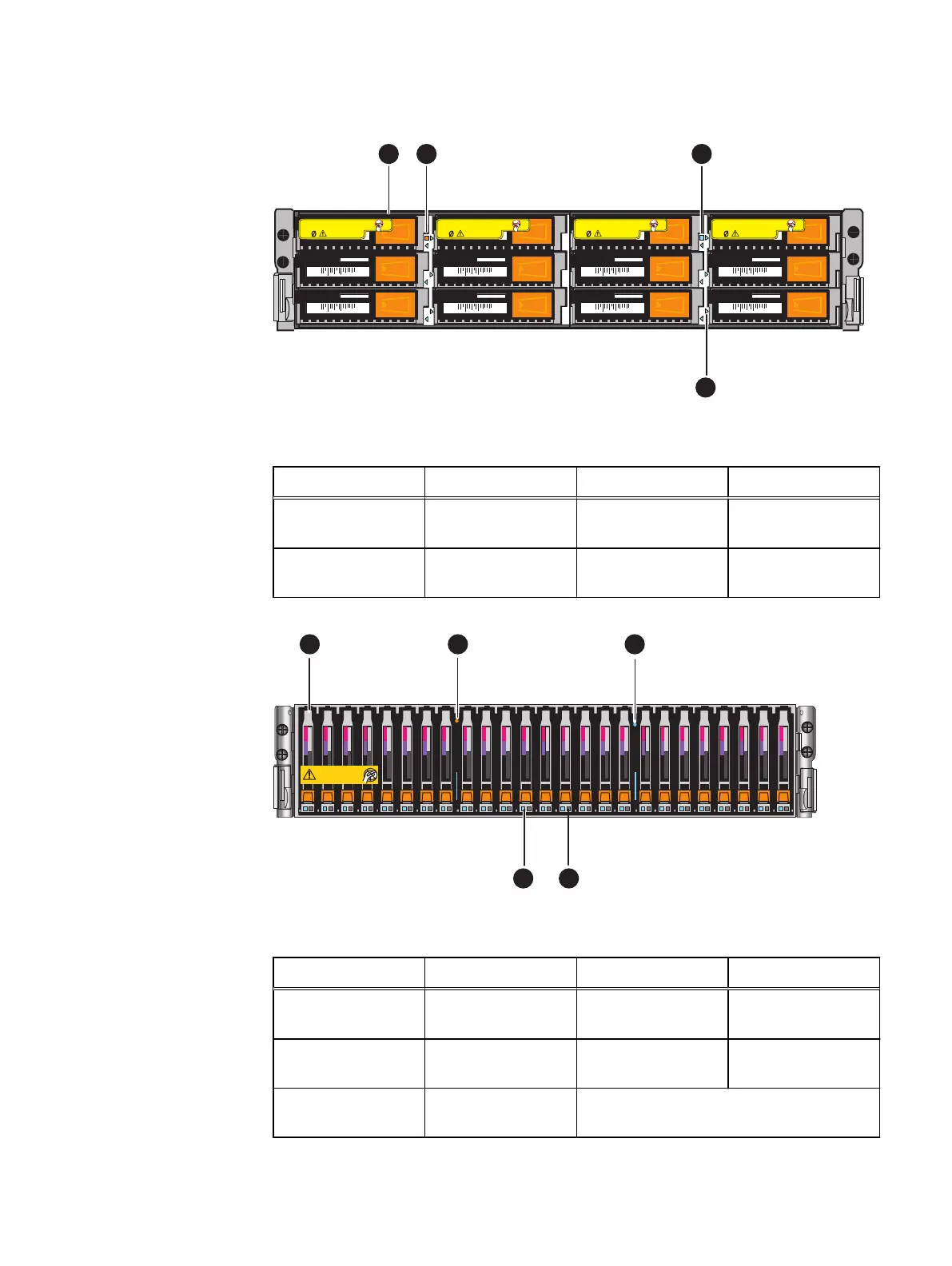

Figure 11 12-drive DPE status LEDs
0
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
SAS12Gb
3
Removing these drives will
make the array unusable
SPD
Removing these drives will
make the array unusable
SPD
Removing these drives will
make the array unusable
SPD
Removing these drives will
make the array unusable
SPD
31 2
4
Table 3 Table 12-drive DPE status LED descriptions
Location Description Location Description
1 3.5-inch disk drive 3 DPE power status
LED (blue on)
2 DPE fault LED (amber
off)
4 Disk drive ready/
activity LED (blue on)
Figure 12 25-drive DPE status LEDs
Will Make the Array Unusable
Caution: Array Software on drives 0-3. Removing or relocating them
31 2
45
Table 4 25-drive DPE status LED descriptions
Location Description Location Description
1 2.5-inch disk drive 4 Disk drive fault LED
(amber off)
2 DPE fault LED (amber
off)
5 Disk drive ready/
activity LED (blue on)
3 DPE power status
LED (blue on)
Cable and power up your storage system components
30 Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
and Unity 650F Installation Guide

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
