Battery cable
Removing the battery cable
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information, see step 7 in Before working inside your
computer.
2. Remove the base cover.
3. Remove the battery.
About this task

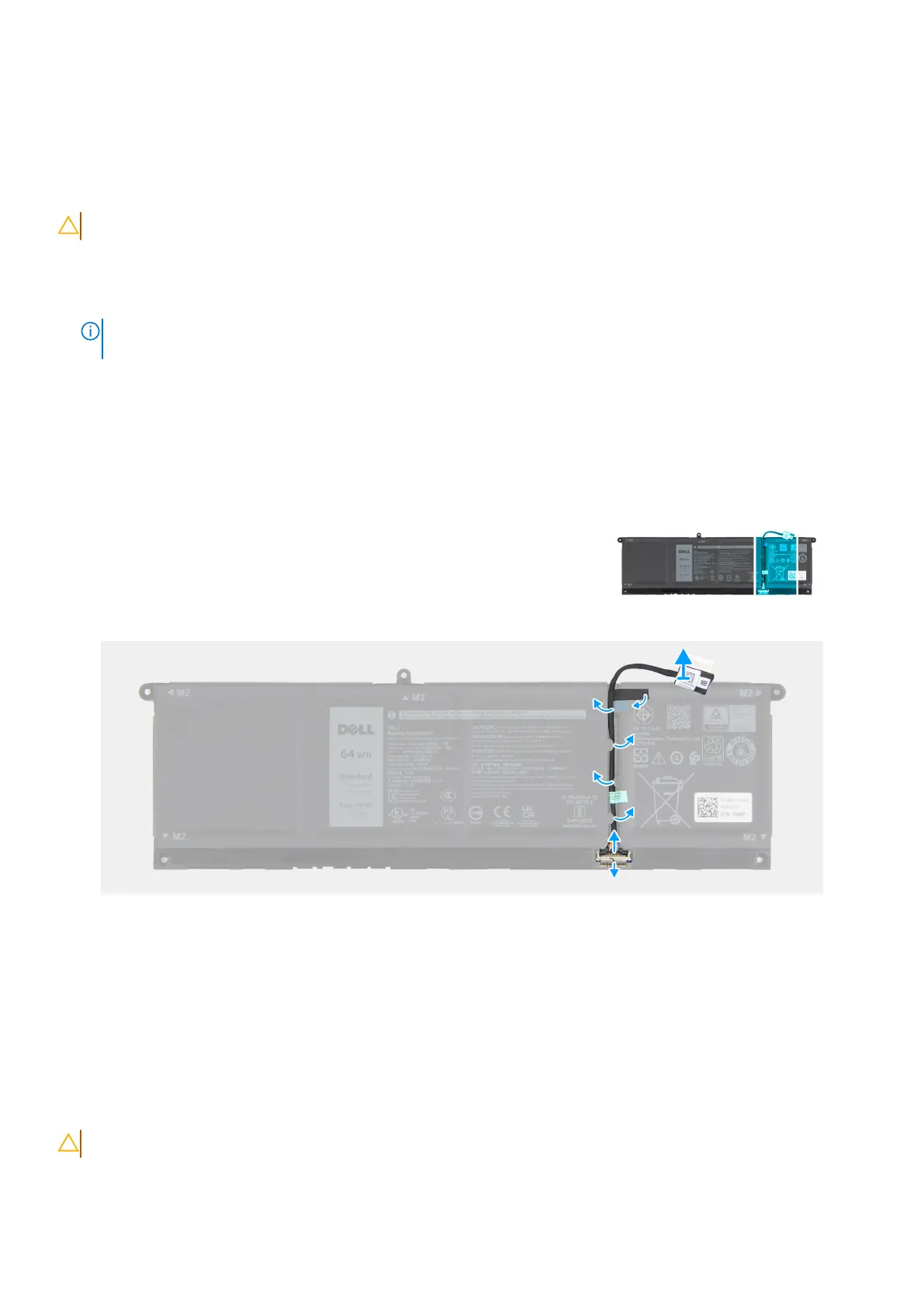

The following image indicates the location of the battery cable and provides a visual representation of the removal procedure.
Figure 17. Removing the battery cable
Steps
1. Slide down the clamp that secures the battery cable to the battery.
2. Disconnect the battery cable from the battery.
3. Remove the battery cable from the routing guides.
4. Lift the battery cable off the battery.
Installing the battery cable
CAUTION: The information in this section is intended for authorized service technicians only.
40 Removing and installing Customer Replaceable Units (CRUs)
