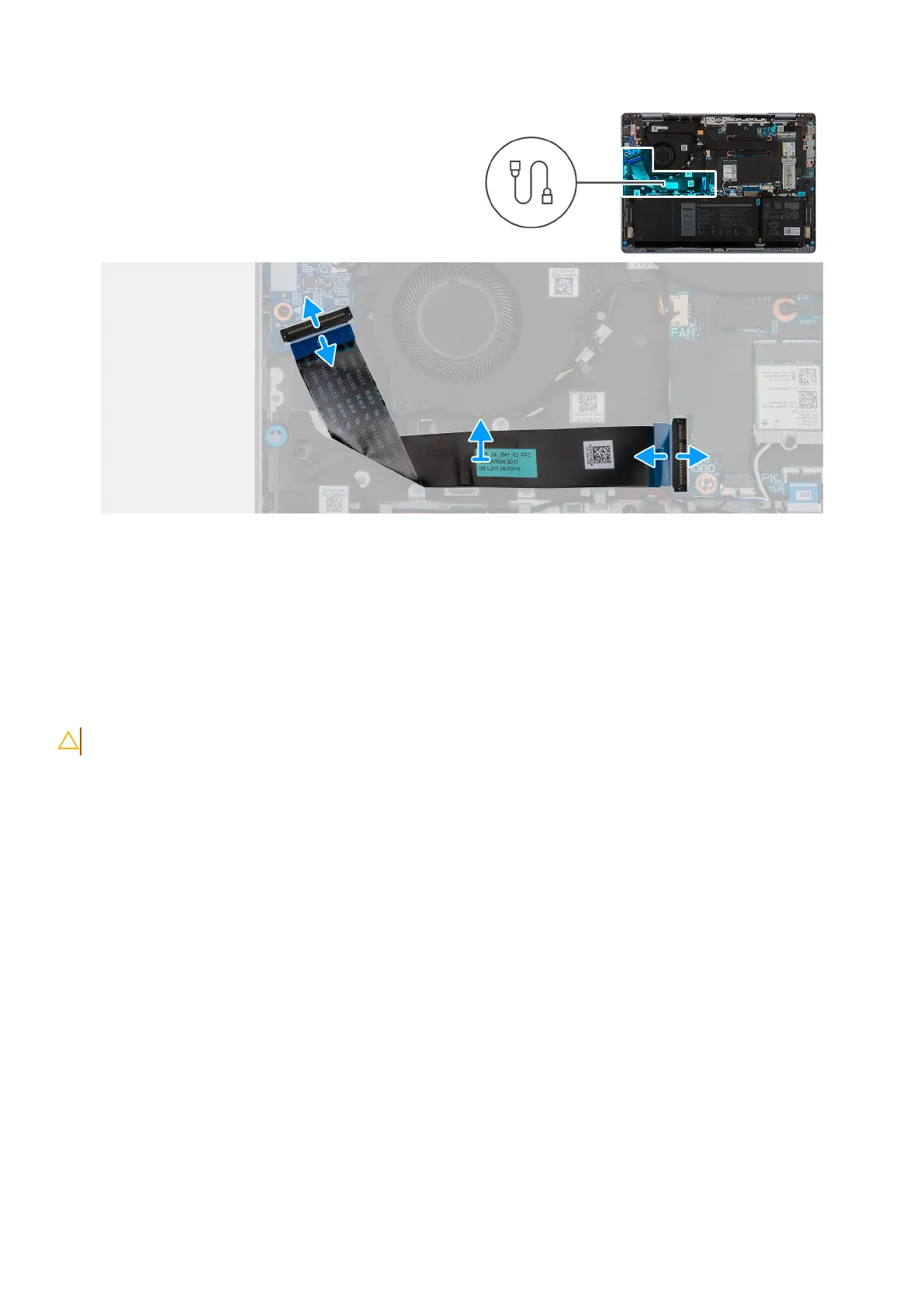

Figure 30. Removing the I/O-board cable
Steps
1. Lift the latch and disconnect the I/O-board cable from its connector (IOBD) on the system board.
2. Lift the latch and disconnect the I/O-board cable from its connector on the I/O board.
3. Peel the I/O-board cable off the palm-rest and keyboard assembly.
Installing the I/O-board cable
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the I/O-board cable and provides a visual representation of the installation
procedure.
54
Removing and installing Field Replaceable Units (FRUs)
