2. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information, see step 7 in Before working inside your
computer.
2. Remove the base cover.
About this task

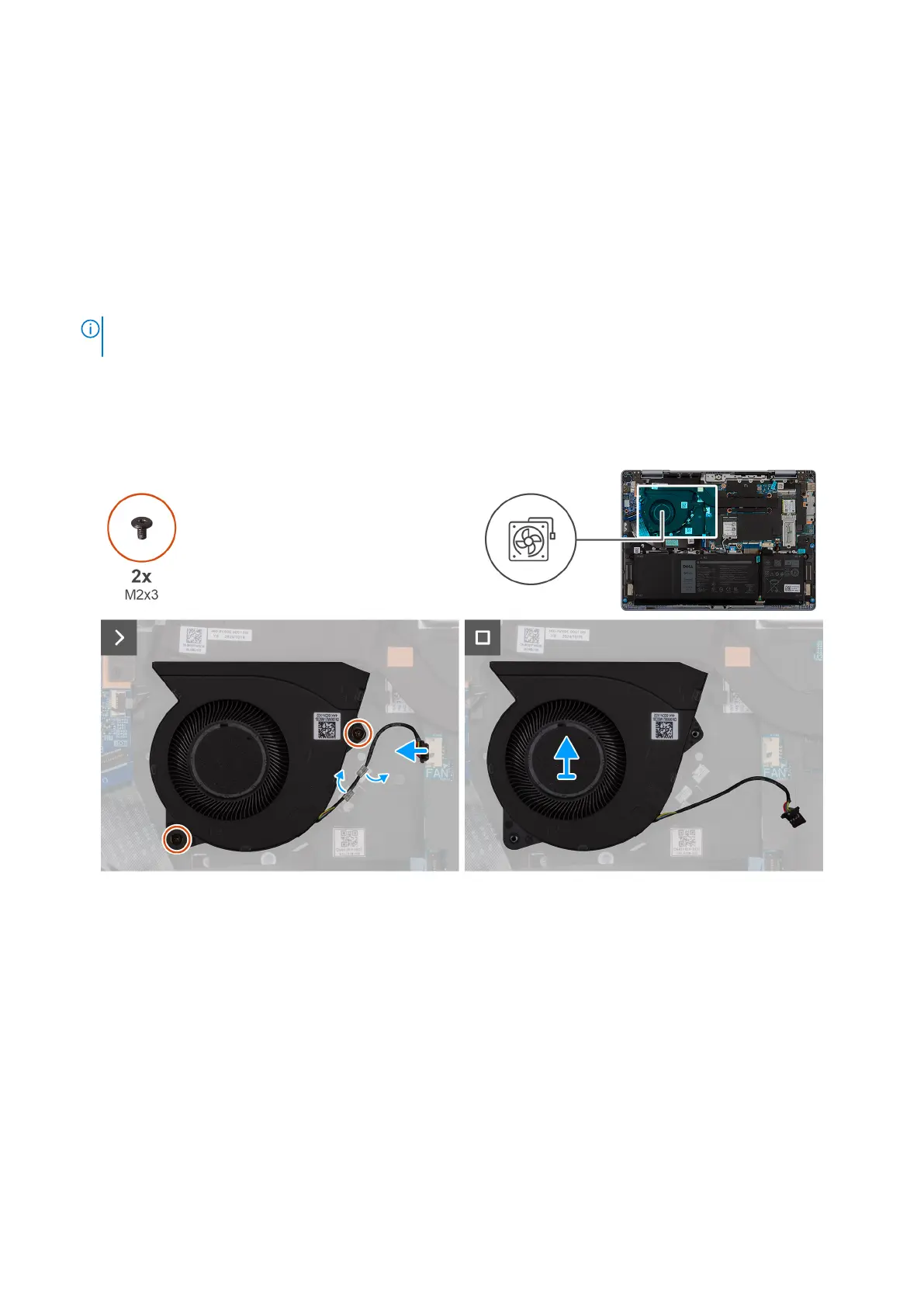

The following image indicates the location of the fan and provides a visual representation of the removal procedure.
Figure 21. Removing the fan
Steps
1. Disconnect the fan cable from the connector (FAN) on the system board.
2. Remove the two screws (M2x3) that secure the fan to the palm-rest and keyboard assembly.
3. Lift the fan off the palm-rest and keyboard assembly.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
44
Removing and installing Customer Replaceable Units (CRUs)
