Installing the power button with fingerprint reader
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: If either the system board or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
thermal conductivity.
The following image indicates the location of the power button with fingerprint reader and provides a visual representation of
the installation procedure.

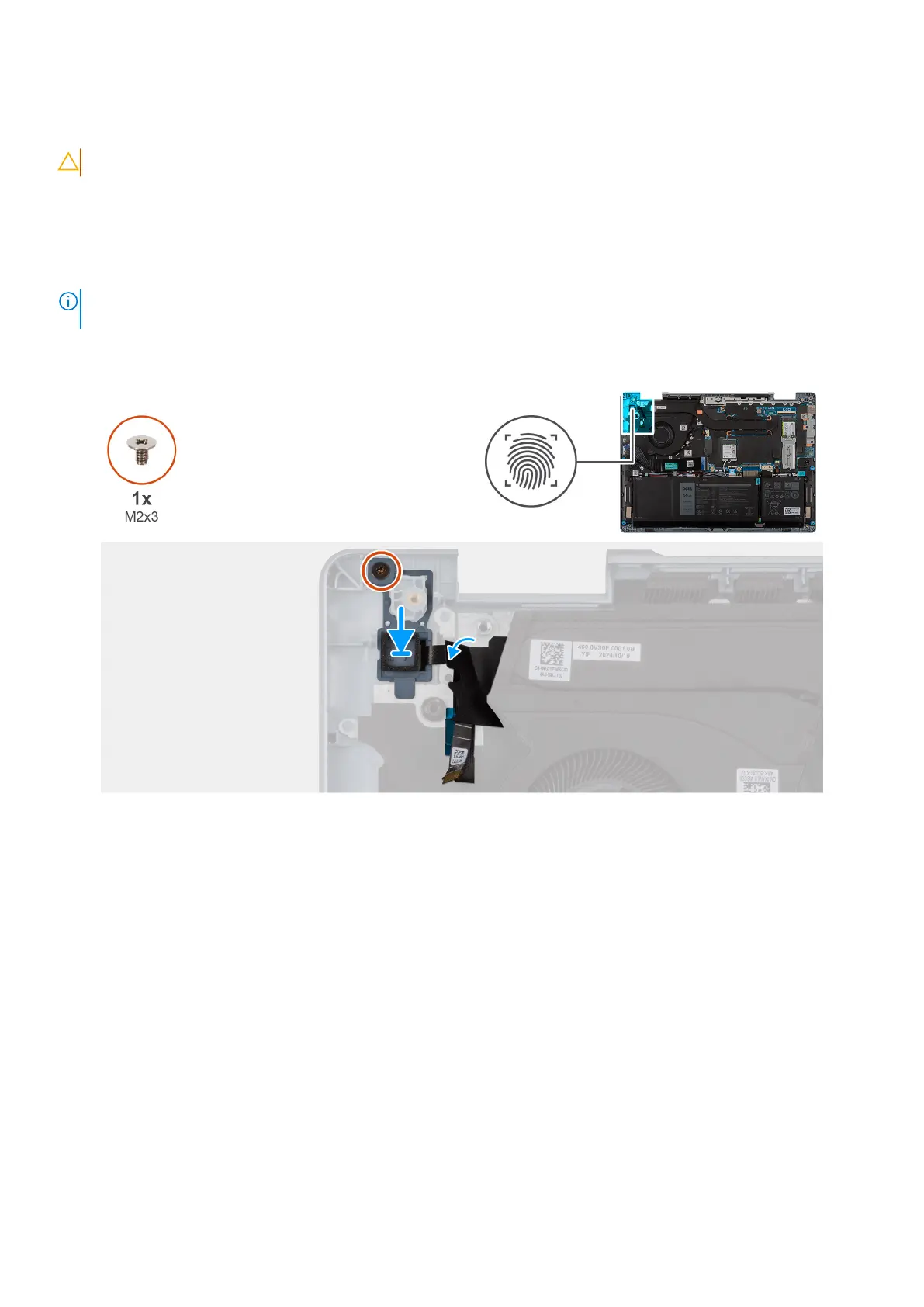

Figure 51. Installing the power button with fingerprint reader
Steps
1. Place the power button with fingerprint reader into its slot on the palm-rest and keyboard assembly.
2. Align the screw hole on the power button to the screw hole on the palm-rest and keyboard assembly.
3. Replace the screw (M2x3) that secures the power button with fingerprint reader to the palm-rest and keyboard assembly.
4. Replace the tape that secures the fingerprint-reader cable to the palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
74
Removing and installing Field Replaceable Units (FRUs)
