If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.

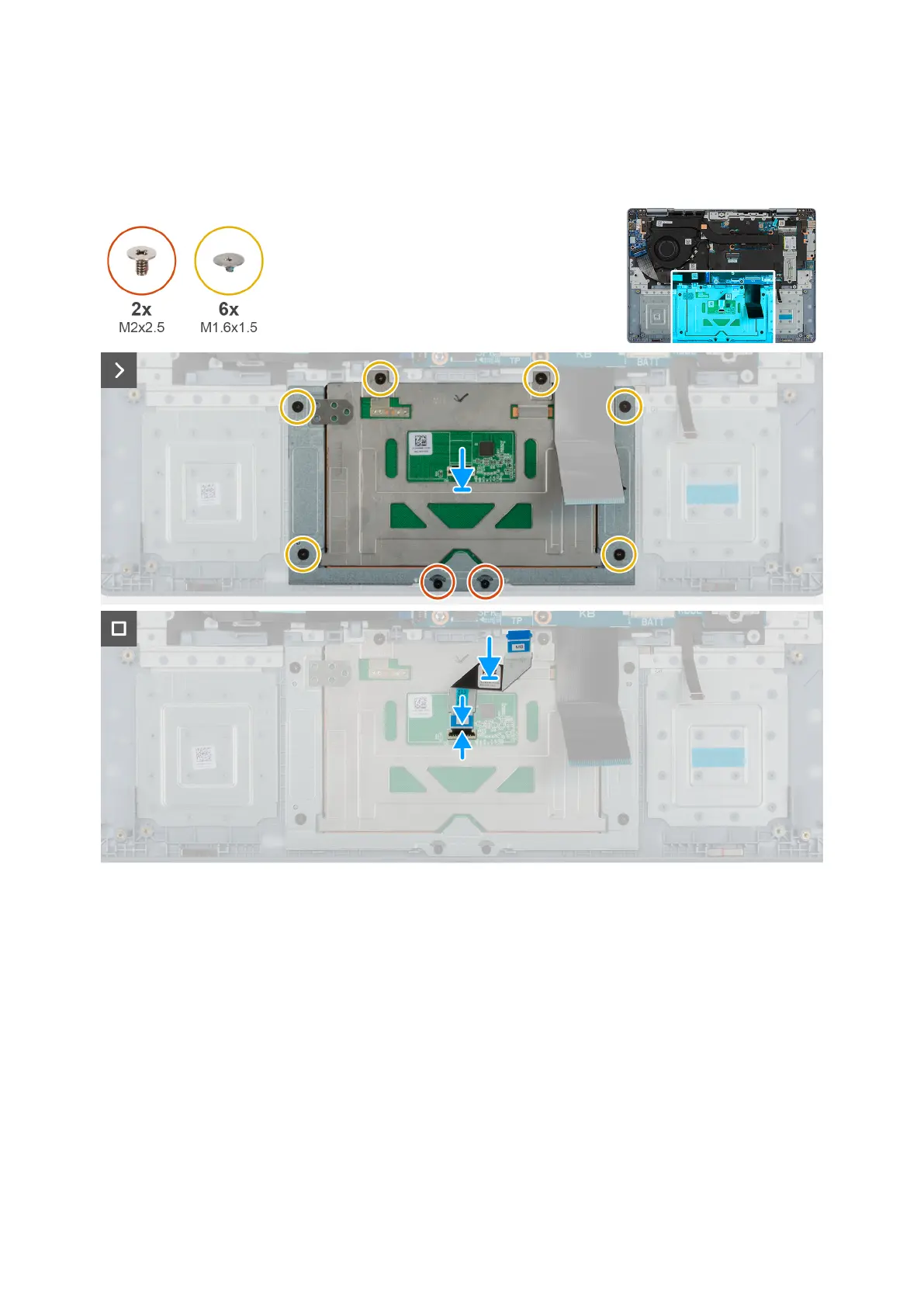

Figure 53. Installing the touchpad
Steps
1. Place the touchpad into its slot on the palm-rest and keyboard assembly.
2. Place the touchpad bracket on the touchpad.
3. Align the screw holes on the touchpad bracket with the screw holes on the palm-rest and keyboard assembly.
4. Replace the two screws (M2x3) and the six screws (M1.6x1.5) that secure the touchpad bracket to the palm-rest and
keyboard assembly.
5. Adhere the tape to the upper right edge of the touchpad bracket.
6. Place the touchpad cable on the palm-rest and keyboard assembly.
7. Connect the touchpad cable to its connector on the touchpad and close the latch.
8. Connect the touchpad cable to its connector (TP) on the system board and close the latch.
Next steps
1. Install the battery.
