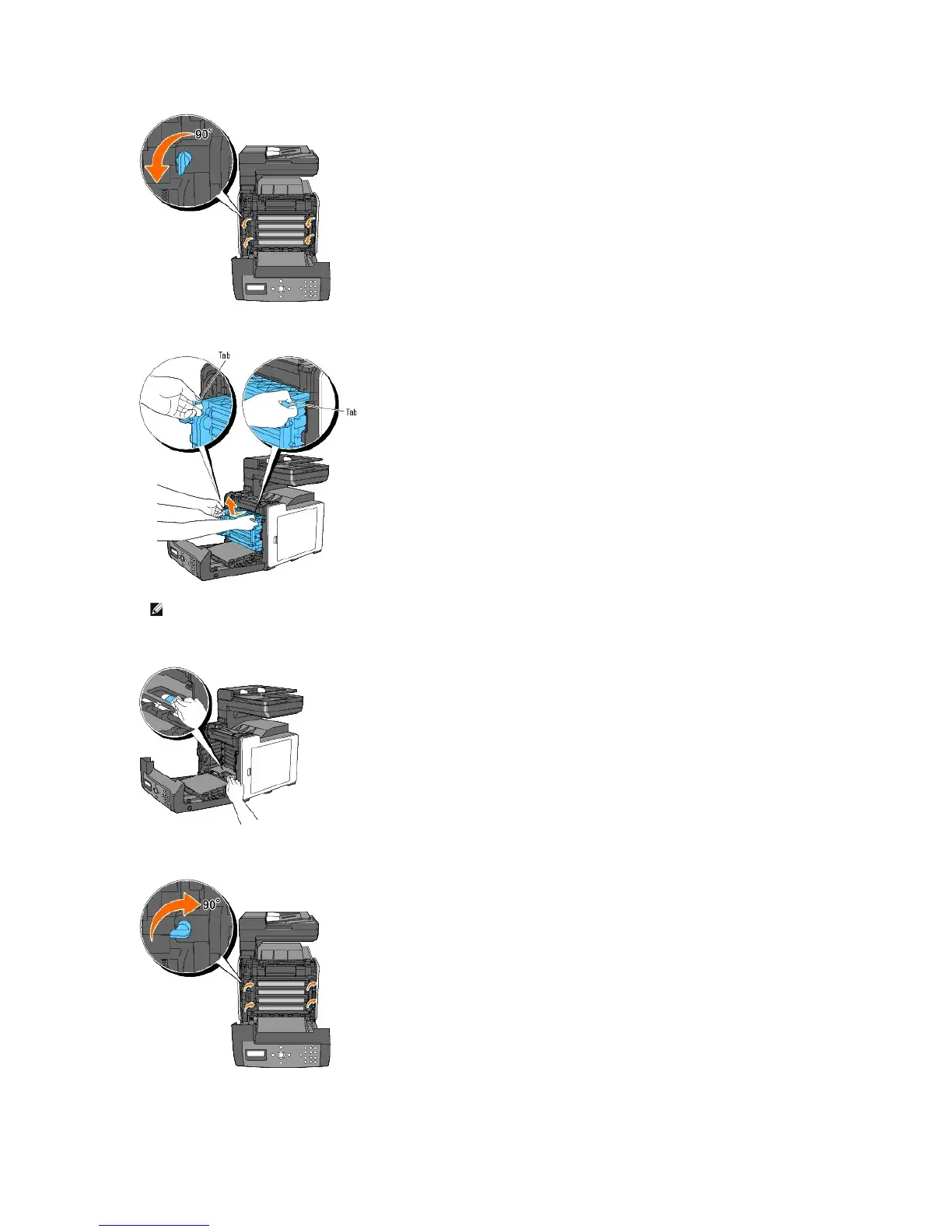

4. Hold the gray tabs, and then pull out the PHD unit.



5. Clean the feed roller inside the printer with a dry cloth.



6. Insert the PHD unit until it stops and turn the four PHD lock levers clockwise to lock the PHD unit.



7. Close the front cover.

NOTE: Keep the PHD unit in a dark place.
