Installing the bezel
1. Position the bezel to align the tab holders on the chassis.
2. Press the bezel until the tabs clicks into place.
3. Install the cover.
4. Follow the procedure in After working inside your computer.
Opening the front panel door
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. bezel
CAUTION: The front panel door opens only to a limited extent. See the printed image for the maximum
permissible level.
3. Pull the front panel door to open it.
Hard drive
Removing the 3.5 inch hard drive assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel

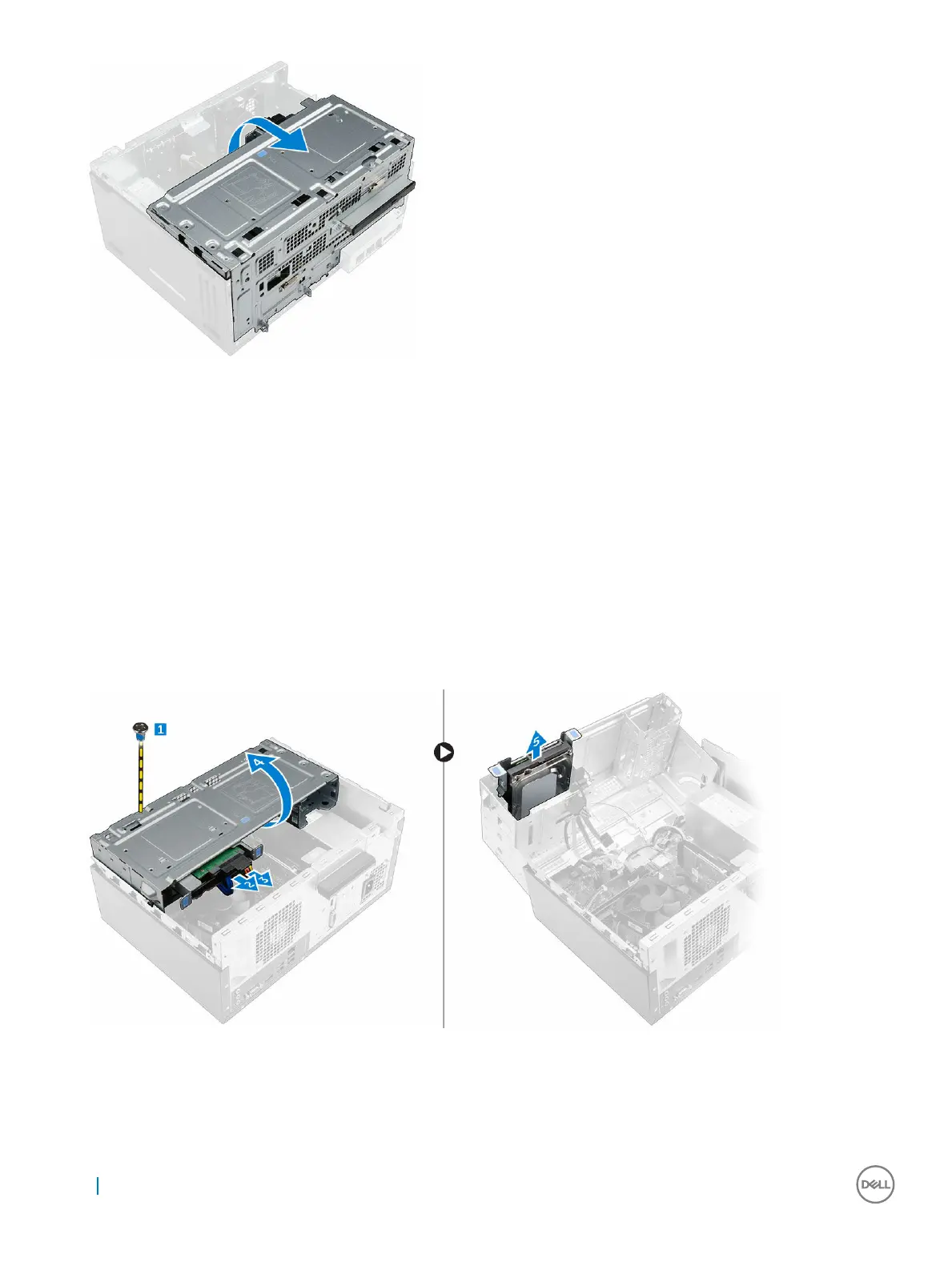

3. To remove the hard drive assembly:
a. Remove the screw that secures the hard drive assembly to the front bezel door [1].
b. Disconnect the hard drive assembly cables from the connectors on the hard drive [2, 3].
c. Open the front panel door [4].
d. Hold the metal tabs on both sides and pull the hard drive assembly out of the computer [6].
