Steps

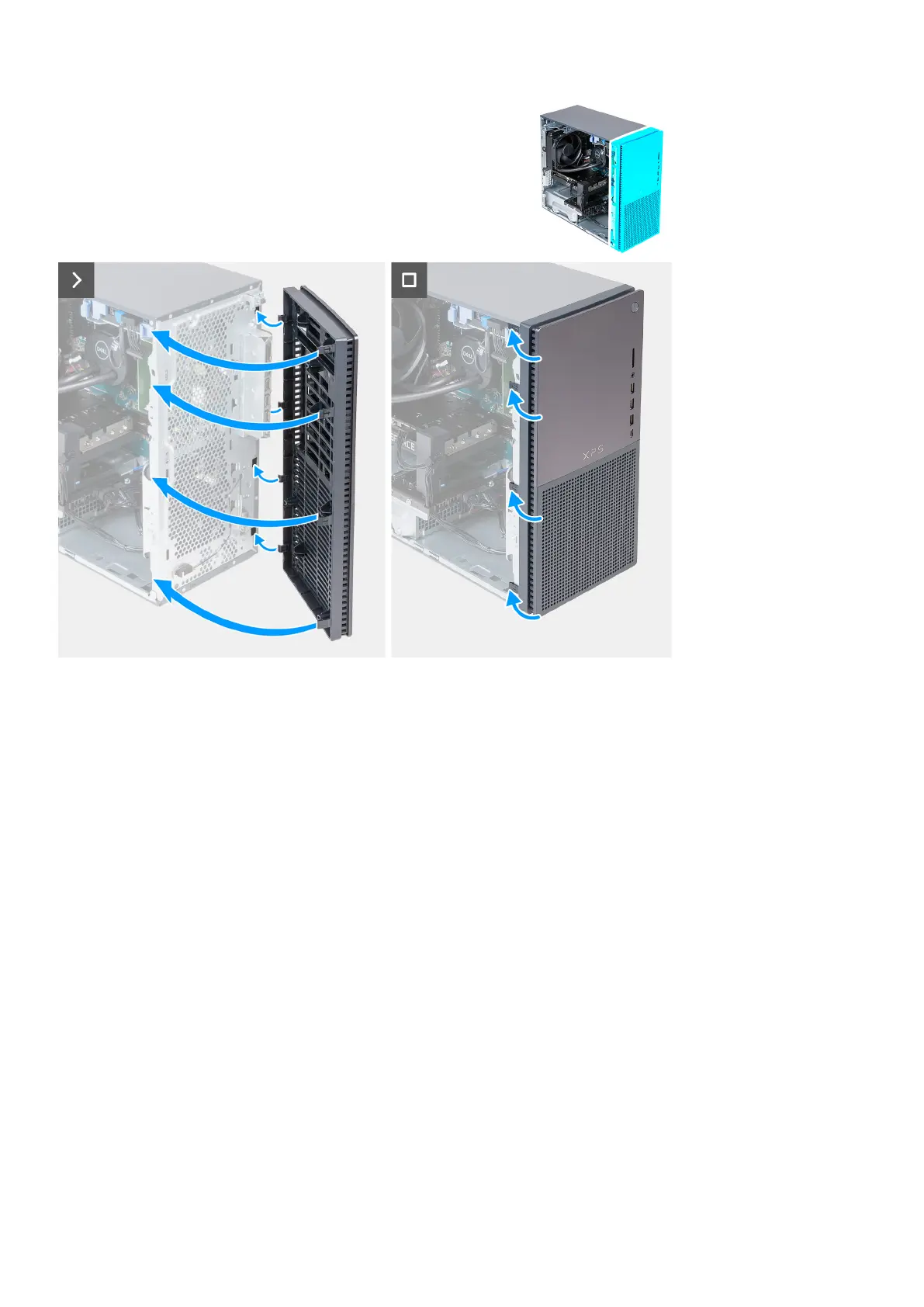

1. Insert the right-side front-cover tabs into the corresponding slots on the chassis.
2. Push the left-side of the front cover towards the chassis, snapping the slots into position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the front cover.
About this task
The following image(s) indicate the location of the power button and provides a visual representation of the removal procedure.
Removing and installing components
17
