Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

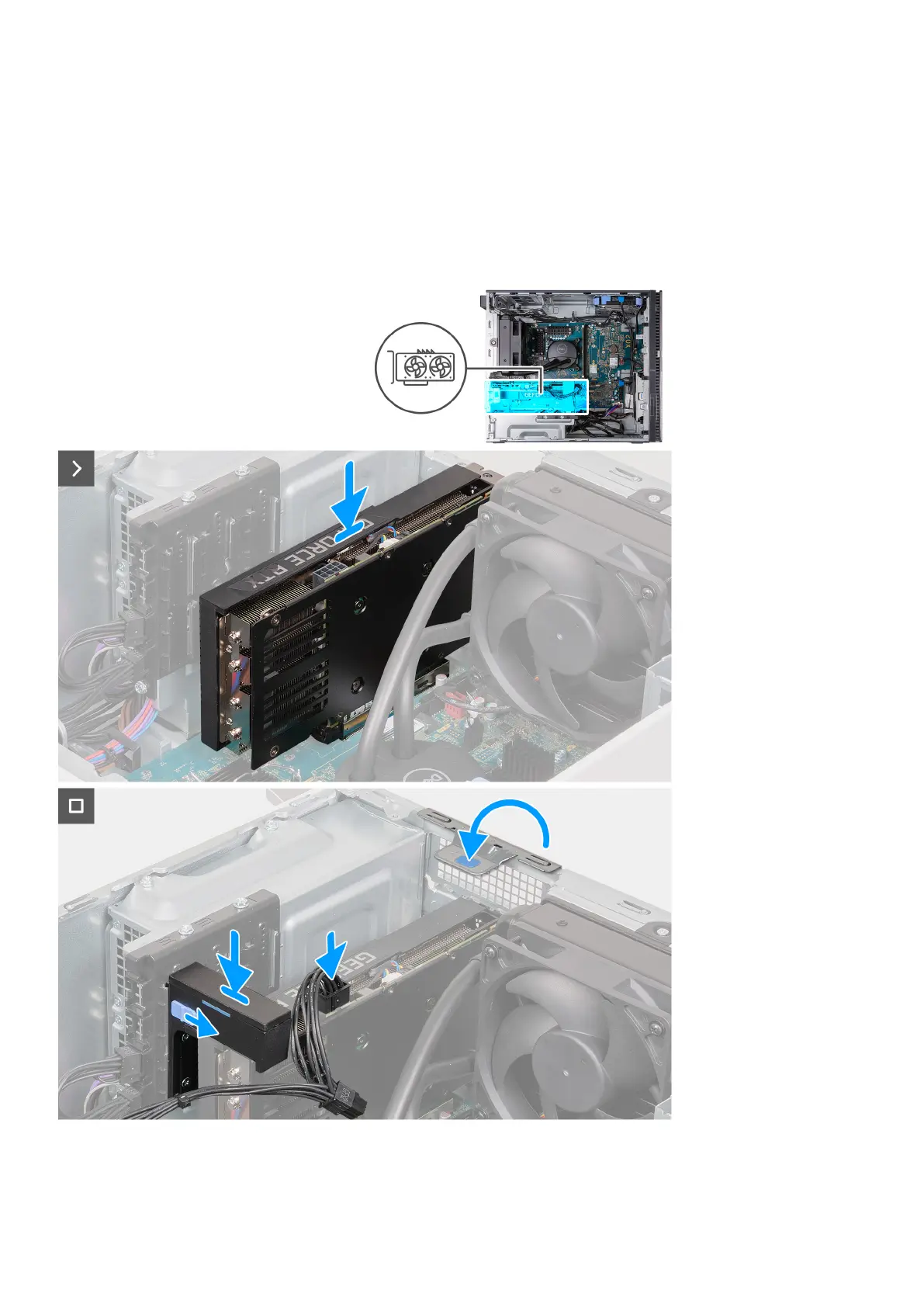

The following image(s) indicate the location of the graphics card and provides a visual representation of the installation
procedure.
Steps
1. Align the graphics card with the PCIe x16 slot on the system board.
Removing and installing components
25
