Dell E75S001 - Page 100

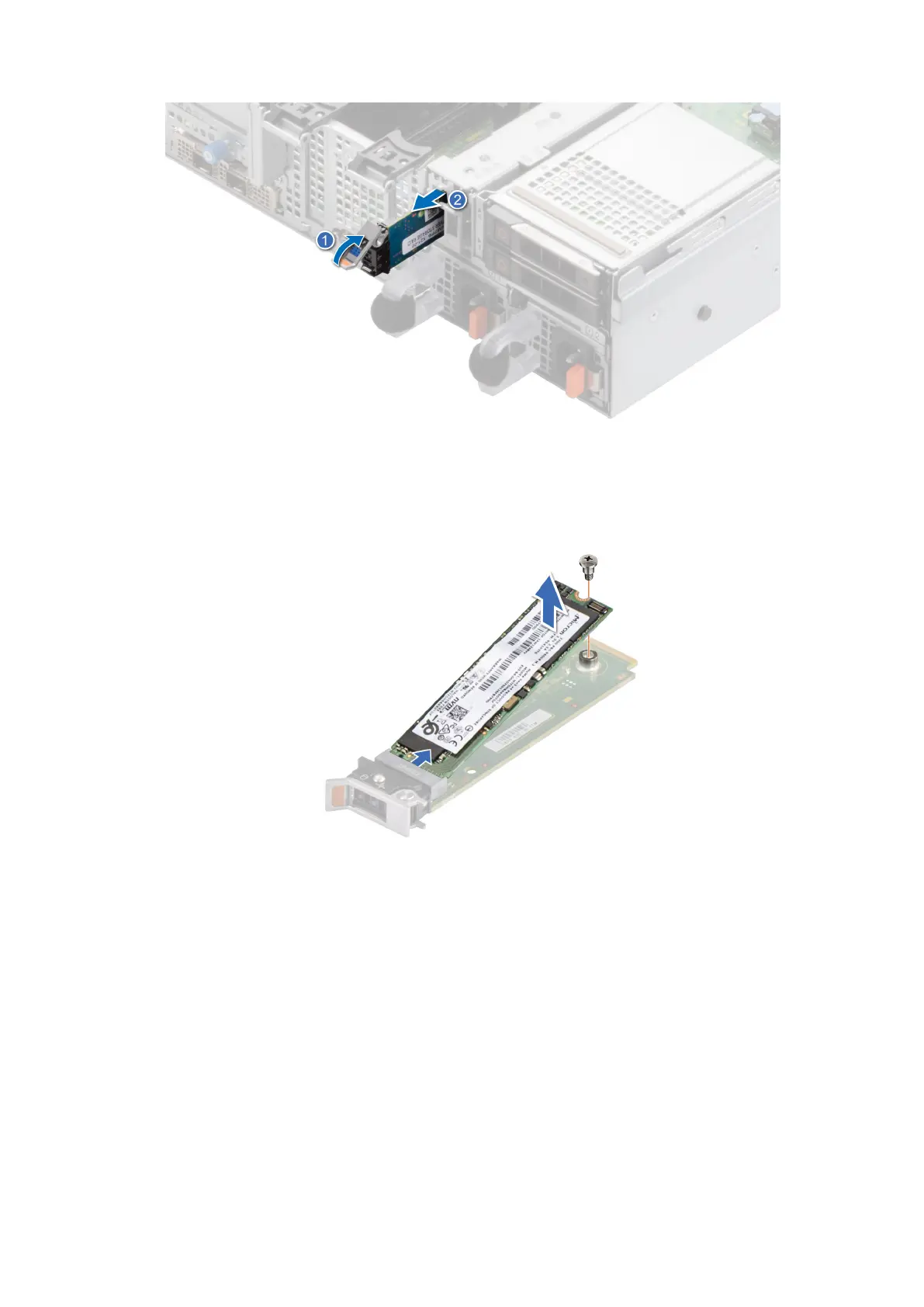

Figure 94. Removing the BOSS S2 card carrier
3. Using the Phillips #1 screwdriver remove the M3 x 0.5 x 4.5 mm screw that secures the M.2 SSD to the BOSS S2 card
carrier.
4. Slide the M.2 SSD out and up from the BOSS S2 card carrier.
Figure 95. Removing the M.2 SSD
5. Disconnect the BOSS power cable and BOSS signal cable from the system board. Using the Phillips #1 screwdriver remove
the two M3 x 0.5 x 4.5 mm screws that secure the BOSS S2 controller card module on the BOSS module bay. Slide the
BOSS S2 controller card module out from the BOSS module bay.
