Inside the system

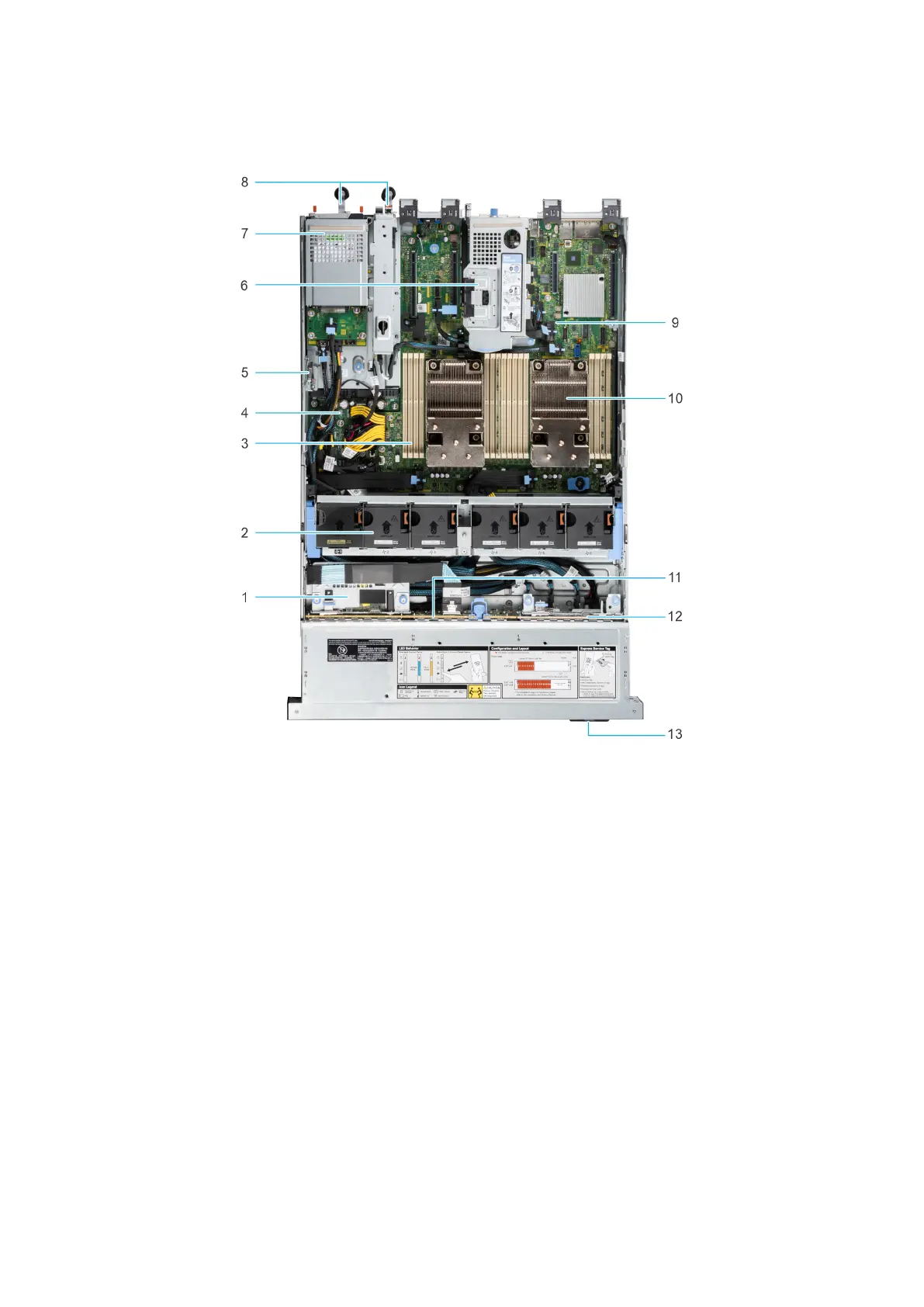

Figure 9. Inside the system with riser
1.
Front PERC 2. Cooling Fans
3. Memory module slots 4. Power interposer board
5. Intrusion switch 6. Riser 1A/1B
7. Rear drive module 8. PSU 1 and PSU 2
9. System board 10. Processor heat sink
11. Backplane 12. NVMe backplane with provision for H755N PERC
13. Information tag
14 PowerEdge R750xs system overview
