Dell E75S001 - Installing the OCP Shroud

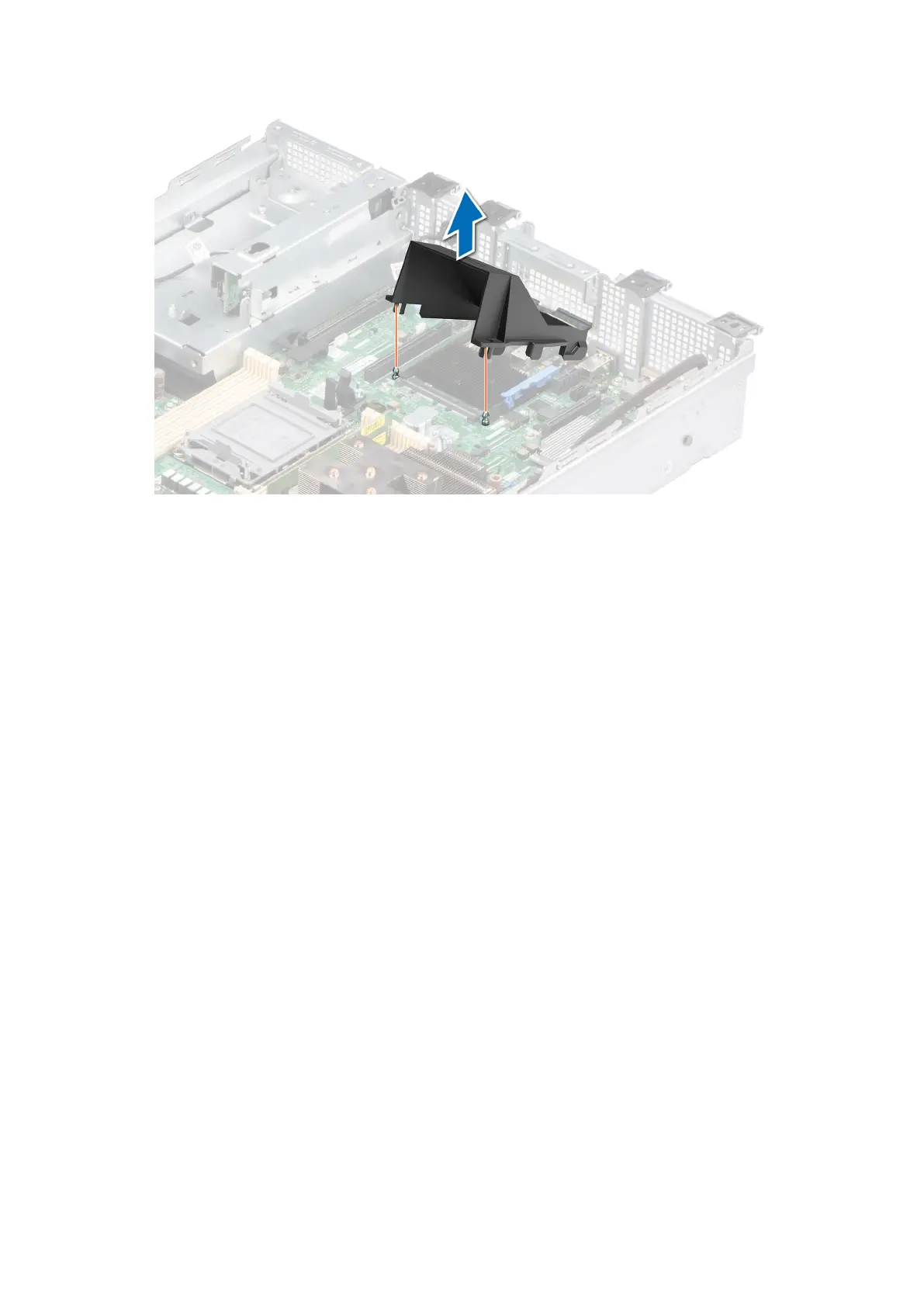

Figure 112. Removing the OCP shroud
Next steps
Replace the OCP shroud.
Installing the OCP shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1. Place the OCP shroud at an angle and align the slot on the OCP shroud with the standoff on the system.
2. Lower and press the OCP shroud until it clicks into place.
Figure 113. Installing the OCP shroud
