Next steps

Replace the processor.

Installing the processor

Prerequisites

1. Follow the safety guidelines listed in the Safety instructions.

2. Follow the procedure listed in Before working inside your system.

Steps

1. Place the processor in the processor tray.

NOTE: Ensure that the pin 1 indicator on the processor tray is aligned with the pin 1 indicator on the processor.

2. Place the processor carrier on top of the processor that is in the processor tray aligning pin 1 indicator on the processor.

NOTE: Ensure that the pin 1 indicator on the carrier is aligned with the pin 1 indicator on the processor before placing

the carrier on the processor.

NOTE: Ensure that the processor and the carrier are placed in the tray before you install the heat sink.

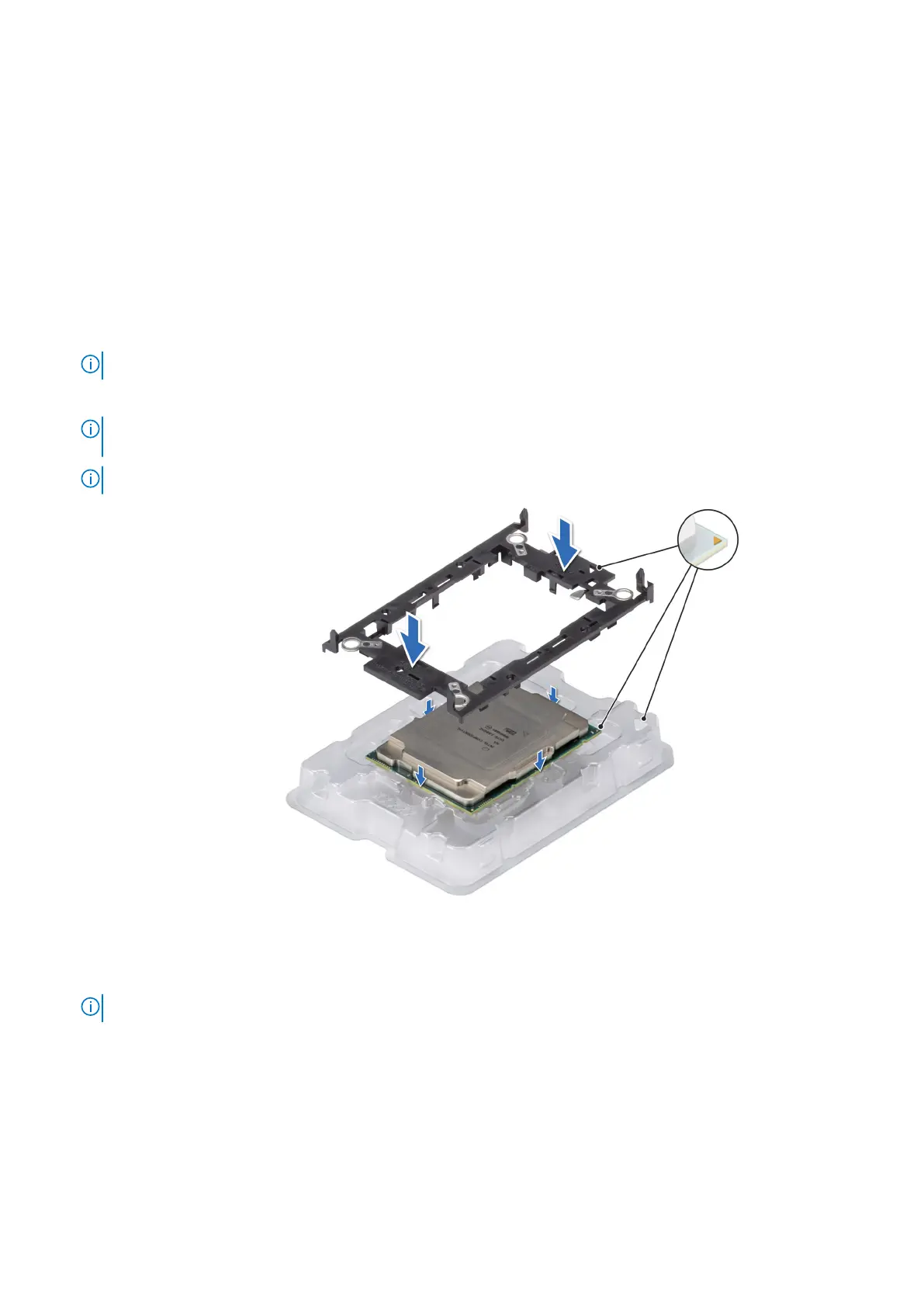

Figure 70. Installing the processor carrier

3. Align the processor with processor carrier by using your fingers to press the carrier on all the four sides until it clicks into

place.

NOTE: Ensure that the processor is securely latched to the processor carrier.

76 Installing and removing system components
