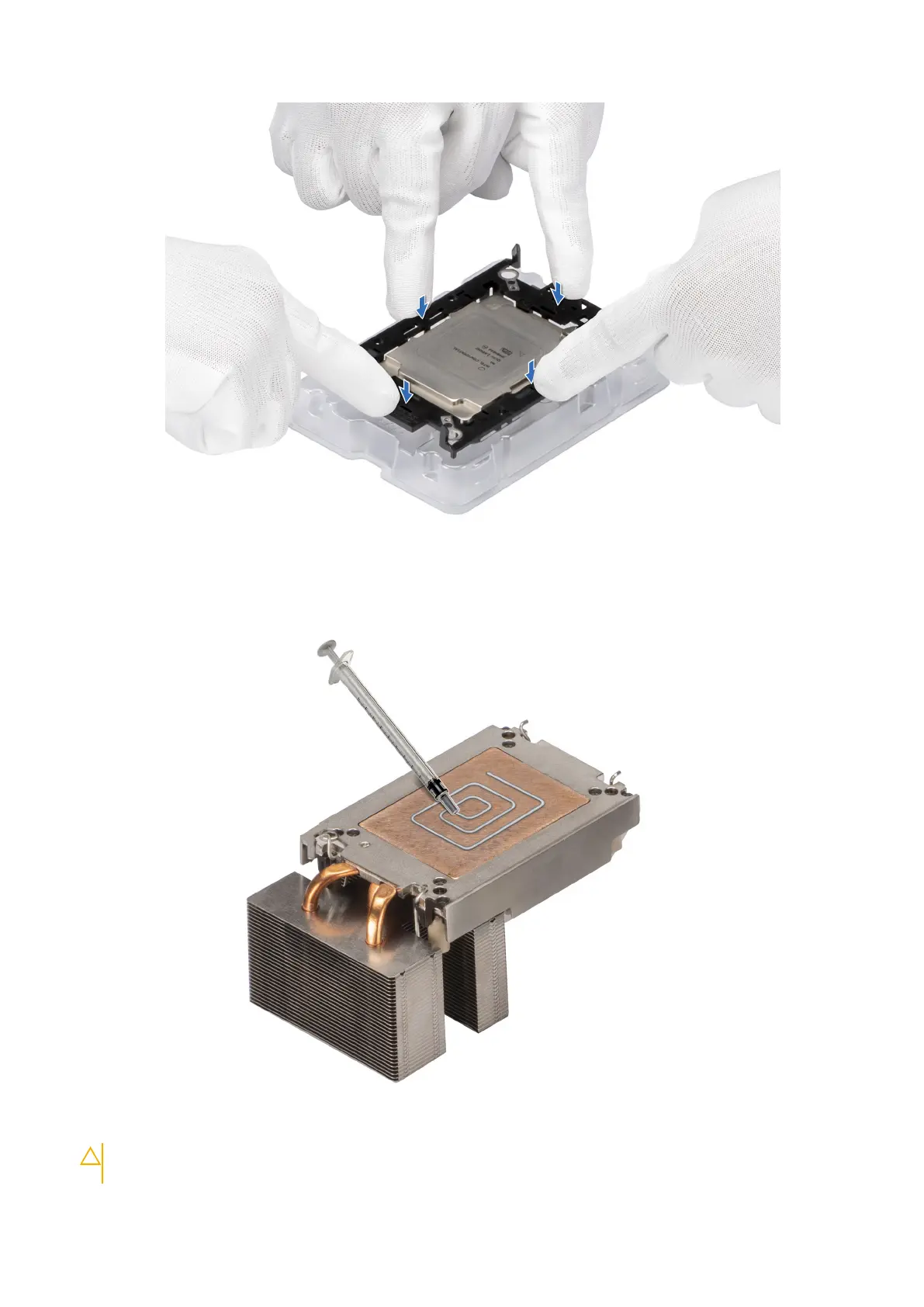

Figure 71. Press the carrier on the four sides
4. If you are using an existing heat sink, remove the thermal grease on the heat sink by using a clean lint-free cloth.
5. Use the thermal grease syringe included with your processor kit to apply the grease in a thin quadrilateral spiral on the
bottom of the heat sink.
Figure 72. Applying thermal grease
CAUTION:
Applying too much thermal grease can result in excess grease coming in contact with and
contaminating the processor socket.
Installing and removing system components 77
