Table 34. Configuration 5: No Riser (continued)
Card type Slot priority Maximum number of cards
Marvell (OCP: 10Gb) Integrated slot 1
Intel (OCP: 10Gb) Integrated slot 1
Broadcom (OCP: 1Gb) Integrated slot 1
Intel (OCP: 1Gb) Integrated slot 1
Dell External PERC Adapter 1, 2 4
Dell BOSS S1 Module Integrated slot 1
Samsung (PCIe SSD AIC) 1, 2 4
Intel (PCIe SSD) Not supported N/a
Removing the expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
4. Disconnect all the riser cables from the system board.
Steps
For Riser 1A and Riser 1B, loosen the two thumb screws with Phillips #2 screwdriver and pull up the expansion card riser.

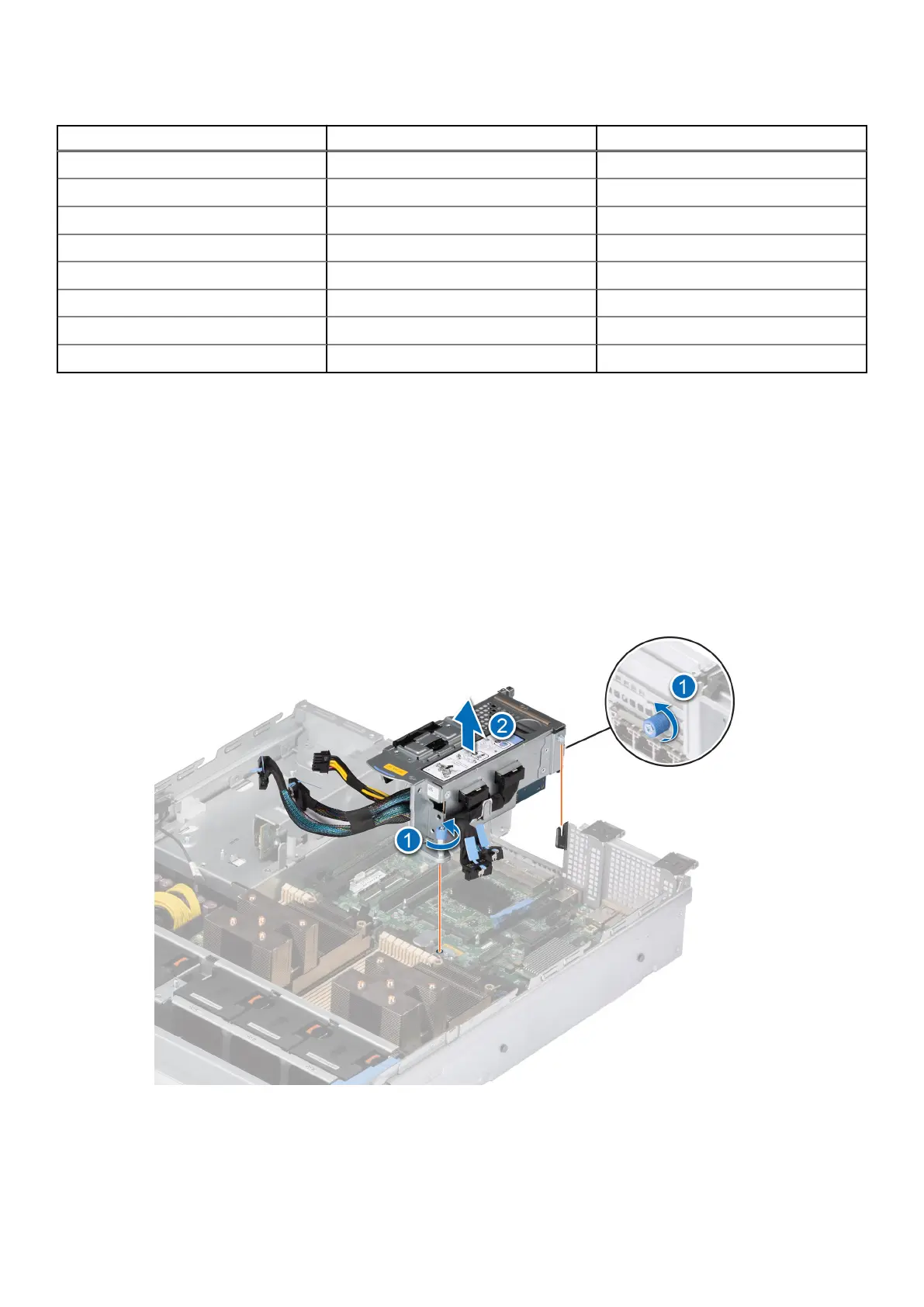

Figure 80. Removing the Riser 1A
