Dell E75S001 User Manual

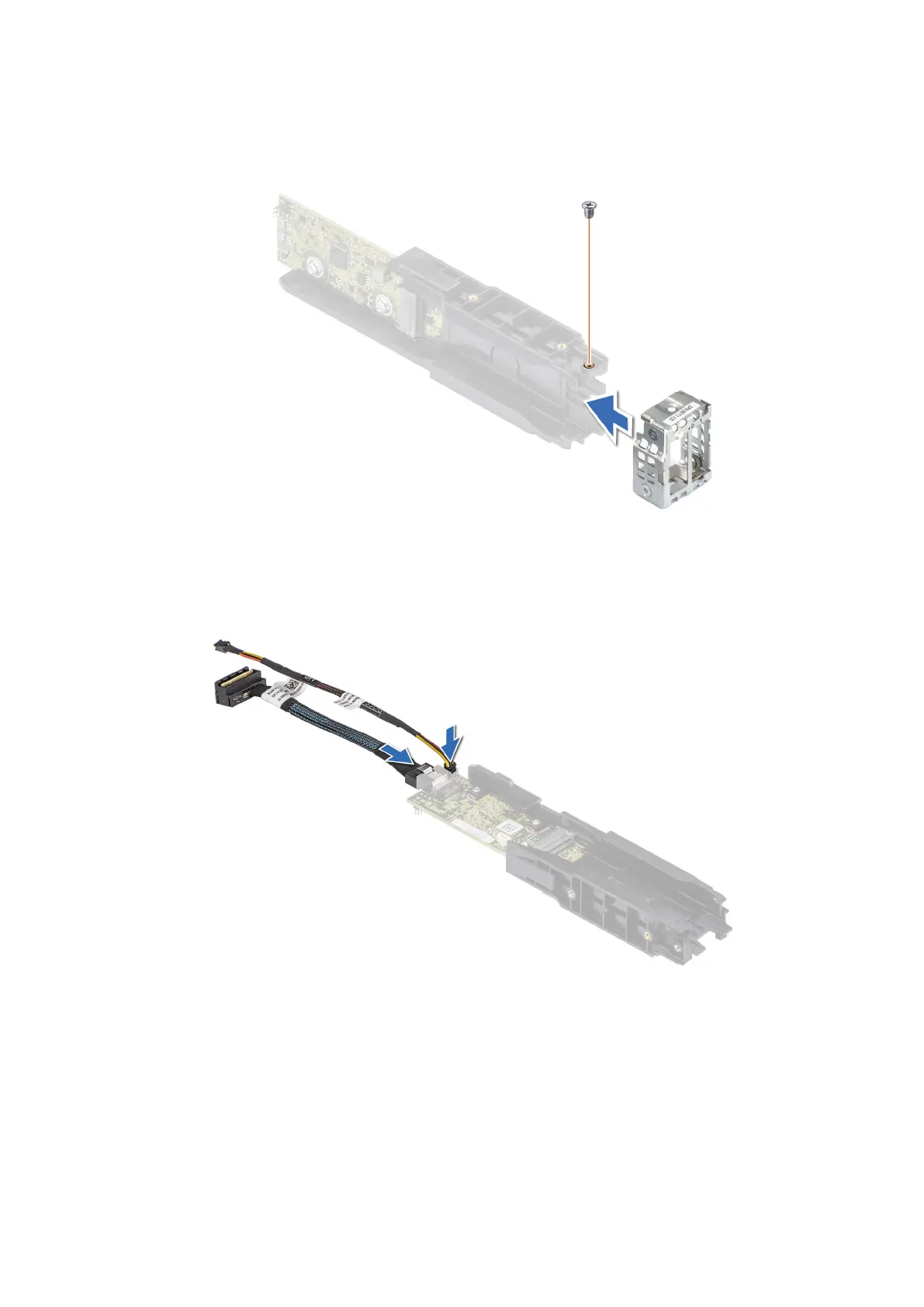

Figure 99. Installing the BOSS module cover
2. Connect the BOSS power cable and BOSS signal cable to the BOSS S2 controller card module.
Figure 100. Connecting the BOSS power cable and BOSS Signal cable to the BOSS S2 controller card module
3. Slide the BOSS S2 controller card module into the BOSS module bay until it is firmly seated.
4. Using the Phillips #1 screwdriver, secure the BOSS S2 controller card module on the BOSS module bay with the two M3 x
0.5 x 4.5 mm screws. Connect the BOSS power cable and the BOSS signal cable to the system board.
5. Align the M.2 SSD at an angle with the BOSS S2 card carrier.
6. Insert the M.2 SSD until it is firmly seated in the BOSS S2 card carrier.
7. Using the Phillips #1 screwdriver, secure the M.2 SSD on the BOSS S2 card carrier with the M3 x 0.5 x 4.5 mm screw.
Installing and removing system components
103
