Dell EMC ML3E User Manual

3. On the Actions menu, click Unlock Magazine.
4. Click Open in the left or right magazine column within the module that contains the magazine to be
opened.
5. A message box indicates when the magazine is unlocked.
6. Unlock Magazine screen shows that the magazine is now unlocked.
Note: If not removed, the magazine and the I/O station relock after 30 seconds.
To manually eject the magazine, insert a paper clip or a small flat head screwdriver into the appropriate
magazine release hole and gently push the tab in. See Figure 84 and Figure 85.
1. Open the magazine access door.
2. Insert a paper clip or a small flat head screwdriver into the appropriate magazine release hole and
gently push the tab in.
3. Pull the magazines out of the module.

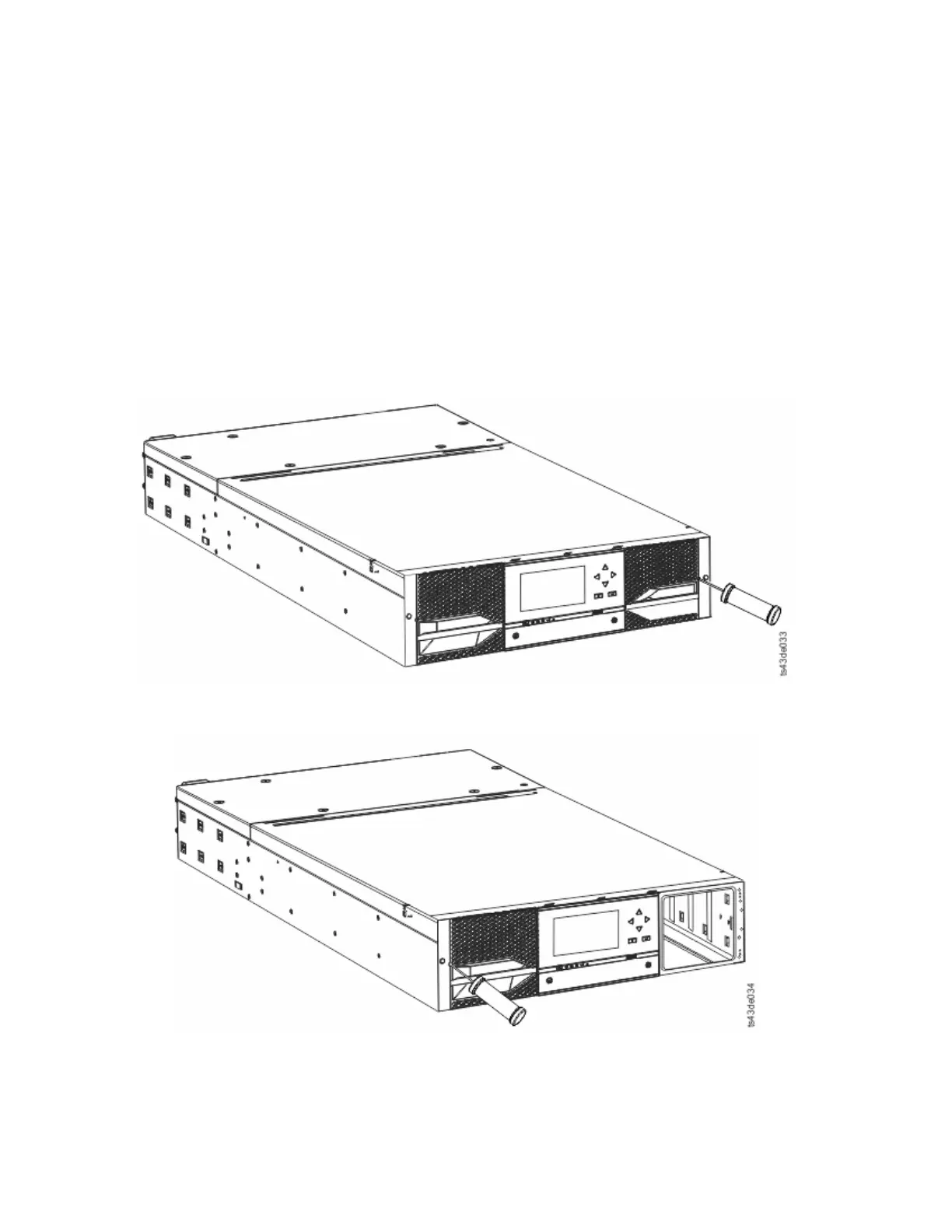

Figure 84. Manually releasing the right magazine
Figure 85. Manually releasing the left magazine
134 Dell EMC ML3 Tape Library: User's Guide
