3. Verify that the lowest module in the library has its alignment lever is in the unlocked or disengaged
position.
▌1▐ Locked
▌2▐ Unlocked
4. From the front of the library, tighten the Philips screws on each of the modules to secure the modules
to the rack.
5. From the back of the library, connect the modules of each pair to its adjacent module by using the
expansion interconnect cables (▌1▐) as shown in Figure 48 on page 49.
Note: The top module's top connector and the bottom module's bottom connector has nothing
plugged into them.

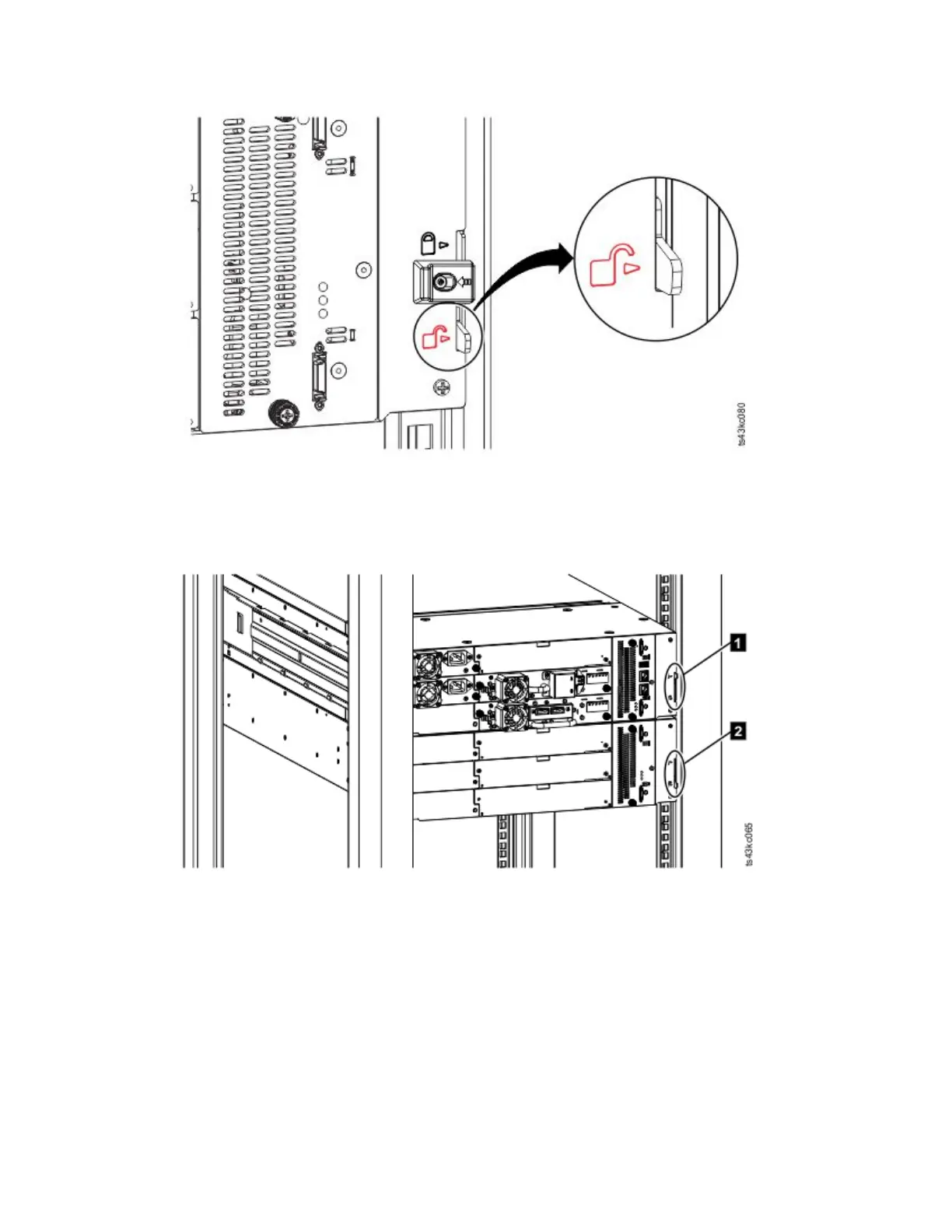

Figure 46. Alignment lever unlocked or disengaged
Figure 47. Two modules in rack, seen from the rear
48 Dell EMC ML3 Tape Library: User's Guide

Dell EMC ML3E Specifications

General

Product Type	Tape Library
Number of Drives	Up to 3
Interface Type	SAS
Operating Humidity	20% to 80% (non-condensing)
Non-operating Humidity	5% to 95% (non-condensing)
Drive Types	LTO-6, LTO-7, LTO-8
Tape Technology	LTO Ultrium
Form Factor	Rackmount
RAID Support	Not Applicable
Max Data Transfer Rate	Up to 300 MB/s (native)
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C
Power Supply	Dual redundant power supplies
