NOTE: The DC ground lug kit ships with the other accessories inside the shipping box.
Z9432F-ON switch configurations
You can order the Z9432F-ON switch in several different configurations.
● Z9432F-ON AC or DC Normal Airflow switch:
○ One U, 32 x 400 GbE QSFP56-DD ports, two SFP+ ports, two AC or DC power supplies, and seven fan subsystems with
airflow from the I/O side to the power supply side
●
Z9432F-ON AC or DC Reverse Airflow switch:
○ One U, 32 x 400 GbE QSFP56-DD ports, two SFP+ ports, two AC or DC power supplies, and seven fan subsystems with
airflow from the power supply side to the I/O
● Fan with airflow from the I/O side to the PSU side—normal airflow
● Fan with airflow from the PSU side to the I/O side—reverse airflow
● AC or DC power supply with airflow from the I/O side to the PSU side—normal airflow
● AC or DC power supply with airflow from the PSU side to the I/O side—reverse airflow
CAUTION: Switches with fan airflow from the PSU to the I/O—reverse airflow—are subject to tighter
restrictions for power consumption on cables and optics that are used for 400 GbE ports. Reverse airflow
switches do not support high-power cables or optics. 400 GbE transceivers and active cables may exceed the
supported threshold. For more information, see the
Dell EMC PowerSwitch with High-Power Optics
guide.
CAUTION: Review the optics specification sheet and the switch data sheet to understand which models support
airflow from the I/O to the PSU (normal) and which support airflow from the PSU to I/O (reverse).

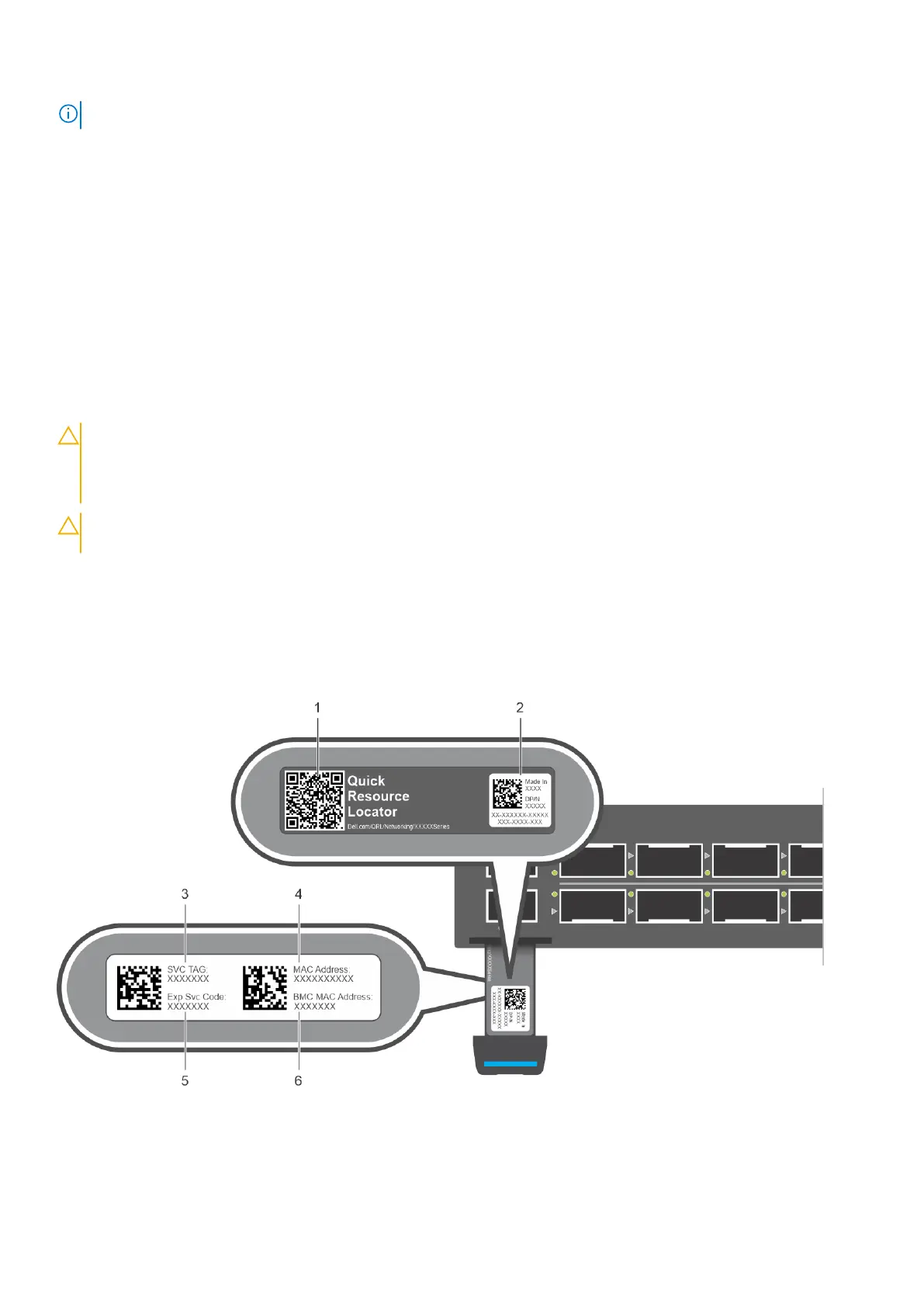

Luggage tag
The switch has a pull-out tag, which is known as a luggage tag. The front of the luggage tag includes switch ID information. The
back of the luggage tag includes a QRL that takes you to a How-To site where you can watch videos about racking the switch,
replacing components, configuring port channels, and so on.
1.
Dell EMC QRL 2. Country of origin and DP/N QRL
3. Service tag QRL 4. MAC address QRL
5. Express service tag QRL 6. BMC MAC address
The Z9432F-ON switch 11
