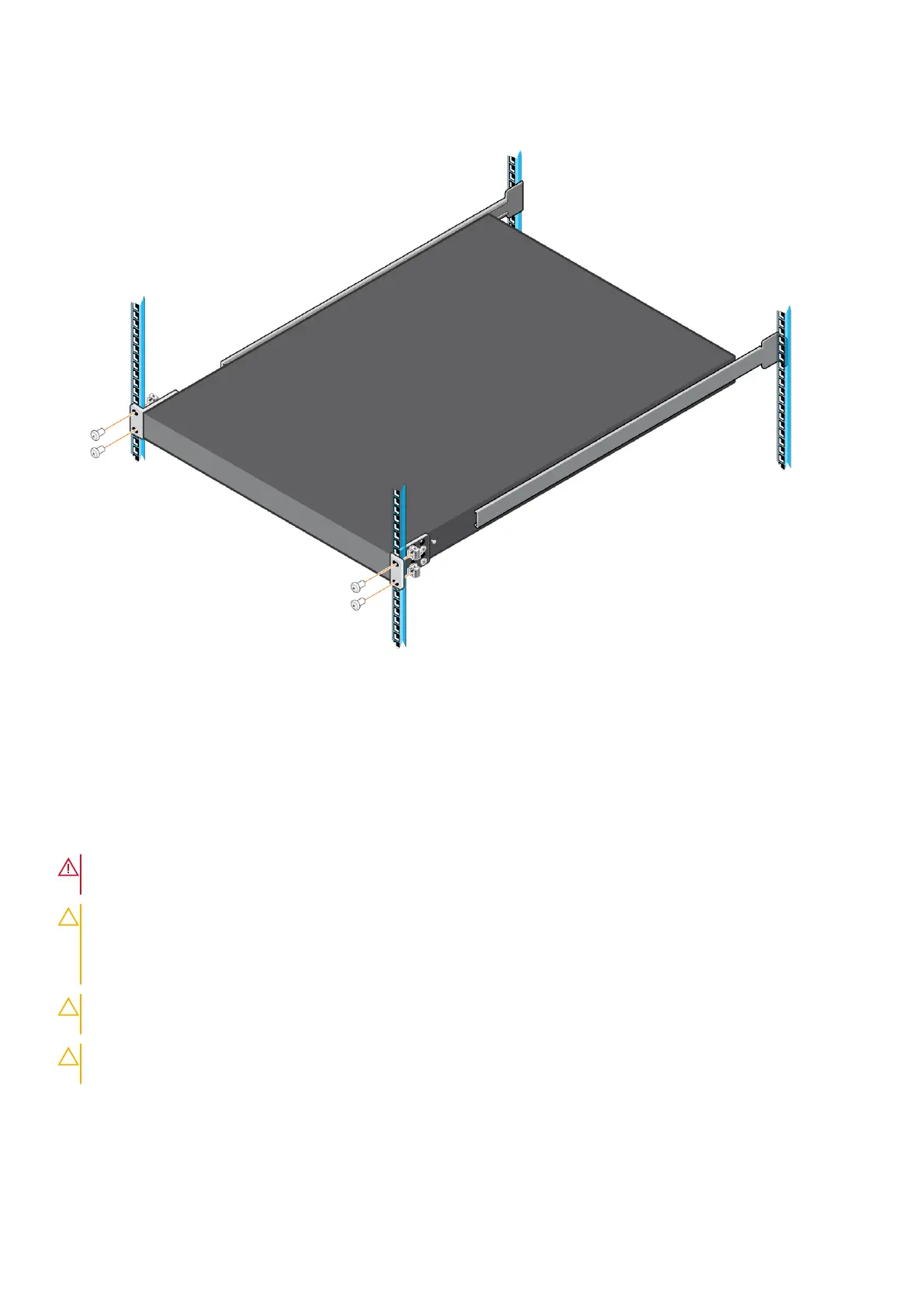

To remove the switch, remove the four screws from the L-brackets at the front of the rack and slide the switch forward.
To remove the rack rails from the rack, first remove the switch from the rack. Then remove the four outer rails screws at the
back of the rack.
Optics installation
For a list of supported optics, see the specification sheets at www.dell.com/support or contact your Dell EMC Sales
representative.
WARNING:
When working with optical fibers, follow all warning labels and always wear eye protection. Never
look directly into the end of a terminated or unterminated fiber or connector as it may cause eye damage.
CAUTION: Switches with fan airflow from the PSU to the I/O—reverse airflow—are subject to tighter
restrictions for power consumption on cables and optics that are used for 400 GbE ports. Reverse airflow
switches do not support high-power cables or optics. 400 GbE transceivers and active cables may exceed the
supported threshold.
CAUTION: To avoid damage to the switch, when you cable the ports, be sure not to interfere with the airflow
from the small vent holes above and below the ports.
CAUTION: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel
ground strap when handling the Z9432F-ON switch and components.
1. Position the optic to enter the port correctly.
The optic has a key that prevents it from being inserted incorrectly.
2. Insert the optic into the port until it gently snaps into place.
26
Z9432F-ON switch installation
