Dell EqualLogic PS6010 - Page 49

PS6010 Hardware Maintenance Maintaining Power Supply Modules
4–3

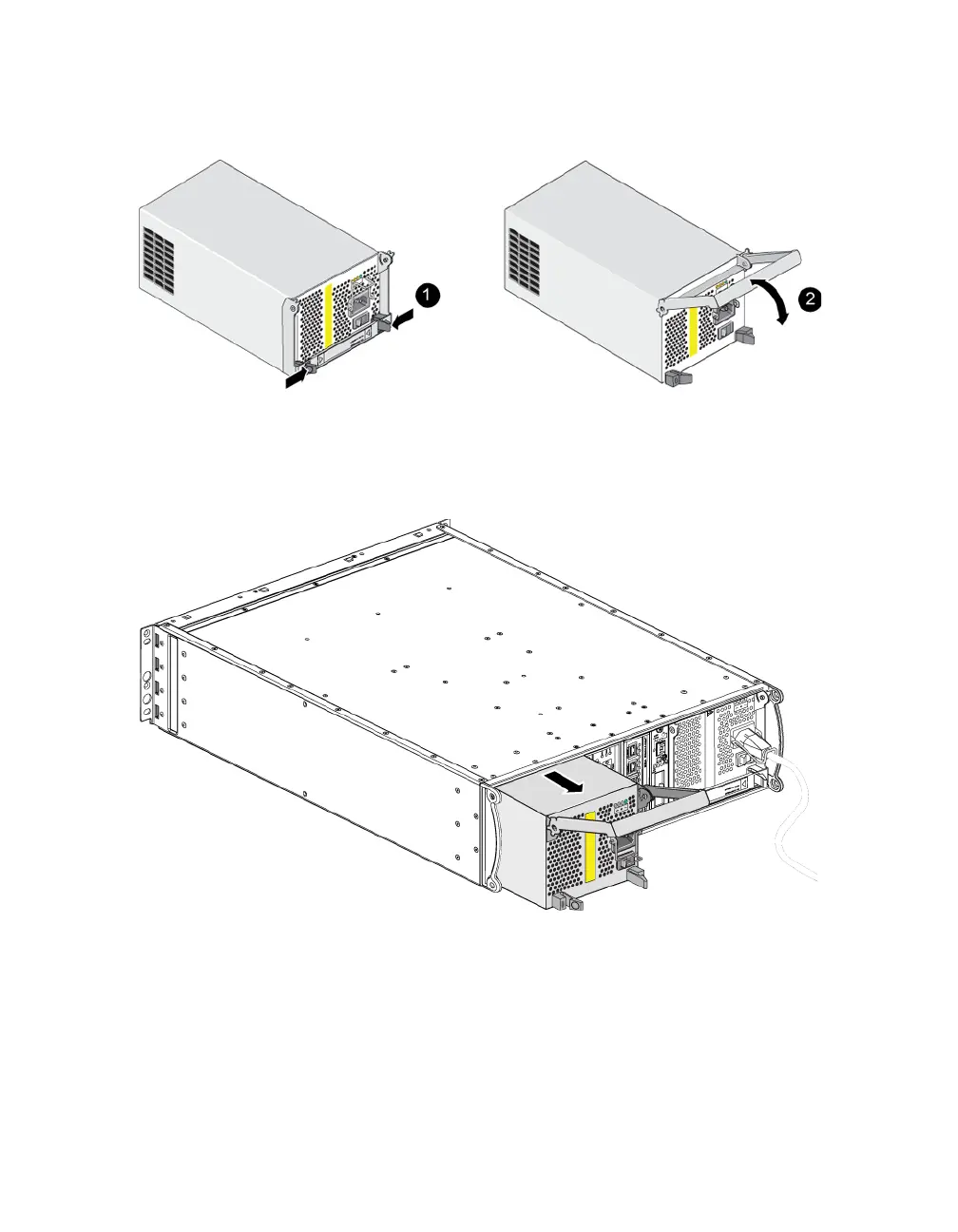

Figure 4-2: Releasing the Handle
4. Hold the handle and pull the module from the slot. See Figure 4-3.
Caution: The module is heavy; support it with two hands.
Figure 4-3: Removing a Power Supply and Cooling Module
