Dell J1FD8 - Installing Display Cable

9. Remove the display panel.
10. Remove the camera.

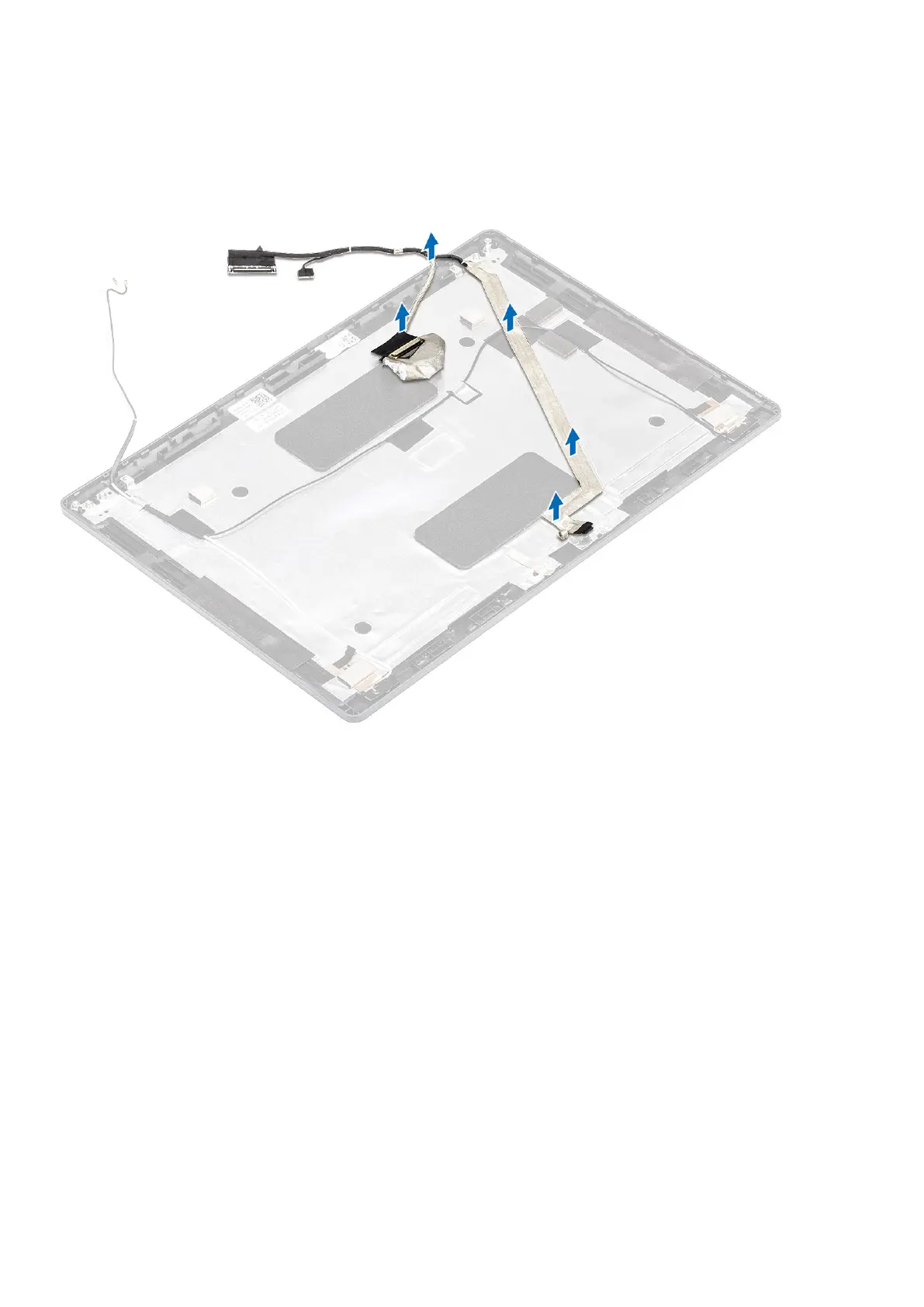

Steps
Peel the conductive tape and unroute the display cable to release it from adhesive and lift the display cable from the display
back cover.
Installing display cable
Steps
1. Adhere the display cable to the display back cover.
2. Adhere the conductive tape and route the display cable to the display back cover.
Disassembly and reassembly
111
