Dell J1FD8 - Installing the M.2 SSD

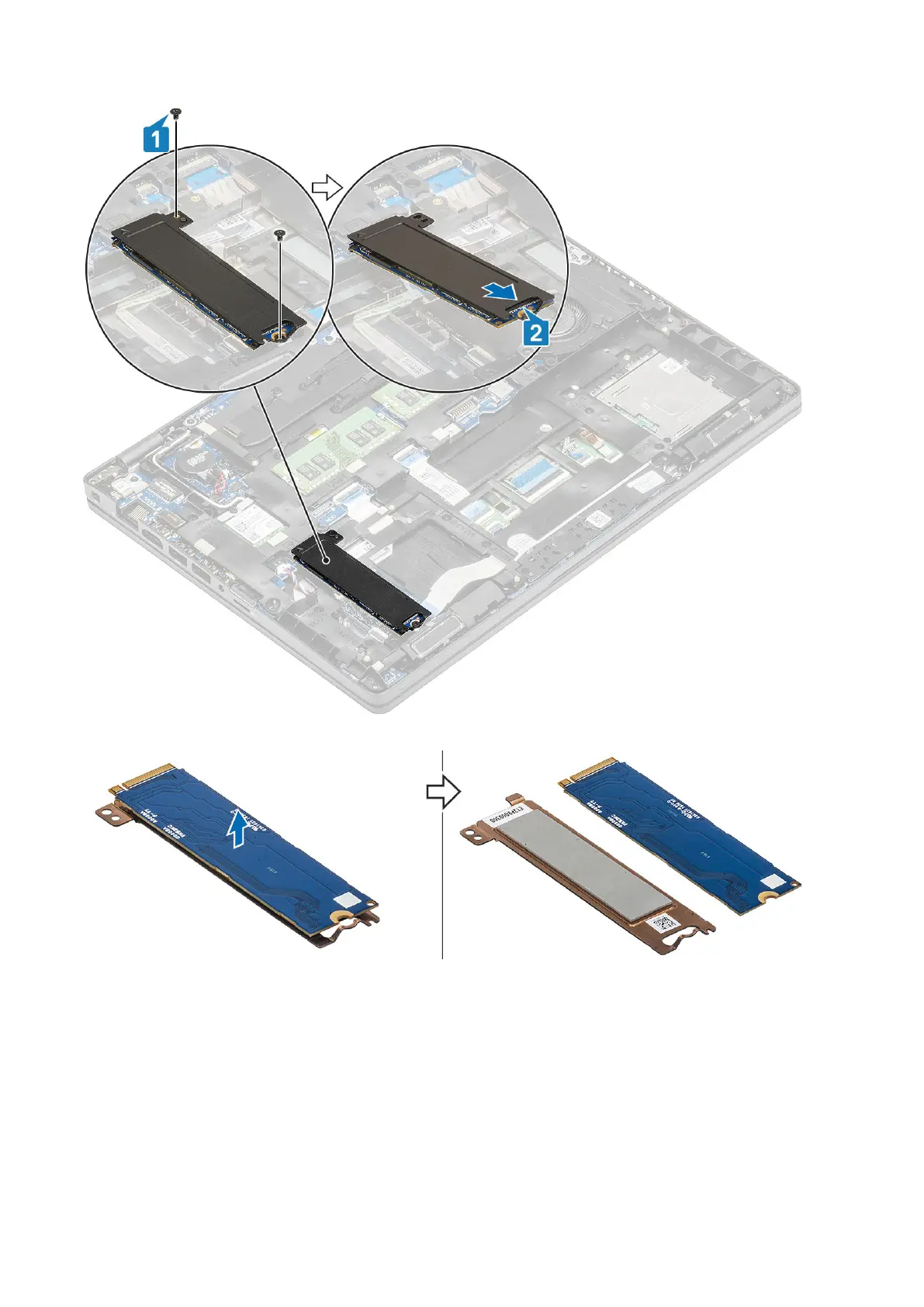

3. Remove the SSD of the SSD thermal plate.
Installing the M.2 SSD
Steps
1. Place the M.2 SSD into the slot on the palmrest [1].
2. Align and place the SSD support bracket above the M.2 SSD [2].
3. Replace the two (M2x3) screws to secure the SSD support bracket to the palmrest [3].
Disassembly and reassembly
45
