Installing the coin-cell battery
Steps

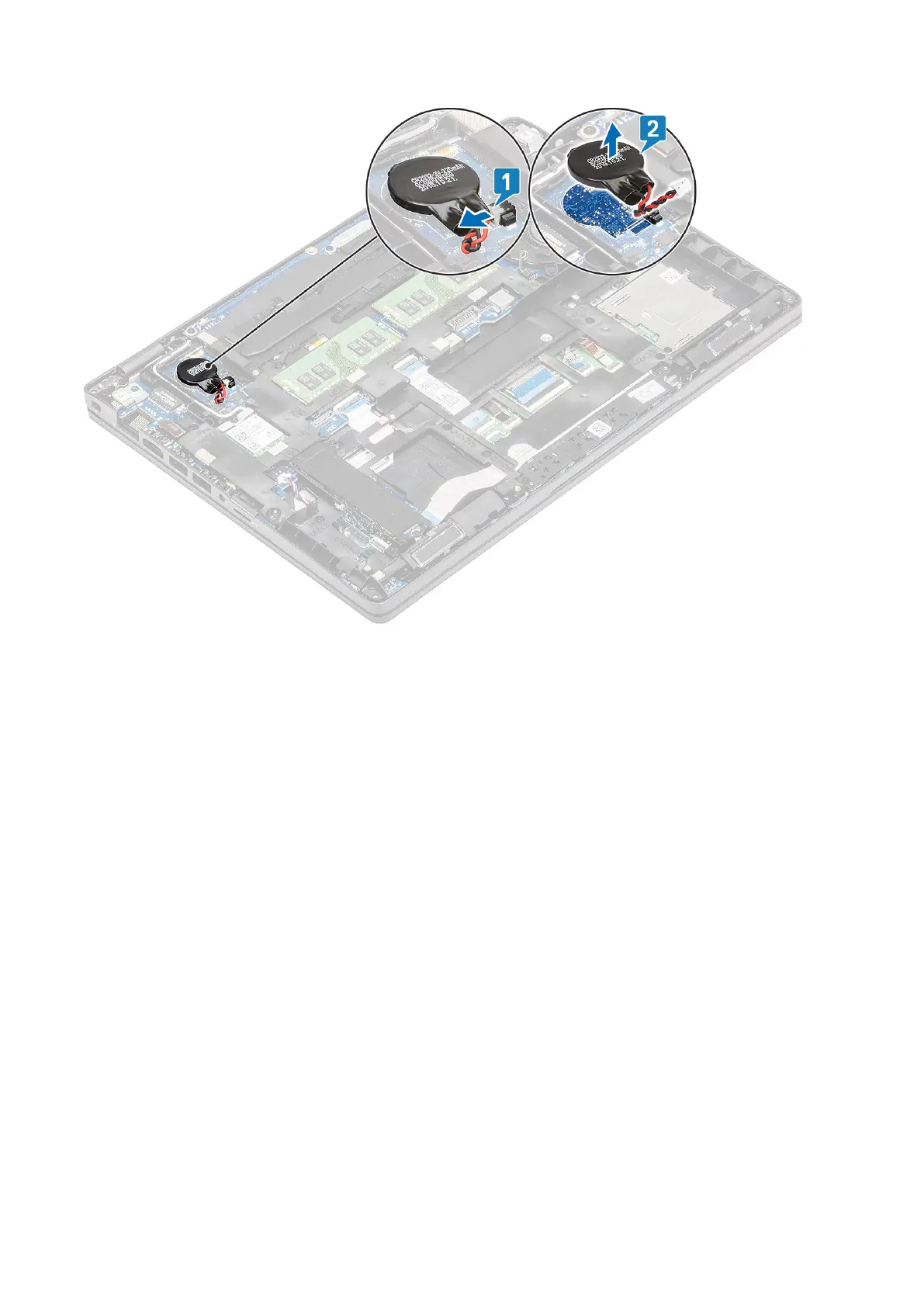

1. Place the coin cell on the system board [1].
2. Connect the coin cell battery cable to the connector on the system board [2].
36
Disassembly and reassembly
