Next steps
1. Replace the speaker.
2. Replace the battery.
3. Replace the base cover.
4. Replace the microSD card.
5. Follow the procedure in after working inside your computer.
LED board
Removing the LED board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
Steps

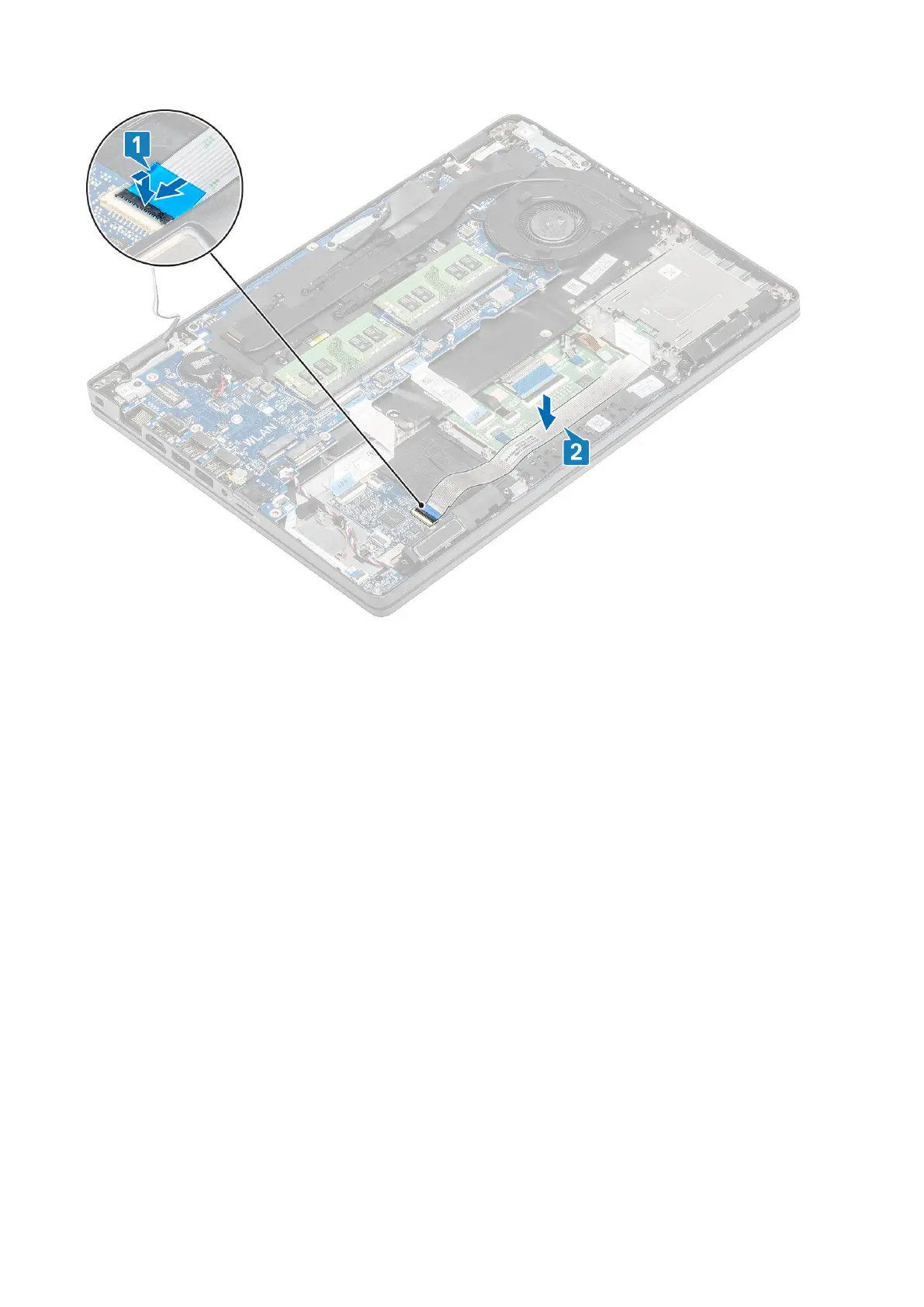

1. Disconnect the LED board cable from the connector on the system board [1].
2. Unroute the LED board cable [2].
