Installing the speakers
Steps

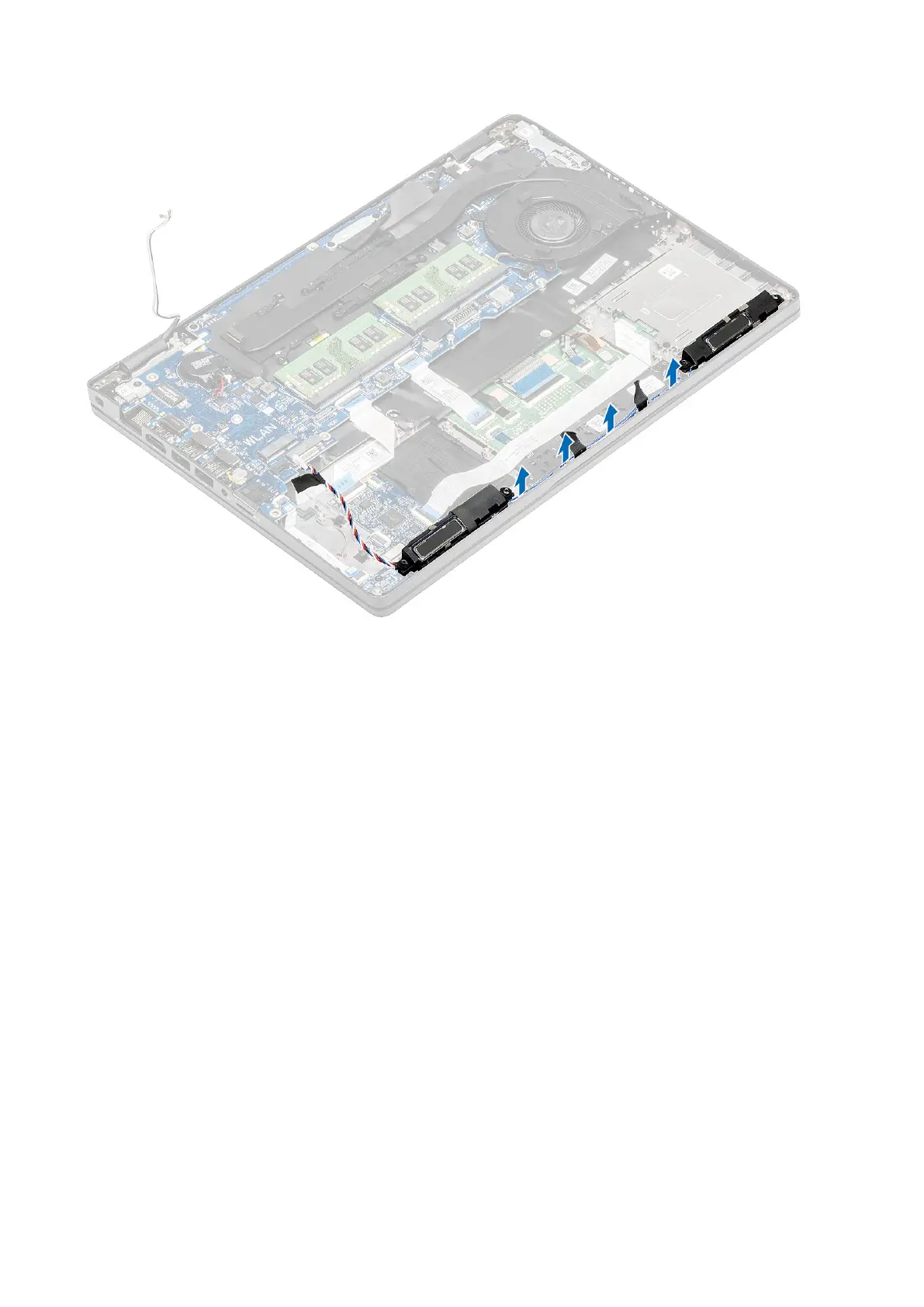

1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palmrest.
2. Route the speaker cable through the routing guides.
68
Disassembly and reassembly
