Next steps
1. Replace the inner frame.
2. Replace the WLAN card.
3. Replace the battery.
4. Replace the base cover.
5. Replace the microSD card.
6. Follow the procedure in after working inside your computer.
Touchpad buttons
Removing the touchpad button board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the speaker.
Steps

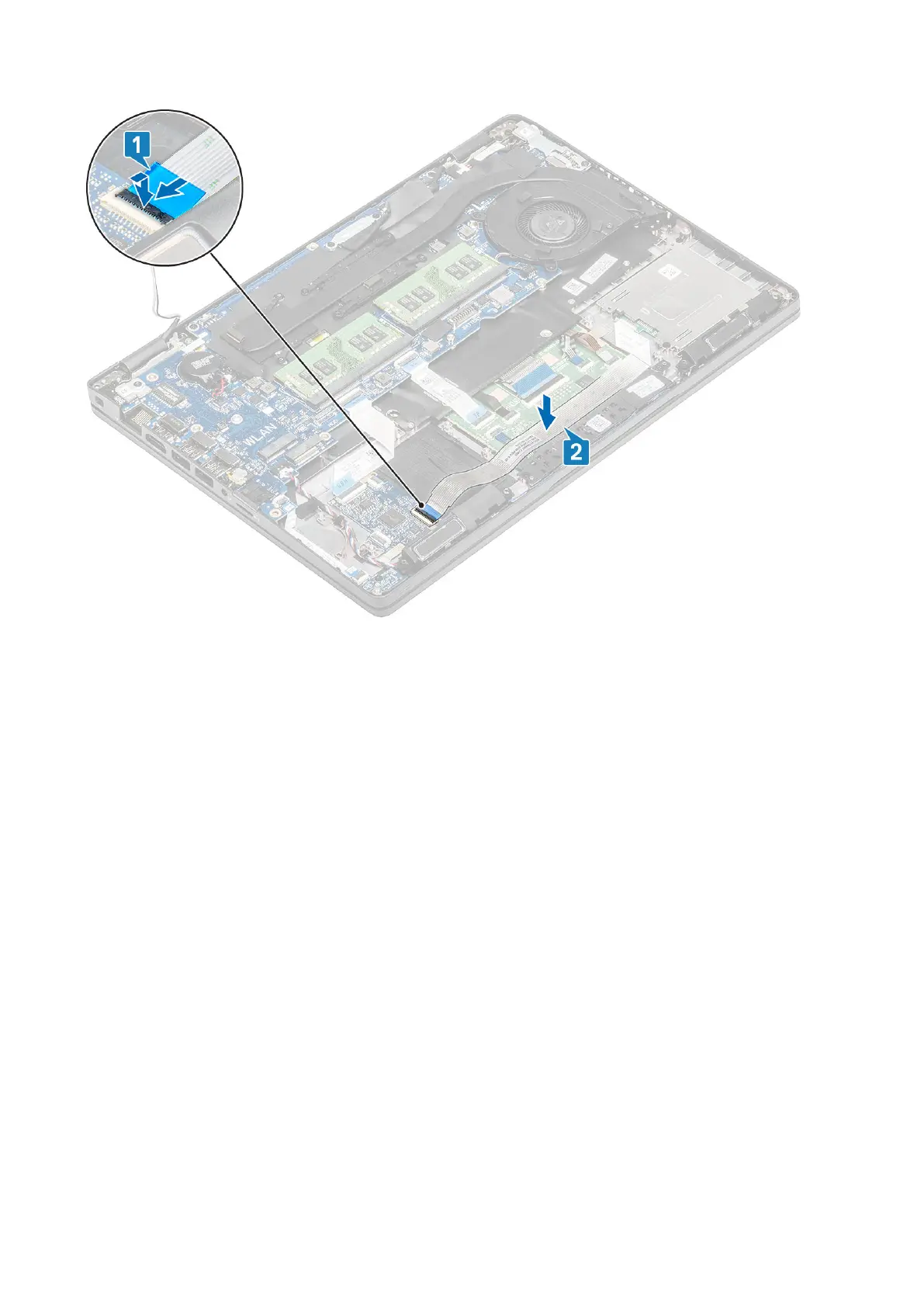

1. Open the latch and disconnect the smartcard reader Flexible Flat Cable (FFC) from the USH board [1].
2. Peel the smartcard reader FFC of the palmrest [2].
56
Disassembly and reassembly
