Installing the heatsink assembly
Steps

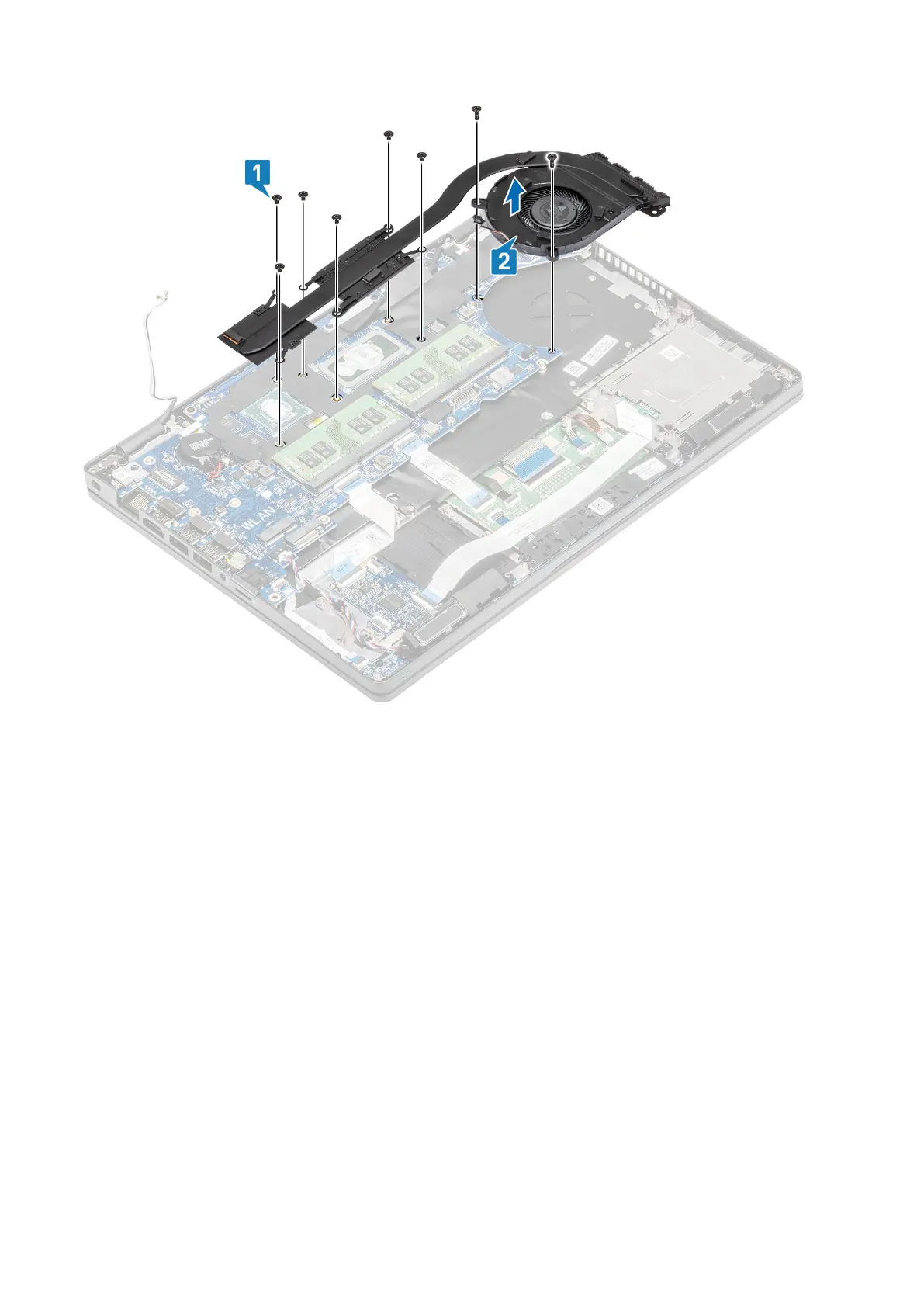

1. Place the heatsink assembly on the system board and align the screw holes on the heatsink with the screw holes on the
system board [1].
2. Replace the two (M2x3) screws that secure the fan section of the heatsink assembly to the system board.
3. In sequential order (as indicated on the heatsink), tighten the six (M2x3) screws that secure the heatsink assembly to the
system board [2].
