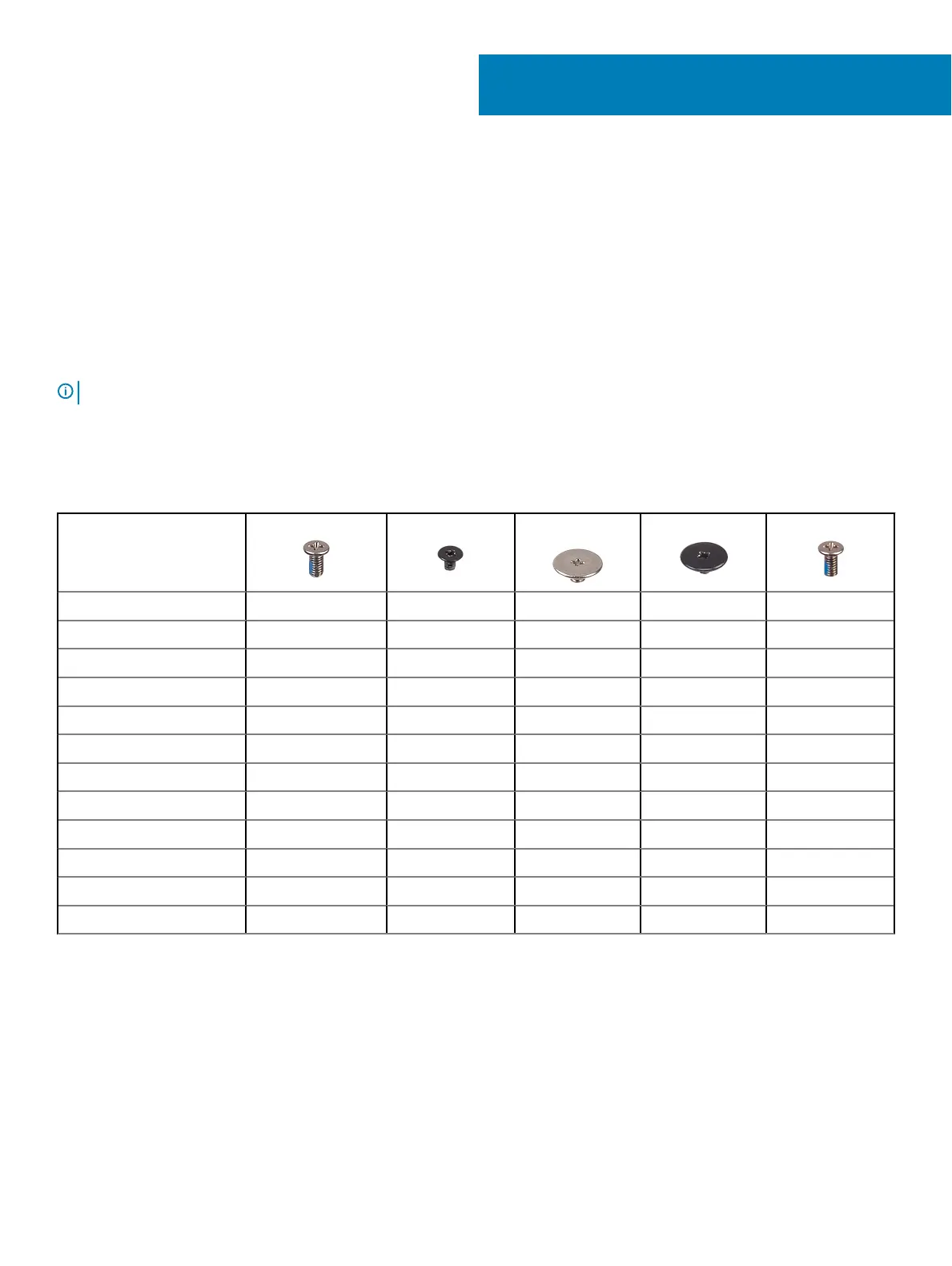

Disassembly and reassembly
Recommended tools
The procedures in this document require the following tools:
Phillips #0 screwdriver
Phillips #1 screwdriver
Plastic scribe
NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4
Screw size list
Table 1. Screw size list
Component
M2.5x7
M2x3
M2.5x2.5 Big
Head
M2X2 Big Head
M2.5x5
Base cover 7
Battery 3
System board 5
M.2 SSD card 1
Power switch board 2
Audio board 1
Power connector port 2
Touchpad 1 6
Display cable bracket 2
IO bracket 2
WLAN 1
Display assembly 6
Base cover
Removing base cover
1 Follow the procedure in Before working inside your computer.
2 To remove the base cover:
a Loosen the 7 M2.5x7 captive screws that secure the base cover to the computer [1] .
2
10 Disassembly and reassembly
