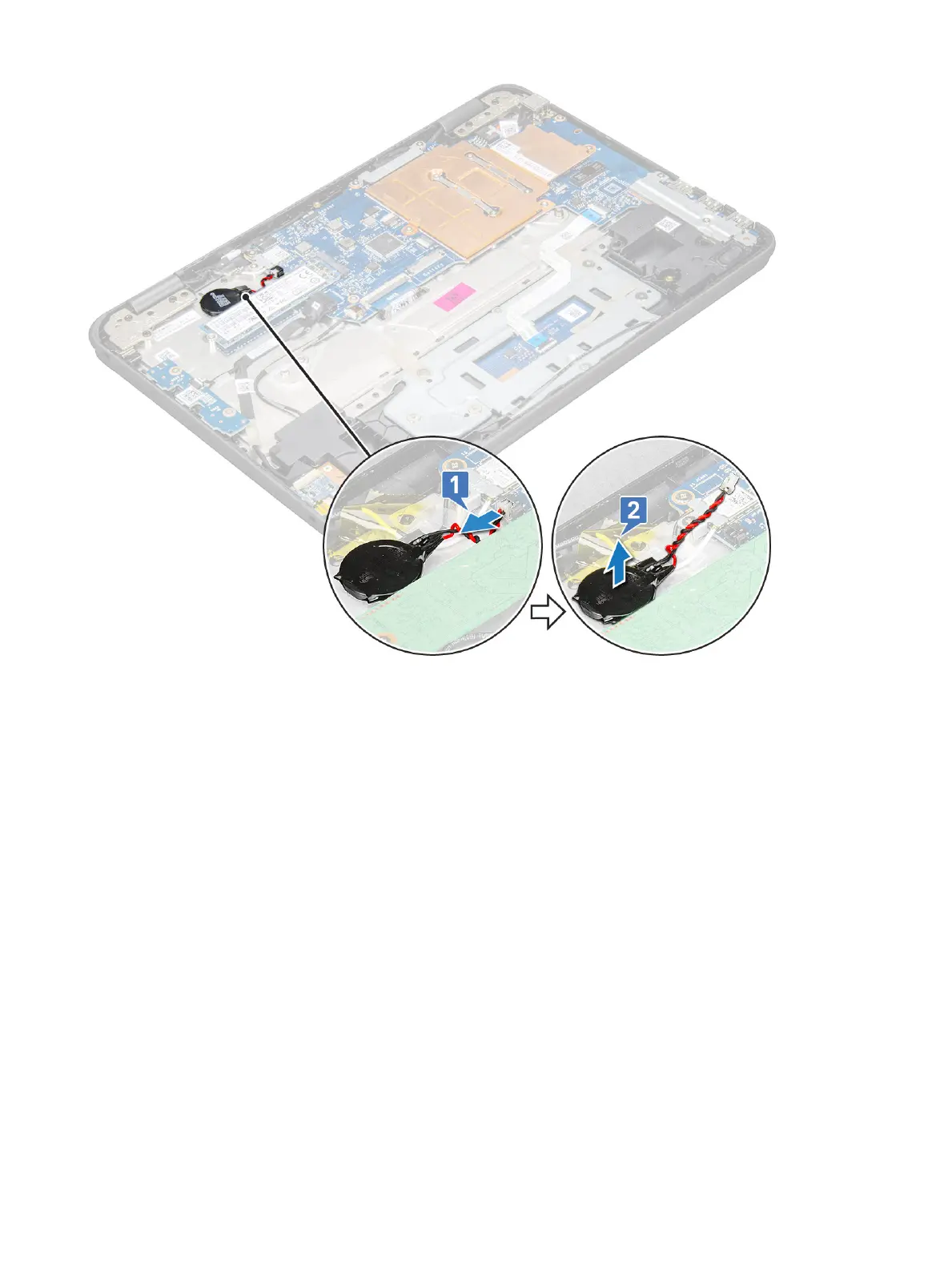

b Pry the coin cell battery to release it from the adhesive and lift it from the computer [2].

Installing coin cell battery

1 Place the coin cell battery into the slot on the computer.

2 Connect the coin cell battery cable to the connector on the system board.

3 Install the:

a battery

b base cover

4 Follow the procedure in After working inside your computer.

Speaker

Removing speakers

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a base cover

b battery

3 To remove the speaker:

a Disconnect the speaker cable from the connector on the system board [1].

Disassembly and reassembly
